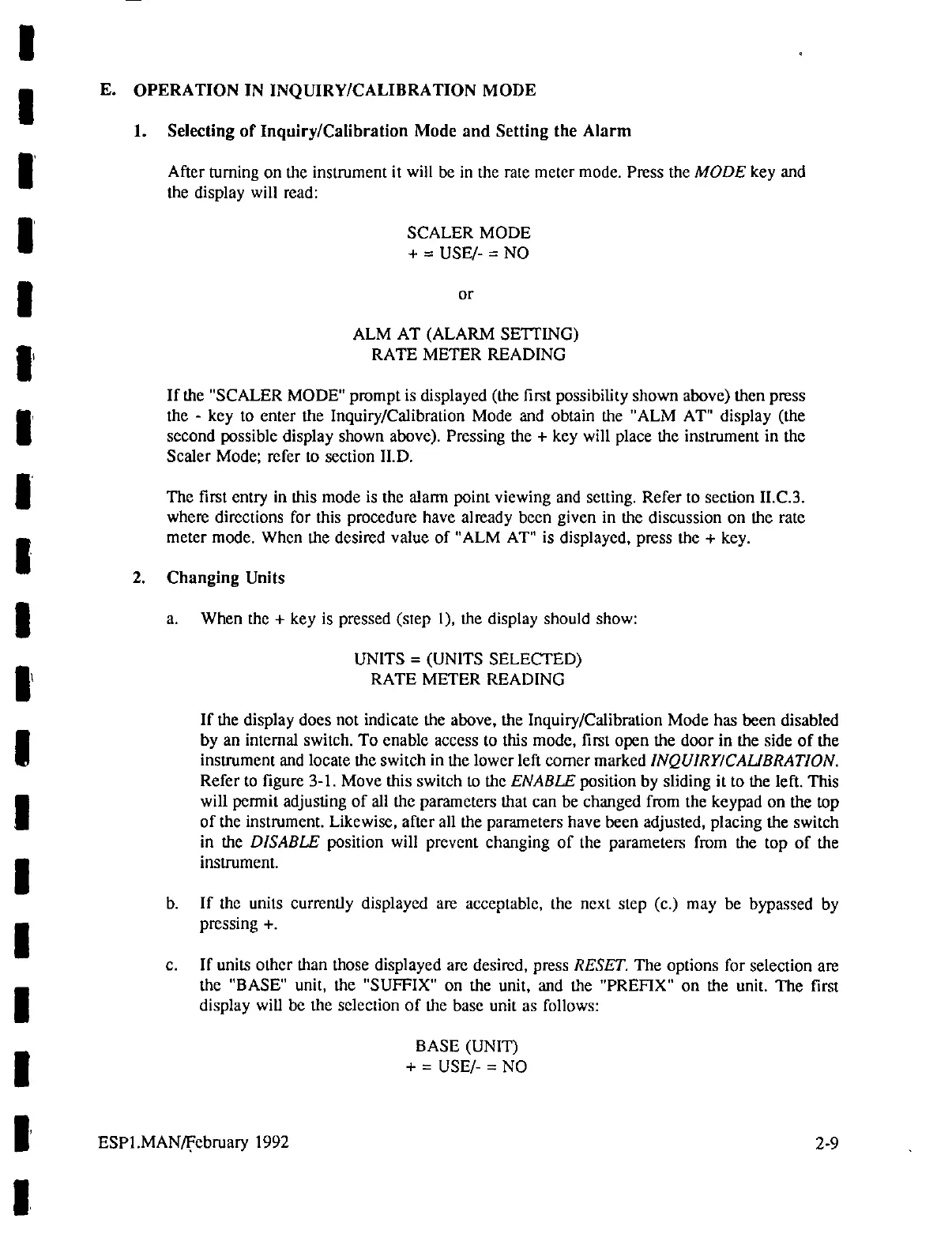

E.

OPERATION

IN

INQUIRY/CALIBRATION

MODE

1.

Selecting

of

Inquiry/Calibration

Mode

and

Setting

the

Alarm

After

turning

on

the

instrument

it

will

be

in

the

rate

meter

mode.

Press

the

MODE

key

and

the

display

will

read:

SCALER

MODE

+

=

USE/-

=

NO

or

ALM

AT

(ALARM

SETTING)

RATE

METER

READING

If

the

"SCALER

MODE"

prompt

is

displayed

(the

first

possibility

shown

above)

then

press

the

-

key

to

enter

the

Inquiry/Calibration

Mode

and

obtain

the

"ALM

AT"

display

(the

second

possible

display

shown

above).

Pressing

the

+

key

will

place

the

instrument

in

the

Scaler

Mode;

refer

to

section

П.Р.

The

first

entry

in

this

mode

is

the

alarm

point

viewing

and

setting.

Refer

to

section

ILC.3.

where

directions

for

this

procedure

have

already

been

given

in

the

discussion

on

the

rate

meter

mode.

When

the

desired

value

of

"ALM

AT"

is

displayed,

press

the

+

key.

2.

Changing

Units

a.

When

the

+

key

is

pressed

(step

1),

the

display

should

show:

UNITS

=

(UNITS

SELECTED)

RATE

METER

READING

If

the

display

does

not

indicate

the

above,

the

Inquiry/Calibration

Mode

has

been

disabled

by

an

internal

switch.

To

enable

access

to

this

mode,

first

open

the

door

in

the

side

of

the

instrument

and

locate

the

switch

in

the

lower

left

comer

marked

INQUIRY/CALIBRATION.

Refer

to

figure

3-1.

Move

this

switch

to

the

ENABLE

position

by

sliding

it

to

the

left.

This

will

permit

adjusting

of

all

the

parameters

that

can

be

changed

from

the

keypad

on

the

top

of

the

instrument.

Likewise,

after

all

the

parameters

have been

adjusted,

placing

the

switch

in

the

DISABLE

position

will

prevent

changing

of

the

parameters

from

the

top

of

the

instrument.

b.

If

the

units

currently

displayed

are

acceptable,

the

next

step

(c.)

may

be

bypassed

by

pressing

4.

ο.

If

units

other

than

those

displayed

are

desired,

press

RESET.

The

options

for

selection

are

the

"BASE"

unit,

the

"SUFFIX"

on

the

unit,

and

the

"PREFIX"

on

the

unit.

The

first

display

will

be

the

selection

of

the

base

unit

as

follows:

BASE

(UNIT)

+

=

USE/-

=

NO

ESP1.MAN/February

1992

2-9
