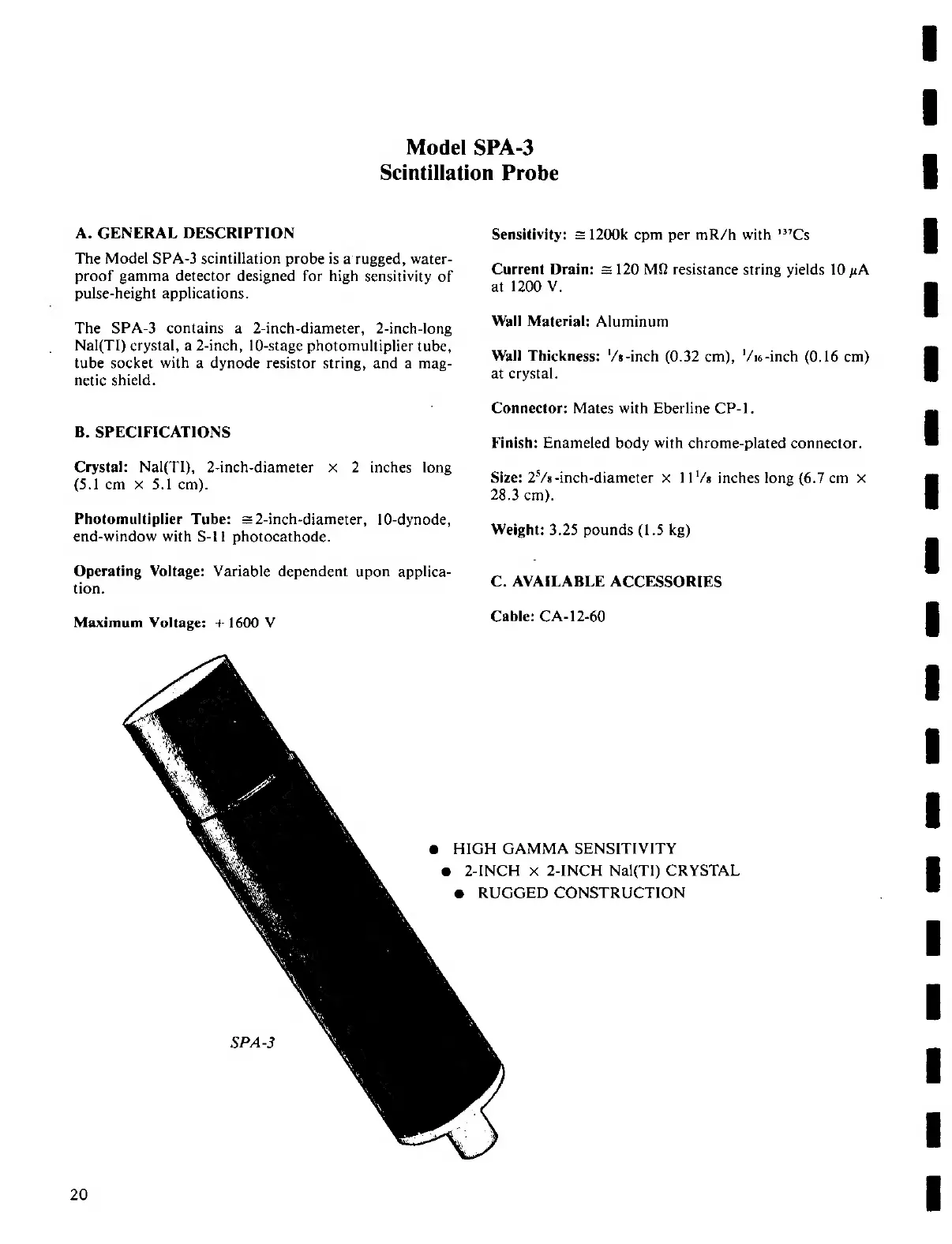

Model SPA-3
Scintillation Probe
A. GENERAL DESCRIPTION
The Model SPA-3 scintillation probe is a rugged, water-
proof gamma detector designed for high sensitivity of
pulse-height applications.
The SPA-3 contains a 2-inch-diameter, 2-inch-long
Nal(TI) crystal, a 2-inch, 10-stage photomultiplier tube,
tube socket with a dynode resistor string, and a mag-
netic shield.
B. SPECIFICATIONS
Crystal: Nal(TI) 2-inch-diameter x 2 inches long
(5.1 cm x 5.1 cm).
Photomultiplier Tube: =2-inch-diameter, 10-dynode,
end-window with S-11 photocathode.
Operating Voltage: Variable dependent upon applica-
tion.
Maximum Voltage: + 1600 V
20
Sensitivity: =1200k cpm per mR/h with '*Cs
Current Drain: = 120 MQ resistance string yields 10 дА
at 1200 V.
Wall Material: Aluminum
Wall Thickness: '/s-inch (0.32 cm), "16-inch (0.16 cm)
at crystal.
Connector: Mates with Eberline CP-1.
Finish: Enameled body with chrome-plated connector.
Size: 25/3 -inch-diameter x 11'/s inches long (6.7 cm х
28.3 cm).
Weight: 3.25 pounds (1.5 kg)
C. AVAILABLE ACCESSORIES
Cable: CA-12-60
€ HIGH GAMMA SENSITIVITY
€ 2-INCH x 2-INCH Nal(TI) CRYSTAL
€ RUGGED CONSTRUCTION
