M3G084 / M3G112 Disassembly instructions
Document no.: - • Change: 01 • Release date: 2019-02-12 • (VM-POK) • Page 4/7
ebm-papst Mulfingen GmbH & Co. KG • Bachmühle 2 • 74673 Mulfingen • Germany
Phone +49 7938 81-0 • Fax +49 7938 81-110 • info1@de.ebmpapst.com • www.ebmpapst.com

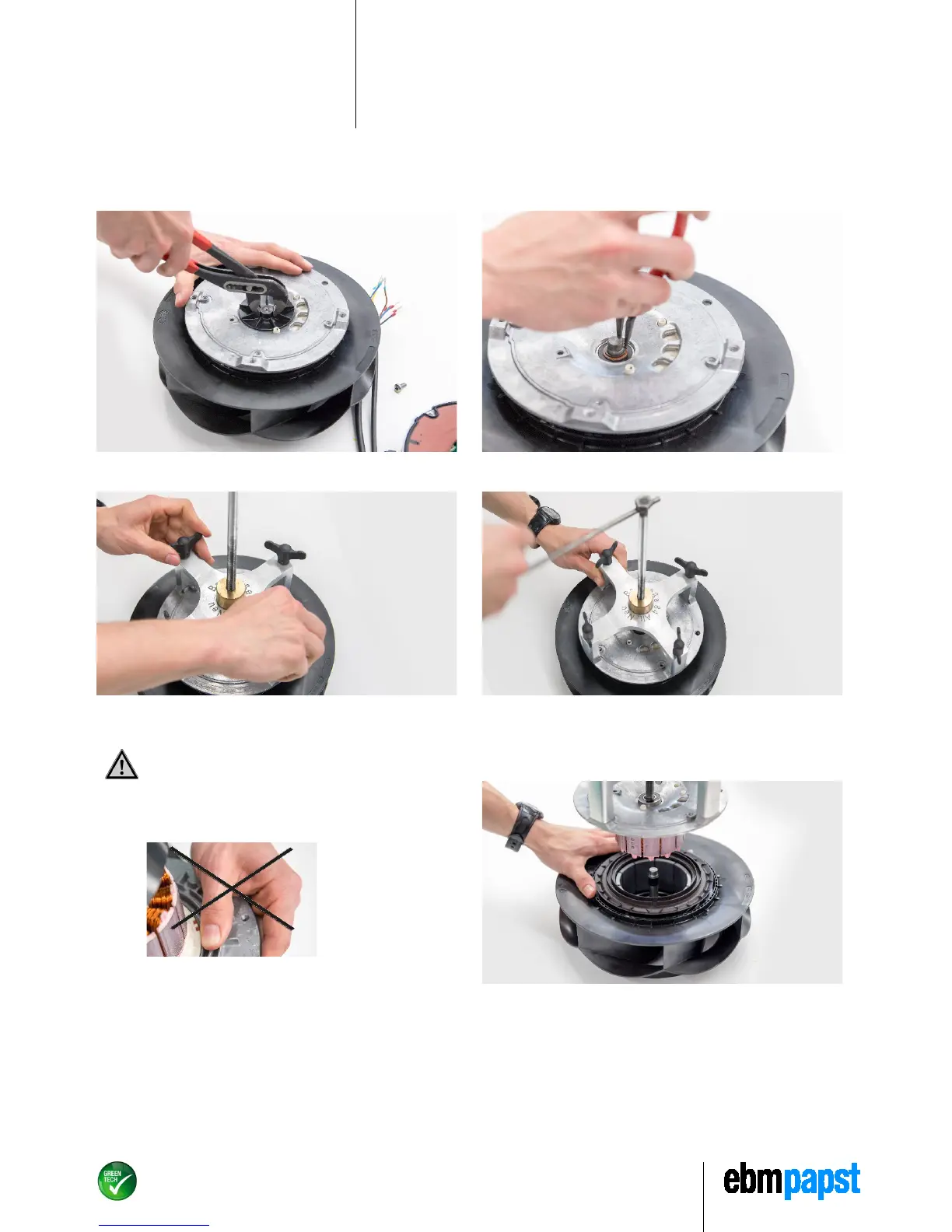

3.2. Opening the motor
10. Use water pump pliers to detach the small fan impeller.
11. Use circlip pliers to detach the circlip.
12. Fit the puller and screw it in position at all four tapped holes in the stator.
13. Unfasten the stator by turning the spindle of the puller in clockwise
Strong magnetic attraction.
Risk of injury.
→ Do not reach into the area between the stator and rotor.
14. Lift out the stator with the puller. Then remove the puller again.
