M3G150 / 200 Disassembly instructions
Document No.: - • Change: 01 • Release date: 2019-02-12 • (VM-POK) • Page 5/9
ebm-papst Mulfingen GmbH & Co. KG • Bachmühle 2 • 74673 Mulfingen • Germany
Phone +49 7938 81-0 • Fax +49 7938 81-110 • info1@de.ebmpapst.com • www.ebmpapst.com

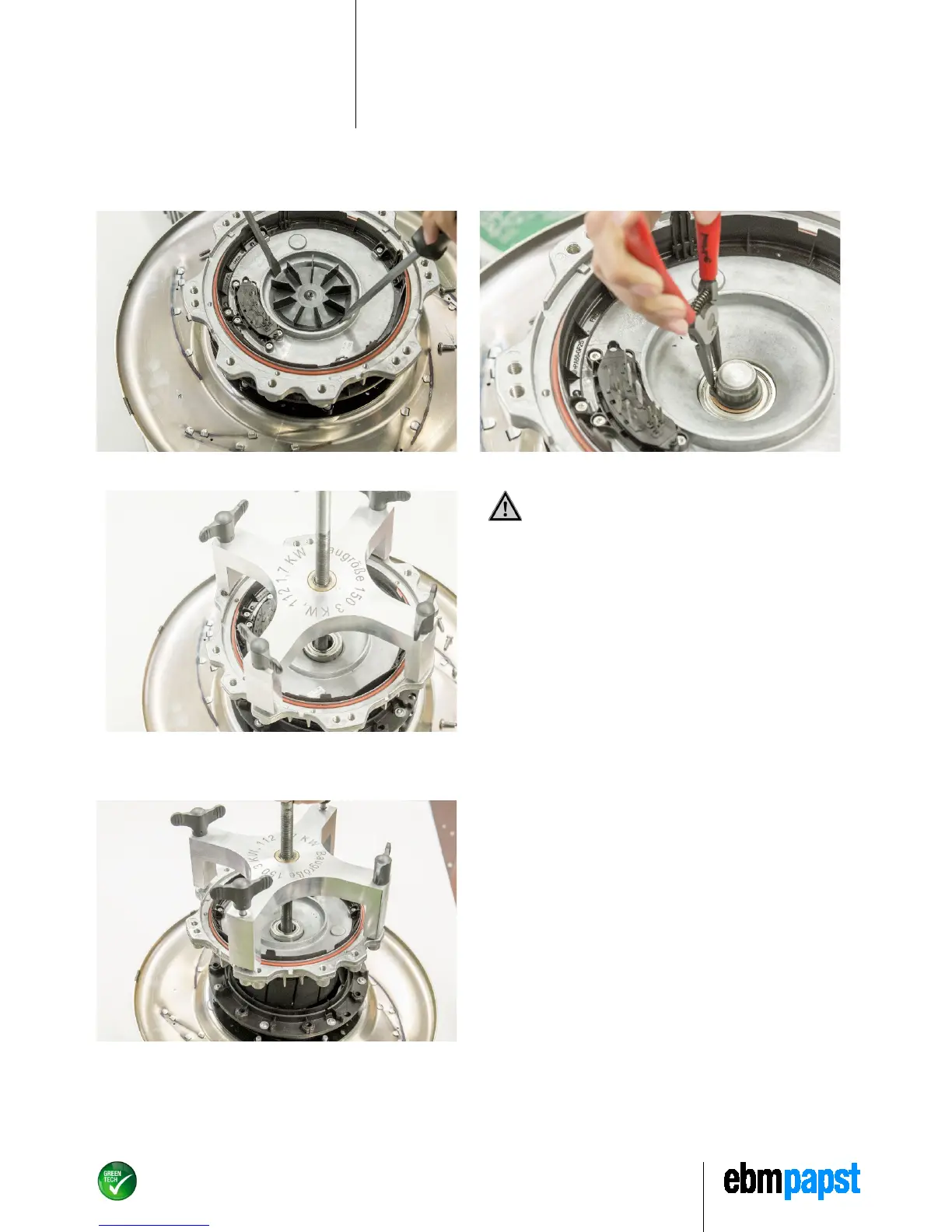

3.3. Opening the motor
16.
Use two screwdrivers to prise out the fan impeller.
17. Use circlip pliers to detach the circlip.
WARNING
Strong magnetic attraction.
Risk of injury.
→ Do not reach into the area between the stator
and rotor.
18. Fit the puller and screw it in position at all four tapped holes in the stator.
Unfasten the stator by turning the spindle of the puller in clockwise
direction.
19. Take out the stator.
