M3G150 / 200 Disassembly instructions
Document No.: - • Change: 01 • Release date: 2019-02-12 • (VM-POK) • Page 6/9
ebm-papst Mulfingen GmbH & Co. KG • Bachmühle 2 • 74673 Mulfingen • Germany
Phone +49 7938 81-0 • Fax +49 7938 81-110 • info1@de.ebmpapst.com • www.ebmpapst.com

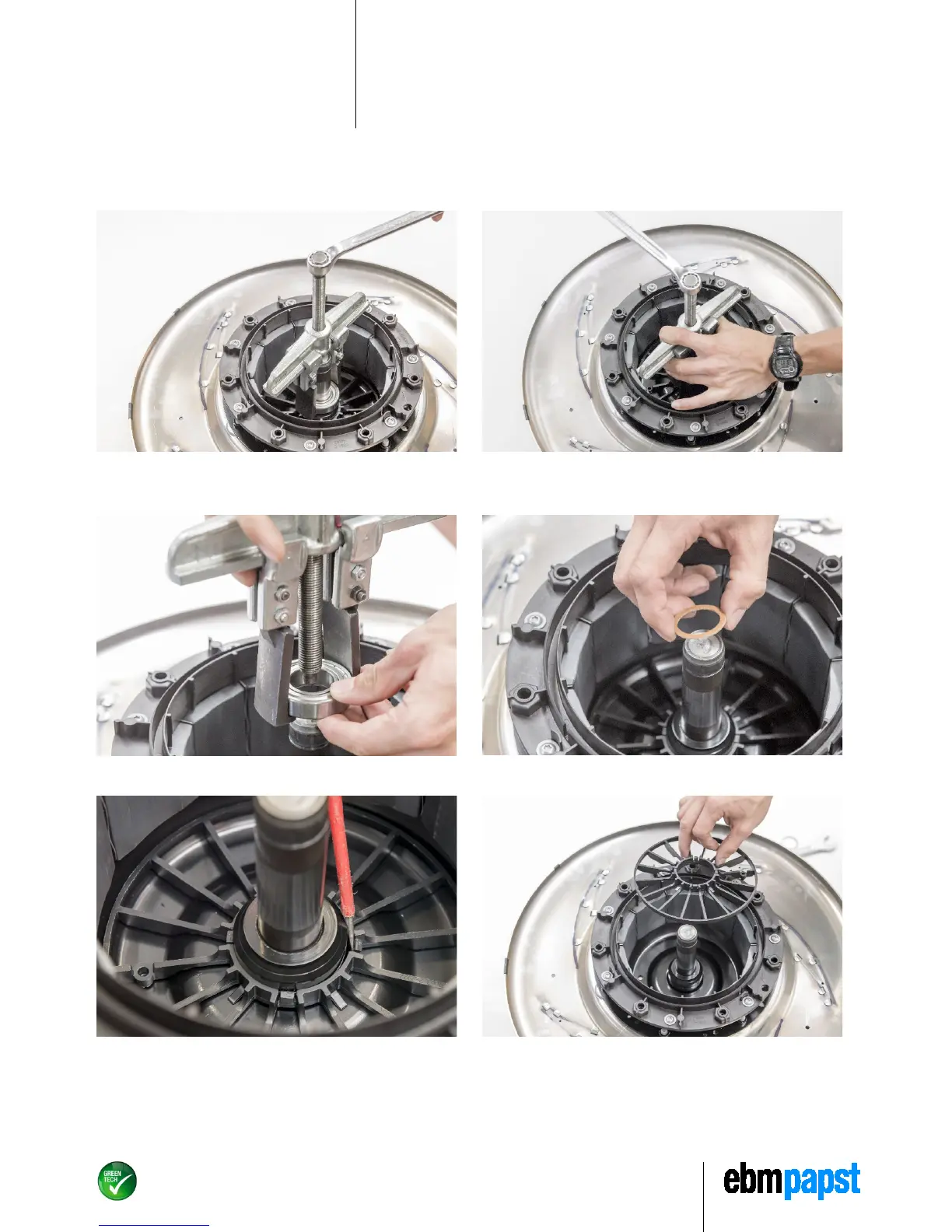

3.4. Removing the ball bearing
20. Position the puller in the center.
21. Unfasten the ball bearing by turning the spindle of the puller in clockwise
direction.
22. Take the ball bearing out of the puller and out of the rotor bell.
23. Take out the ring.
24. Use a screwdriver to unfasten the locking elements (lugs) at the cooling
wheel.
25. Take out the cooling wheel.
