M3G150 / 200 Disassembly instructions
Document No.: - • Change: 01 • Release date: 2019-02-12 • (VM-POK) • Page 8/9
ebm-papst Mulfingen GmbH & Co. KG • Bachmühle 2 • 74673 Mulfingen • Germany
Phone +49 7938 81-0 • Fax +49 7938 81-110 • info1@de.ebmpapst.com • www.ebmpapst.com

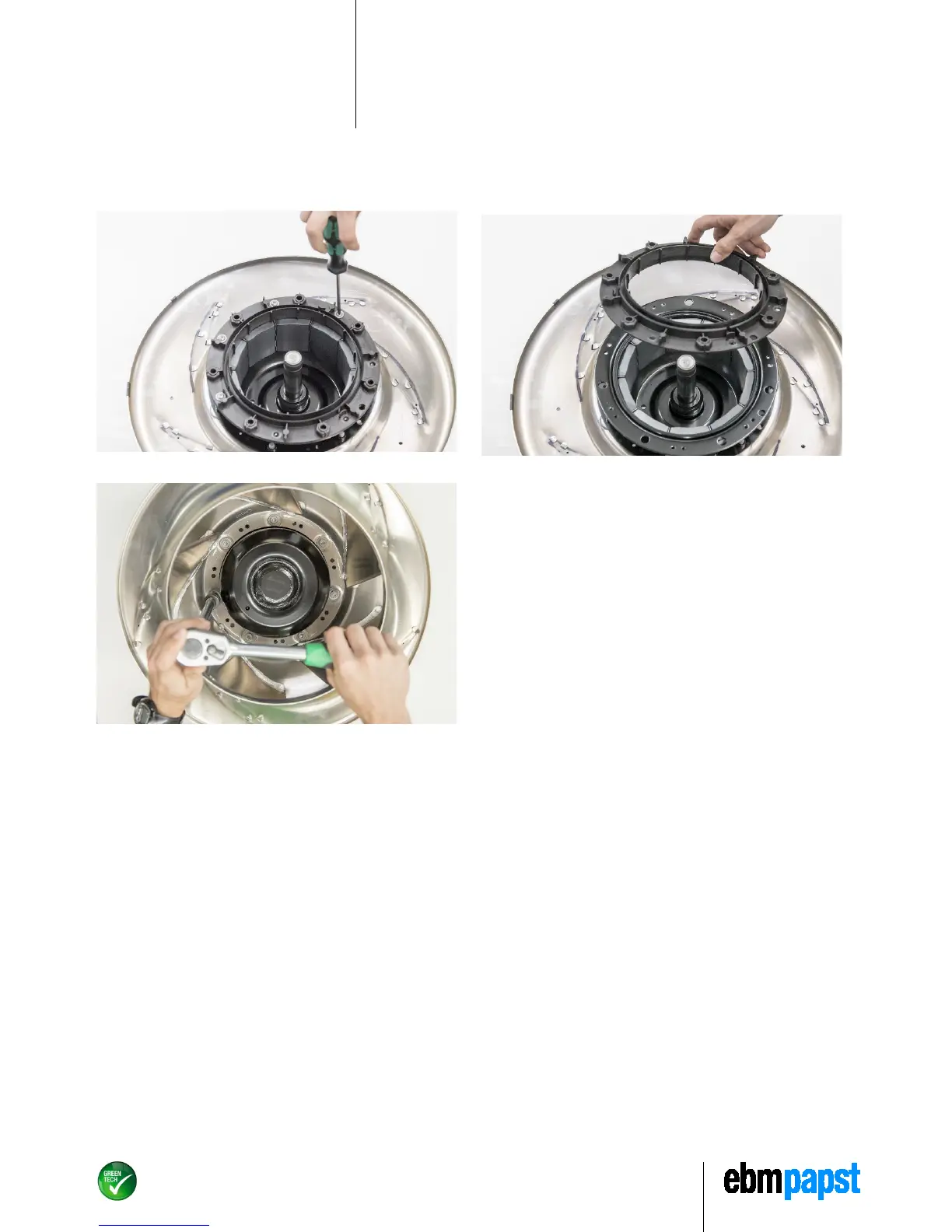

3.5. Separating the rotor from the fan impeller
32. Use a screwdriver to unfasten the seven screws.
33. Detach the plastic ring.
34. Use a ratchet to unfasten the seven screws and detach the fan impeller.
