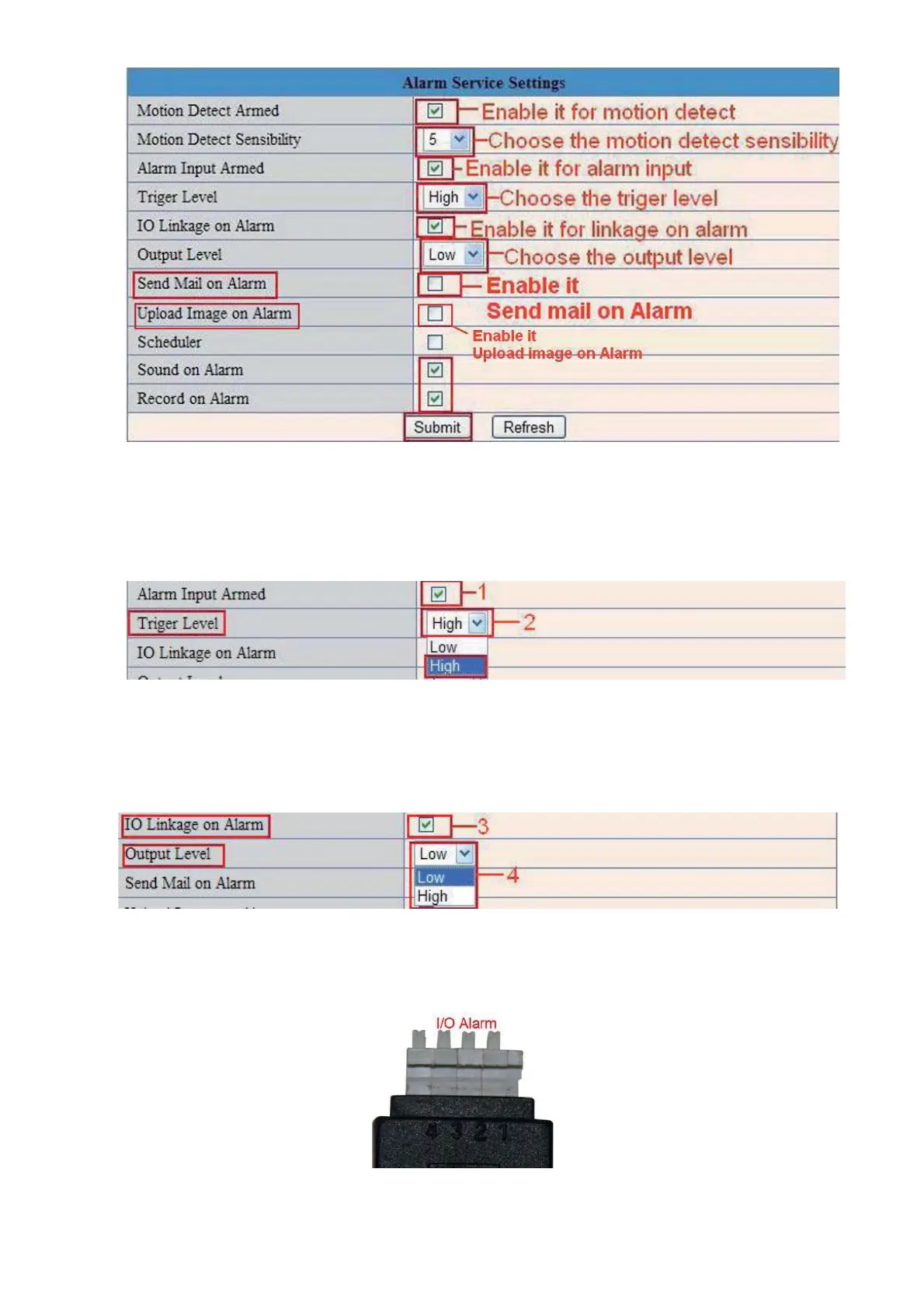

There are two options for Trigger Level. (Figure 10.1).
High: When the external alarm device is close, then the alarm is triggered.
Low: When the external alarm device is switching off, then the alarm is triggered.
Figure 10.1
There are two options for Output Level. (Figure 10.2).
High: When chosen, the IO Pins work as a switch that is closed.
Low: When chosen, the IO Pins work as a switch that is switching off.
Figure 10.2
3.18.4 IO Pins for IO Alarm Linkage
Figure 10.3
