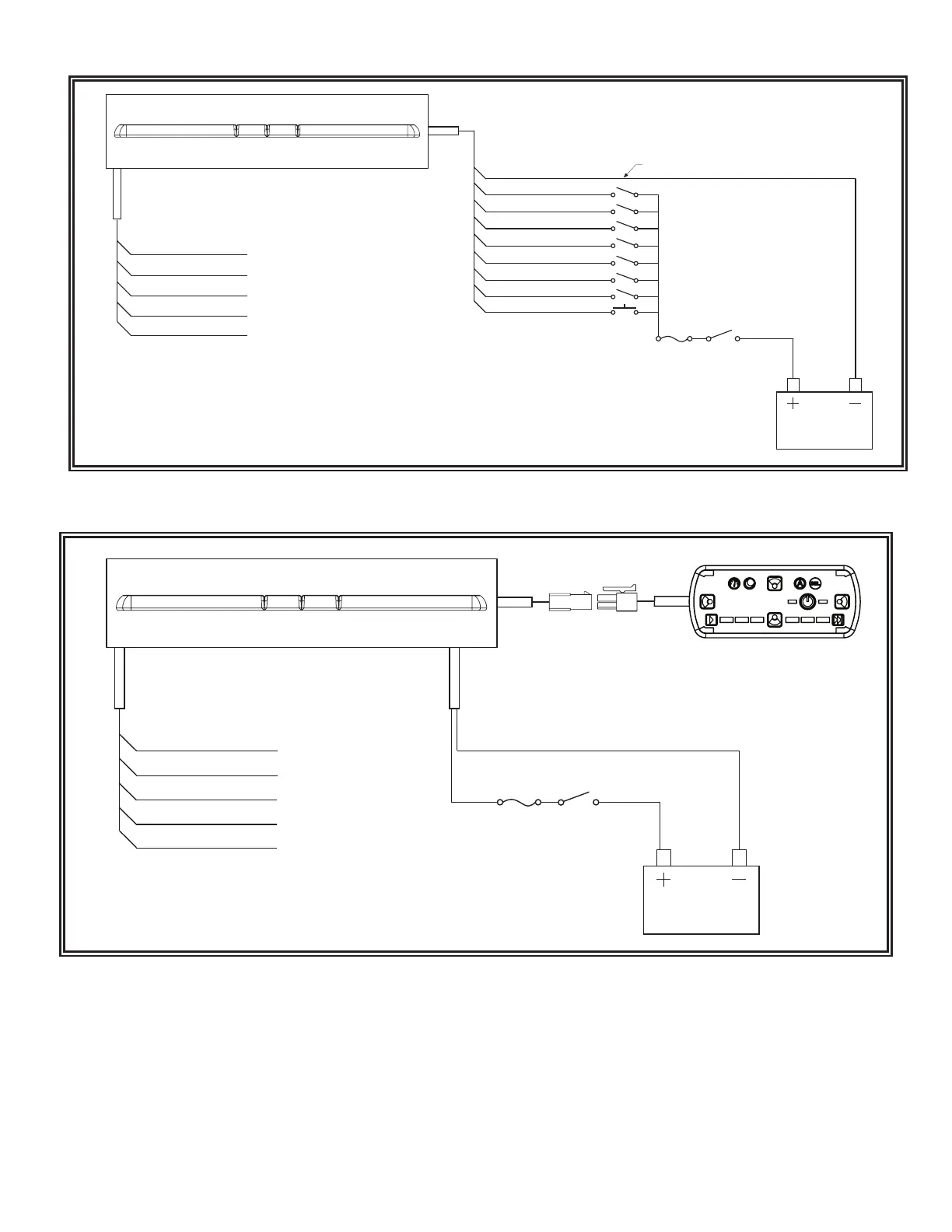

Ecco Pro Vantage 12+ Series - Page 5

NOTE: GREEN AND YELLOW
WIRE FUNCTIONS ARE
SWAPPED IN LIGHTBARS WITH
PASSENGER SIDE CABLE EXIT.
USE THE RED WIRE IN 3-WIRE
SYSTEMS ONLY.
IGNITION
SWITCH
STTs OPTIONAL
Optional Stop/Tail/Turn
(STT) Cable
BROWN (TAIL)
YELLOW (LEFT TURN)
GREEN (RIGHT TURN)
RED (STOP)
WHITE (STT GROUND)
YELLOW (ALLEY LEFT)
GREEN (ALLEY RIGHT)
GREY (ARROWSTICK LEFT)
WHITE (ARROWSTICK RIGHT)
BLUE (WORKLIGHTS/TAKEDOWNS)
VIOLET (PROGRAM PATTERNS)
BROWN (PATTERN 1)
ORANGE (PATTERN 2)
BLACK (GROUND)
Combined
power/signal cable
Combined
power/signal cable
NOTE: Combine Brown and
Orange wires for Pattern 3
*Brown + Orange = Pattern 3
12+ Pro Vantage™ Lightbar
NOTE: See fuse recommendations
on page 1
COMBINED POWER/SIGNAL CABLE
Page 5 of 14
NOTE: GREEN AND YELLOW
WIRE FUNCTIONS ARE
SWAPPED IN LIGHTBARS WITH
PASSENGER SIDE CABLE EXIT.
USE THE RED WIRE IN 3-WIRE
SYSTEMS ONLY.
IGNITION
SWITCH
12+ Pro Vantage™ Lightbar
STTs OPTIONAL
Optional Stop/Tail/Turn
(STT) Cable
BROWN (TAIL)
YELLOW (LEFT TURN)
GREEN (RIGHT TURN)
RED (STOP)
WHITE (STT GROUND)
BLACK
RED
4-Pin Cable
Power/Ground Cable
See Fuse
Recommendation on
Page 1
ADVANCED CONTROLLER (EZ1202)
