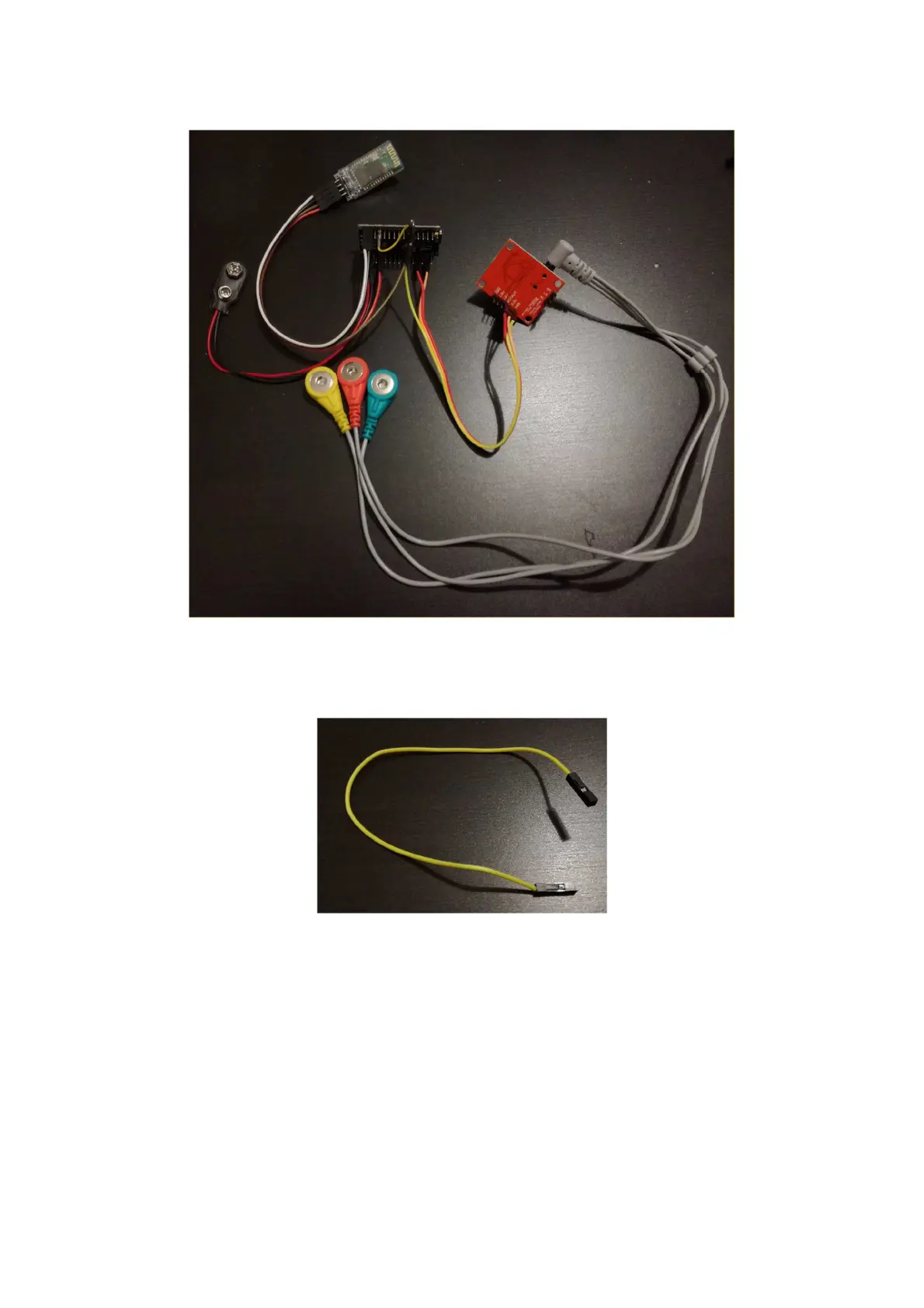

Figure 2: ECG hardware connections

Figure 3: example of female header connectors cable

Beside the main connection scheme of figure 1, detailed steps are here described:

• additional RLD resistor for safety issue

• alternative “home made” electrodes cable

• alternative GND connection to avoid soldering

• switch and box

Questions and Answers:

Need help?

Do you have a question about the ECG AD8232 and is the answer not in the manual?

ECG AD8232 Specifications

General

Supply Current	170µA
Common-Mode Rejection Ratio	80dB
Operating Temperature Range	-40°C to +85°C
Type	Instrumentation Amplifier
Chip	AD8232
Output	Rail-to-Rail
Input Impedance	10GΩ
Gain	100
Bandwidth	0.5Hz to 40Hz
Input Bias Current	1 pA
Quiescent Current	170µA
Package	LFCSP
