9
ASSEMBLY

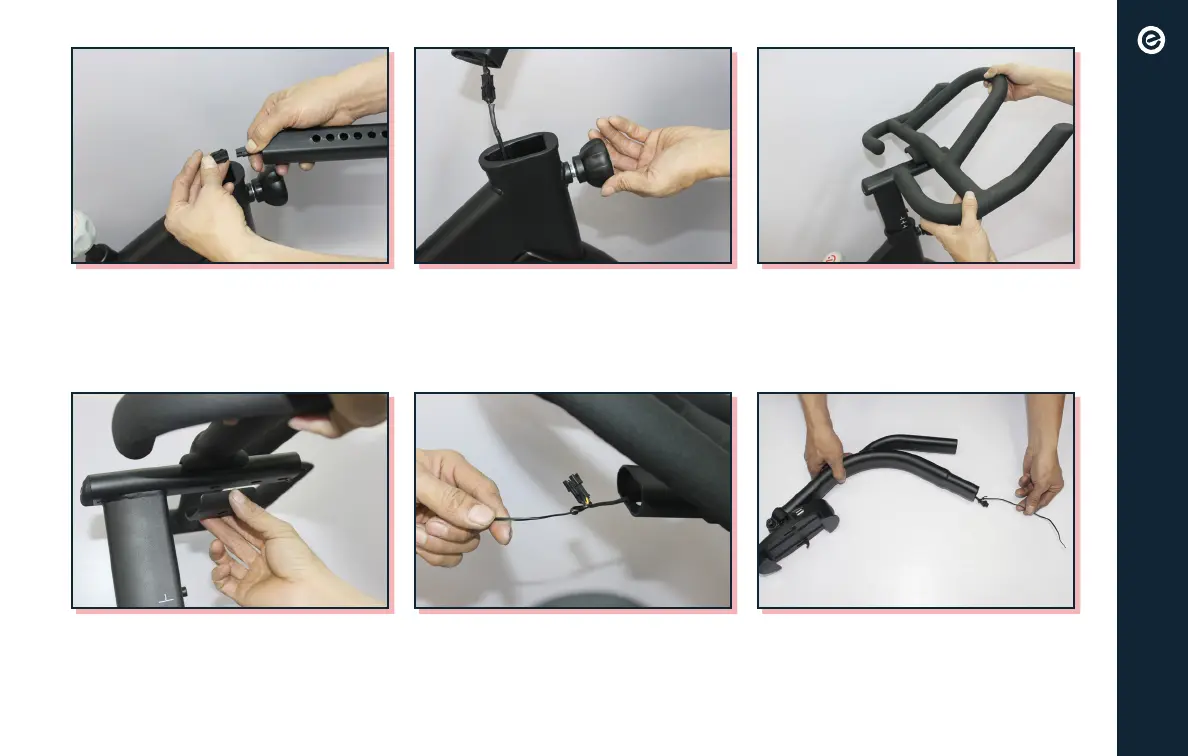

Place the handlebar bottom bracket,
screw in the handlebar post screw
and tighten with hex key.
Pull out the connect wire from the
handlebar post.
Pull out the connect wire and
untwist the twist tie from tablet
mount.
Connect the wire from frame and
handlebar post together.
Unscrew handlebar post adjustment
knob but do not remove. Fully insert
the handlebar post into frame.
Release the knob and ensure post is
secure.
Place the handlebar on the
handlebar post.
9
