USER MANUAL
REMOTE
INPUTS
4

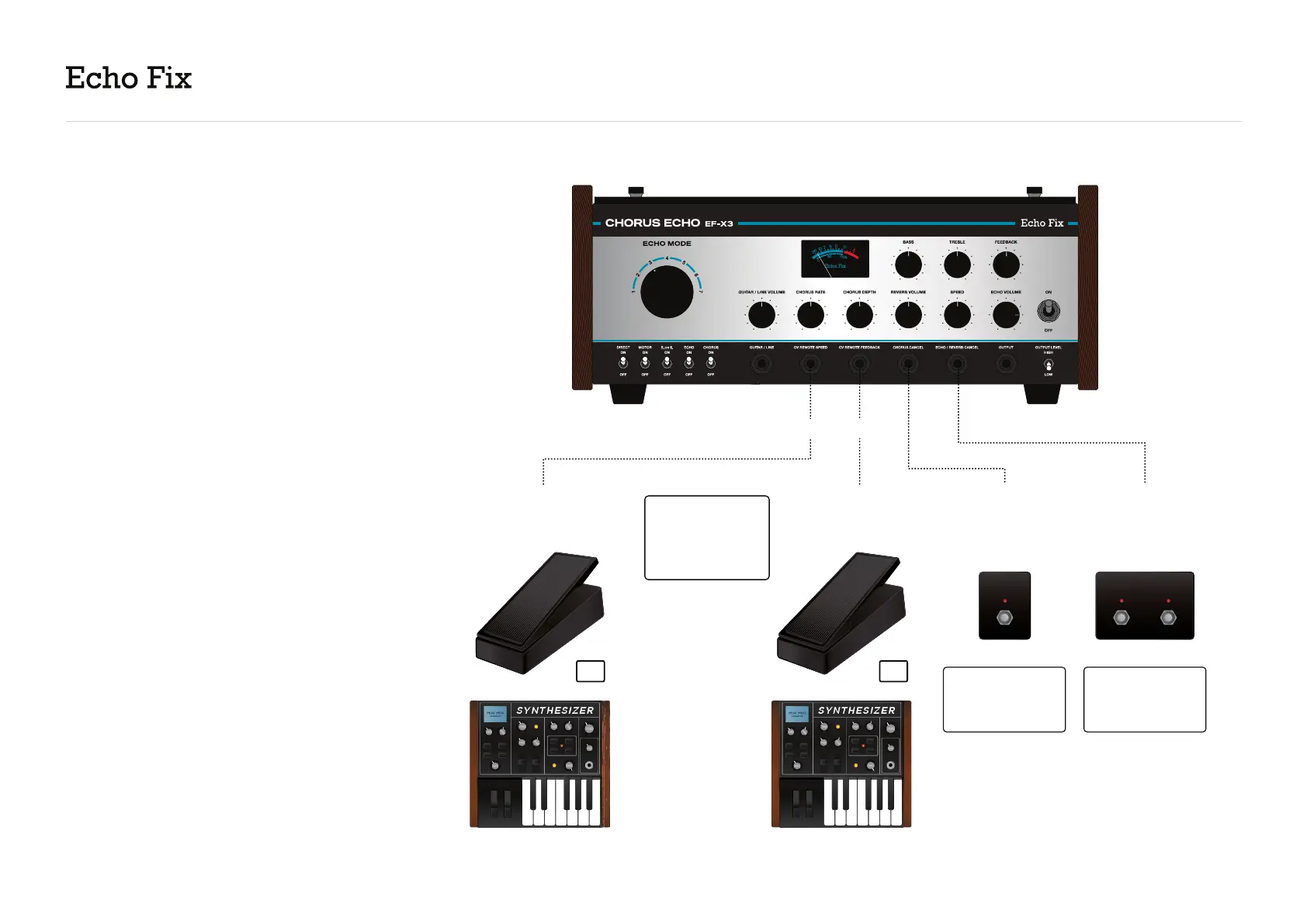

We have designed the EF-X3 to accommodate CV or
expression pedal control of the tape speed and feedback
functions. The control voltage range is 0 - 5v for CV
control. The expression pedal needs to be a TRS output
and is recommended to be 100KΩ impedance.
The echo, reverb and chorus effects can be disabled via
TRS latching footswitches. The Chorus cancel has its
own control input. The Echo and Reverb cancel can be
operated with a dual footswitch.
PAGE 8 OF 12
SPEED
CONTROL
FEEDBACK
CONTROL
2 CHANNEL
FOOTSWITCH
(TRS LATCHING)
1 2
EXPRESSION
SYNTHESIZER
MINI MINI
SYNTHESIZER
EXPRESSION
SYNTHESIZER
MINI MINI
SYNTHESIZER
6.35MM TRS CABLE
OR
OR
CV Control
(to EF-X3R)
+5V Supply
(from EF-X3R)
Ground
TIP
RING
SLEEVE
Echo Mute
Reverb Mute
Ground
TIP
RING
SLEEVE
1 CHANNEL
FOOTSWITCH
(TRS LATCHING)
1
Chorus Mute
N/A
Ground
TIP
RING
SLEEVE
CV OUT (0-5v) CV OUT (0-5v)
CHORUS ECHO EF-X3
To Next Page
