CLS-5800
Dimension L × W × H mm 1692 × 545 × 485 (66.6 in × 21.5 in × 19.1 in)
Mass kg 10.0 (22.0 lb): without shoulder harness and cutter head
Engine Type Air cooled two stroke single cylinder
Displacement mL (cm³) 58.2 (3.55 cu.in)
Maximum
revolution r/min 10,000
Carburetor ZAMA (C3M) diaphragm type
Ignition Flywheel magneto: CDI (Capacitor Discharge Ignition)
system
Spark plug NGK BPMR8Y
Starter Recoil starter
Clutch Automatic centrifugal clutch
Fuel Mixing ratio Mixture of gasoline (Unleaded, 89 octane minimum) and
specially blended 50 : 1 ECHO two cycle engine oil.
Tank capacity L 0.68 (23.0 US fl. oz.)
Drive shaft Gear housing 60 degree bevel gears, ratio 1 : 1.4 (Counterclockwise)
assembly Lubrication Good quality lithium grease
Drive shaft High tensile solid steel,10 mm (0.39 in) shaft, 5 bearings
Shield Metal shield mounted on the gear housing for steel blade
applications.

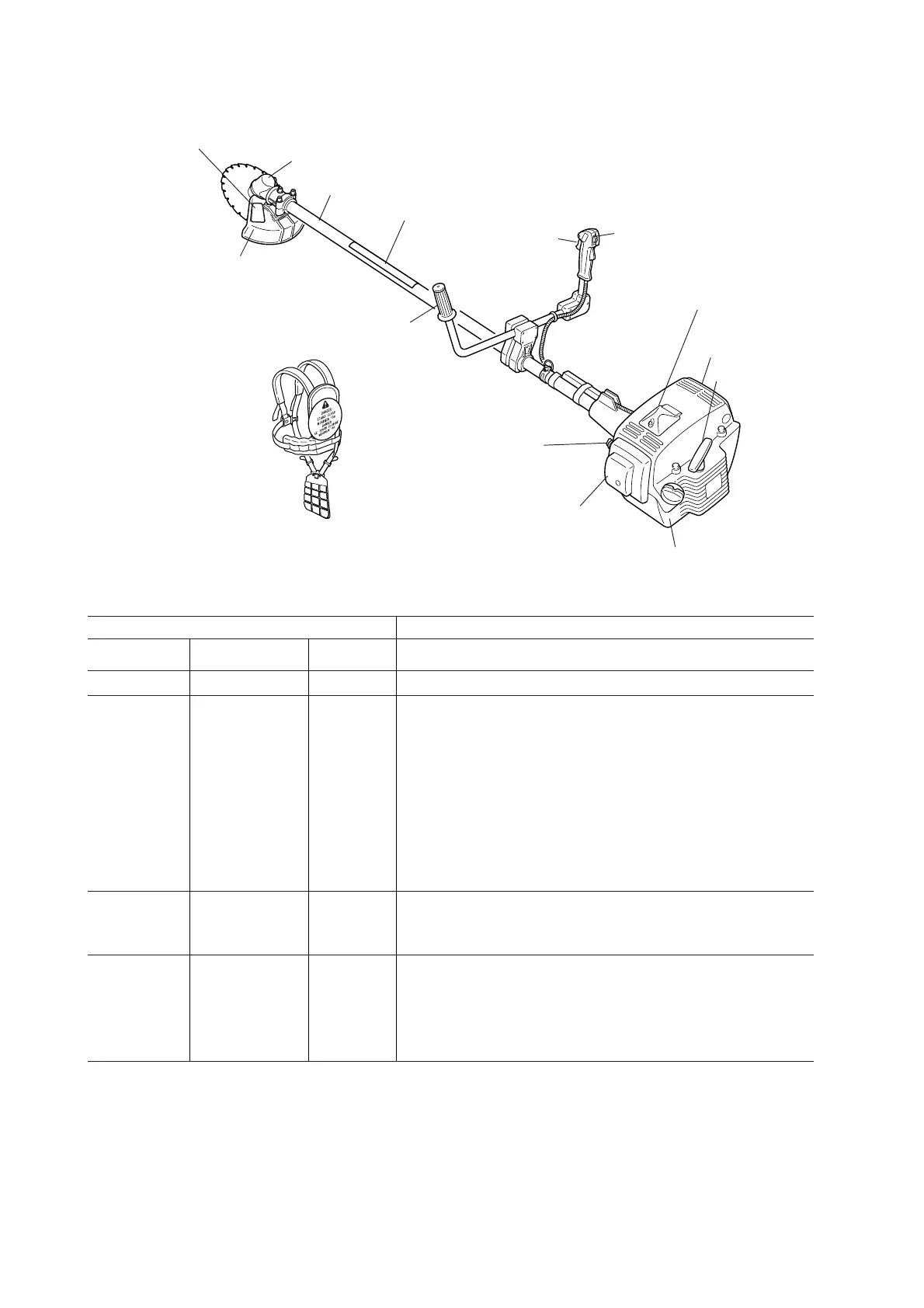

NOMENCLATURE OF PARTS
TECHNICAL DATA
Technical data subject to change without notice.
Shield
Gear housing
Ignition switch
Drive shaft assembly
Throttle trigger
Grip
Spark plug
Muffler cover
Choke knob
Air cleaner cover
Starter handle
Fuel tank
Part number 890317-49030
Part number 890177-51330
Shoulder harness
