Echo CS-400 - 04-09 User Manual

31
CS-400
NOTE
These angles are referred to as 91VG. To
sharpen other chains, follow chain manufac-
turer’s instructions.

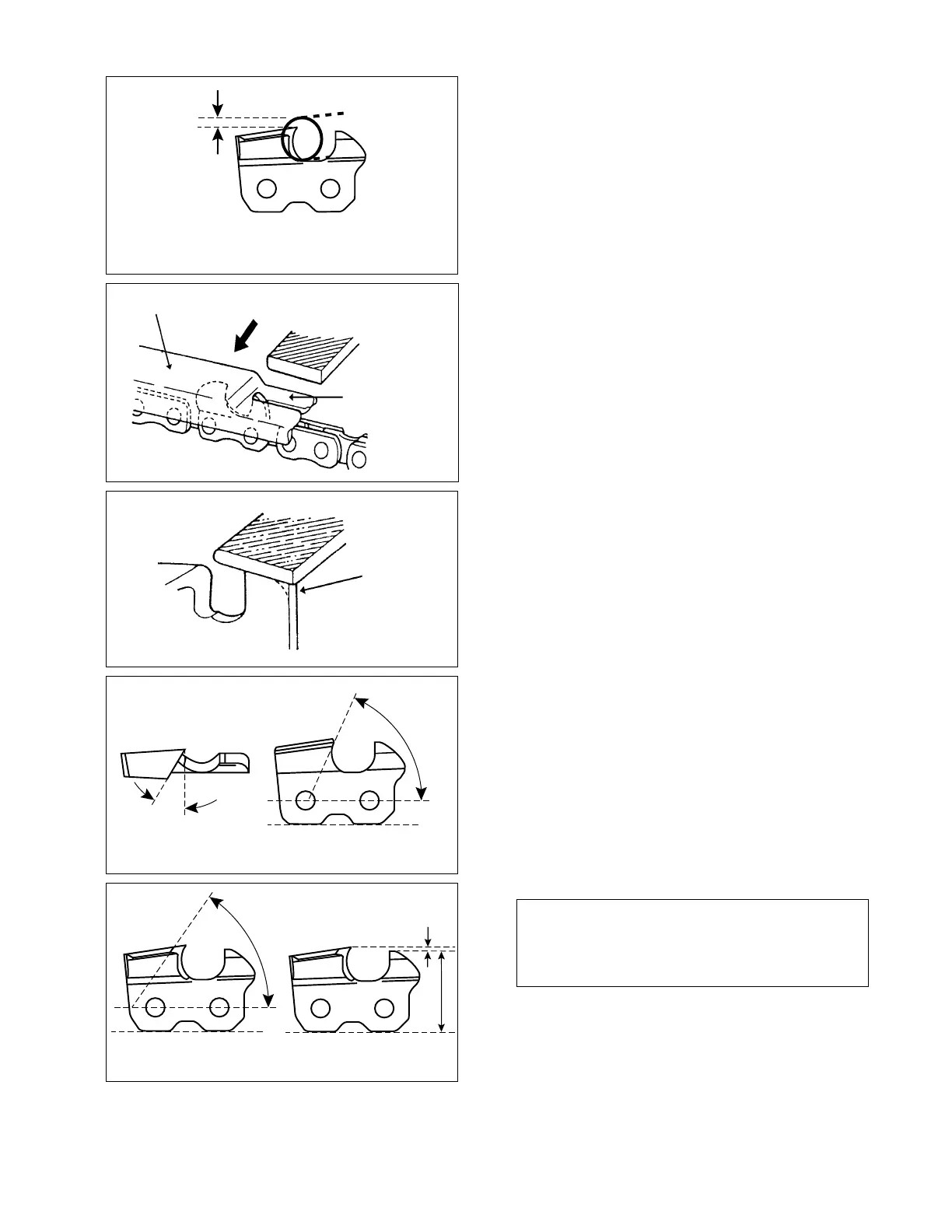

• Place the depth gauge tool rmly on guide
bar so that depth gauge protrudes.
Then le top of depth gauge with the at le until
at with top of the depth gauge tool.
• Be sure to round off the front edge of the depth
gauge.
Properly led cutters are shown in illustration.
When setting of the chain is nished, soak it in oil
and wash away lings completely before using.
• When chain has been led on the bar, supply
sufcient oil to it, rotate the chain slowly to wash
away the lings before using again.
• If the chain saw is operated with lings clogged
in the groove, the saw chain and the guide bar
will be damaged prematurely.
• If the saw chain becomes soiled with resin, for
instance, clean it with kerosene and soak in it oil.
Side plate angleTop plate ling angle
91VG:80°
30°
Parallel
0.64 mm (0.025 in.)
Top plate cutting angle Depth gauge
Remove until
at with tool
Depth gauge tool
Round off
the edge
1/5
One fth of le diameter remains
above cutter edge
91VG:60°

Echo CS-400 - 04-09 Specifications

General

Engine Displacement	40.2 cc
Chain Gauge	0.050 inch
Bar Length	16 inches
Fuel Capacity	13.9 fl. oz.
Weight	10.1 lbs (without bar and chain)
Chain Pitch	3/8 inch
