Echo CS-400 - 04-09 User Manual

8
CS-400
6
CS-400

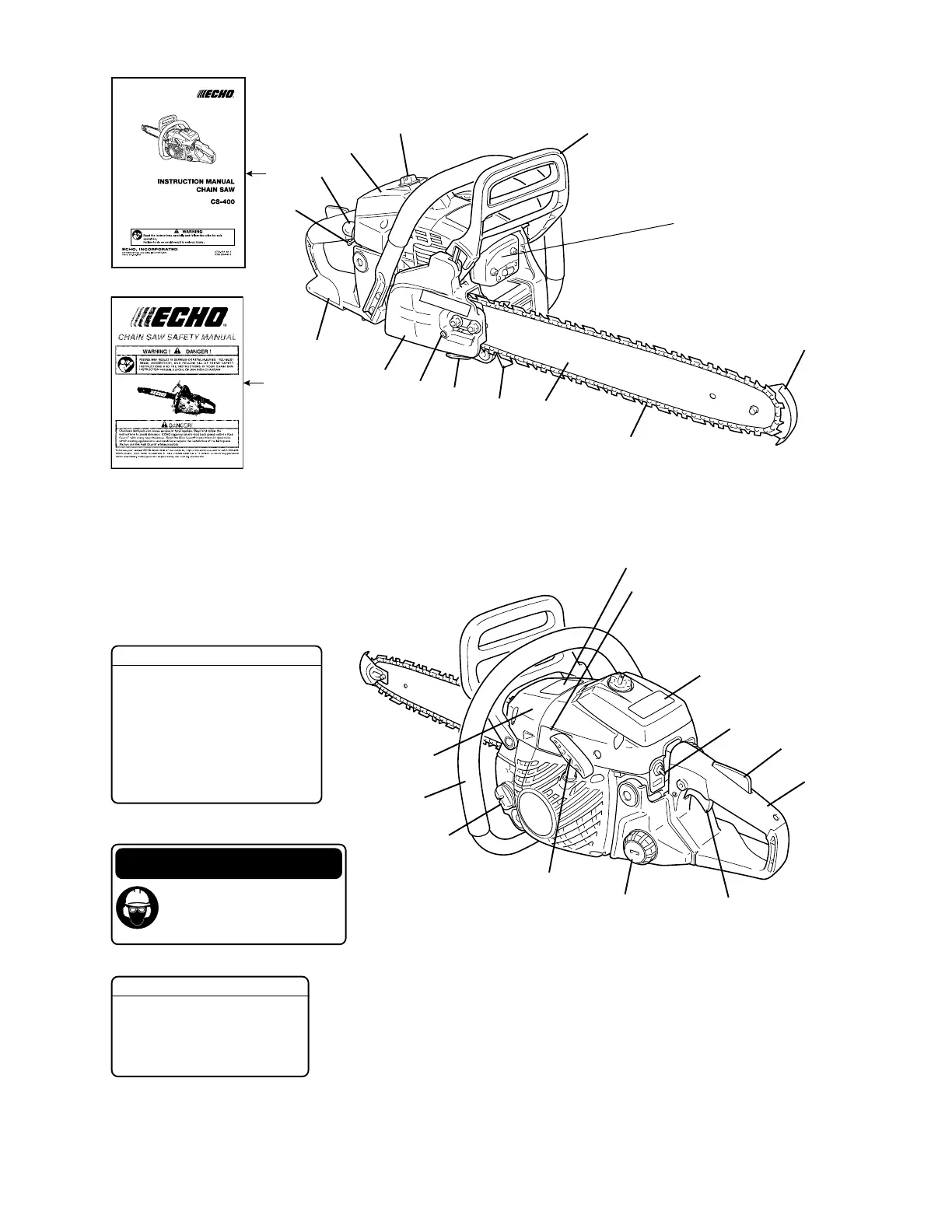

NOMENCLATURE OF PARTS
* If a decal cannot be read, a new one can be
ordered from your ECHO dealer.
24
16
17
18
20
19
2
1
X524-001810
890191-30131
X503-007391
21
22
23
TO AVOID KICKBACK
1. Hold the chain saw firmly with
both hands.
2. Don’t let the nose of the guide
bar contact any obstruction.
3. Tip contact may suddenly move the
guide bar upward and backward,
which may cause serious injury.
Part Number 890191-30131
Part Number X503-007391
WARNING!! Read and follow all safety
precaution in the instruction manual.
Failure to follow instructions could
result in serious personal injury.
CS-400
Part Number X524-001810
REPLACEMENT BAR AND CHAIN
GUIDE BAR* CHAIN*
PART NO. TYPE LINKS
16” 16A0ED3757 OREGON 91VG 57
18” 18A0ED3762 OREGON 91VG 62
*Or equivalent
Note: There may be other replacement
components for achieving kickback
protection. For details, please refer
to the chain and bar combination
sheet shown in the instruction manual.
15
5
4
8
7
10
11
12
13
14
3
9
6
25

Echo CS-400 - 04-09 Specifications

General

Engine Displacement	40.2 cc
Chain Gauge	0.050 inch
Bar Length	16 inches
Fuel Capacity	13.9 fl. oz.
Weight	10.1 lbs (without bar and chain)
Chain Pitch	3/8 inch
