DESCRIPTION CS-400
24 X7503256004
© 08/2020 ECHO Incorporated

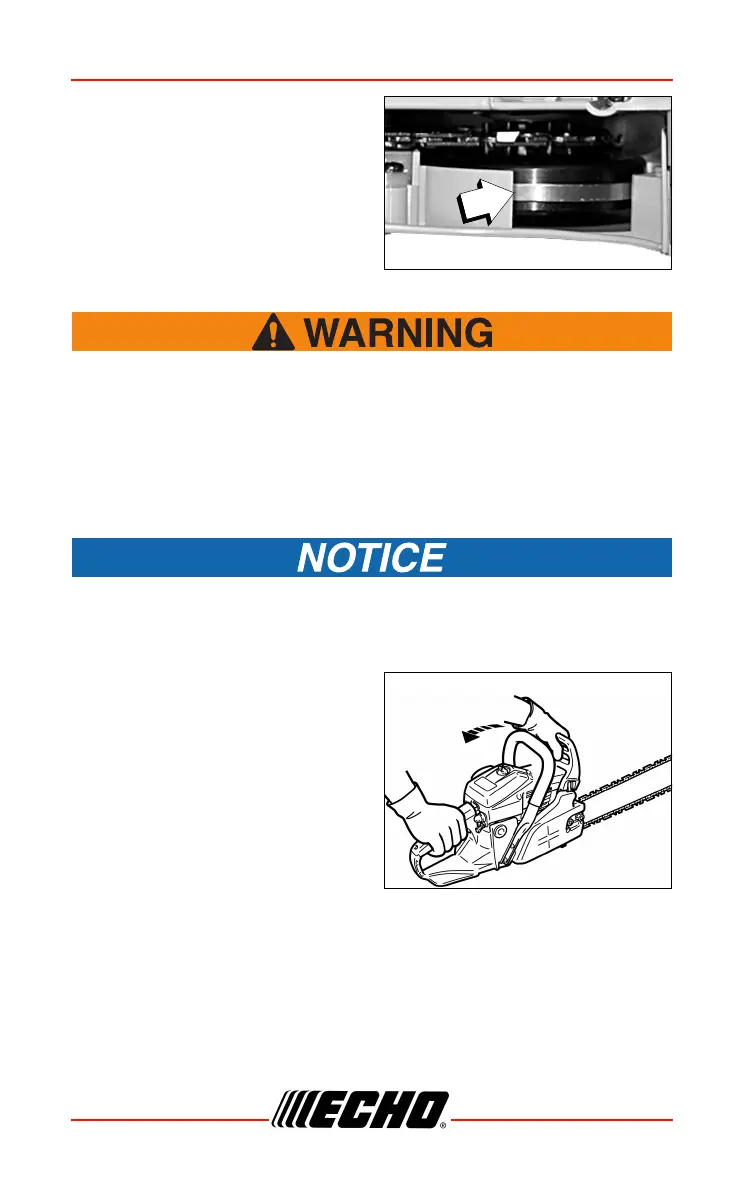

7. Turn saw over, and check brake
band (J) for correct position on
clutch drum. If brake band is not
in place around drum, remove
sprocket guard, and reinstall.
Tighten sprocket guard nuts
finger tight.
8. Adjust saw chain tension, as
instructed in “Adjustment, Chain
Tension”.
Improper sprocket guard assembly can result in serious injury,
and will cause severe saw damage if unit is started. Never start
or operate saw if brake band is not in place on clutch drum.
Always check chain brake operation after replacing guard. Do
not use saw if chain brake does not function properly.
Adjusting Chain Tension
Always loosen sprocket guard nuts before turning the chain tension
adjuster, otherwise the sprocket guard and tensioner will be
damaged.
1. Remove air cleaner cover and
disconnect spark plug lead.
2. Loosen sprocket guard nuts.
