Echo CS-400 User Manual

CS-400 OPERATION
X7503256004 33
© 08/2020 ECHO Incorporated

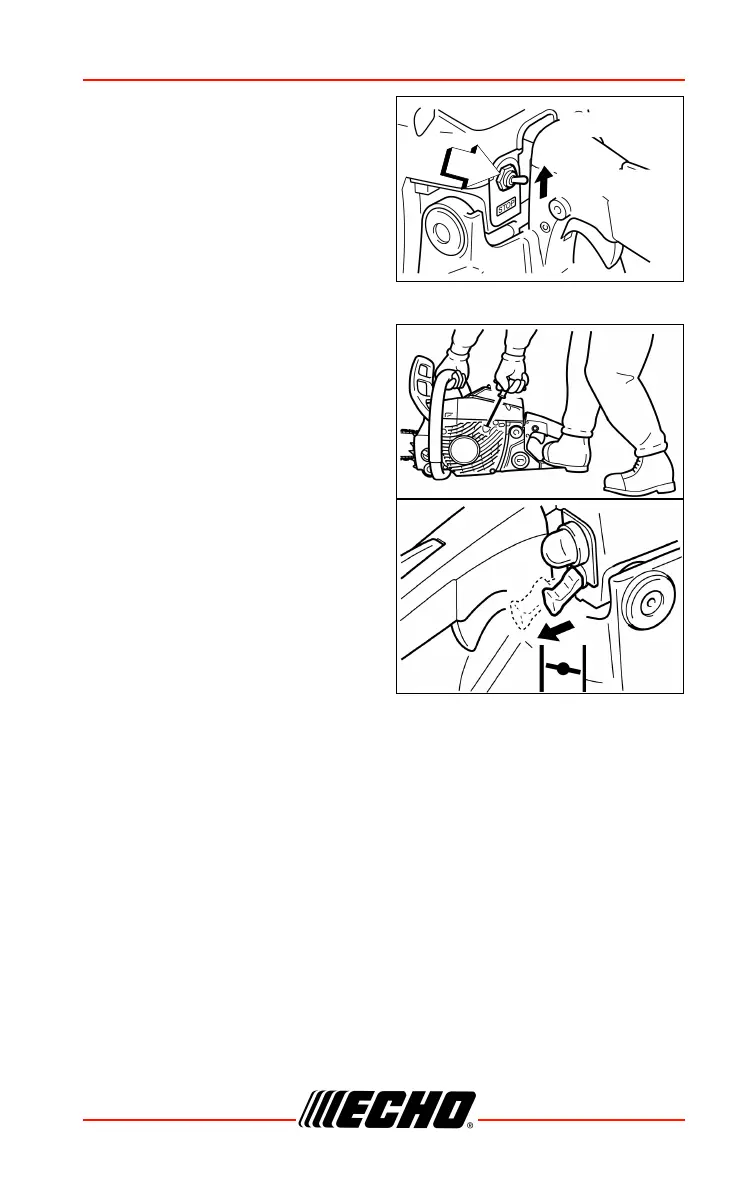

3. Move stop switch (A) UP to
“RUN” position.
4. Securely hold the chain saw as
shown and pull starter handle.
5. Choke may be used if necessary,
but after first starting sound,
squeeze throttle trigger to
release choke and return engine
to idle.
Note: If engine does not start
after 5 pulls, use cold start
procedure.
Note: Do not increase engine
speed while chain brake is
locked. Severe brake damage will result.
A

Echo CS-400 Specifications

General

Engine Displacement	40.2 cc
Weight (without bar and chain)	10.1 lbs
Oil Capacity	8.5 oz
Chain Pitch	3/8 inch
Chain Gauge	.050 in.
Vibration Level (Front/Rear Handle)	6.0 / 6.5 m/s²
