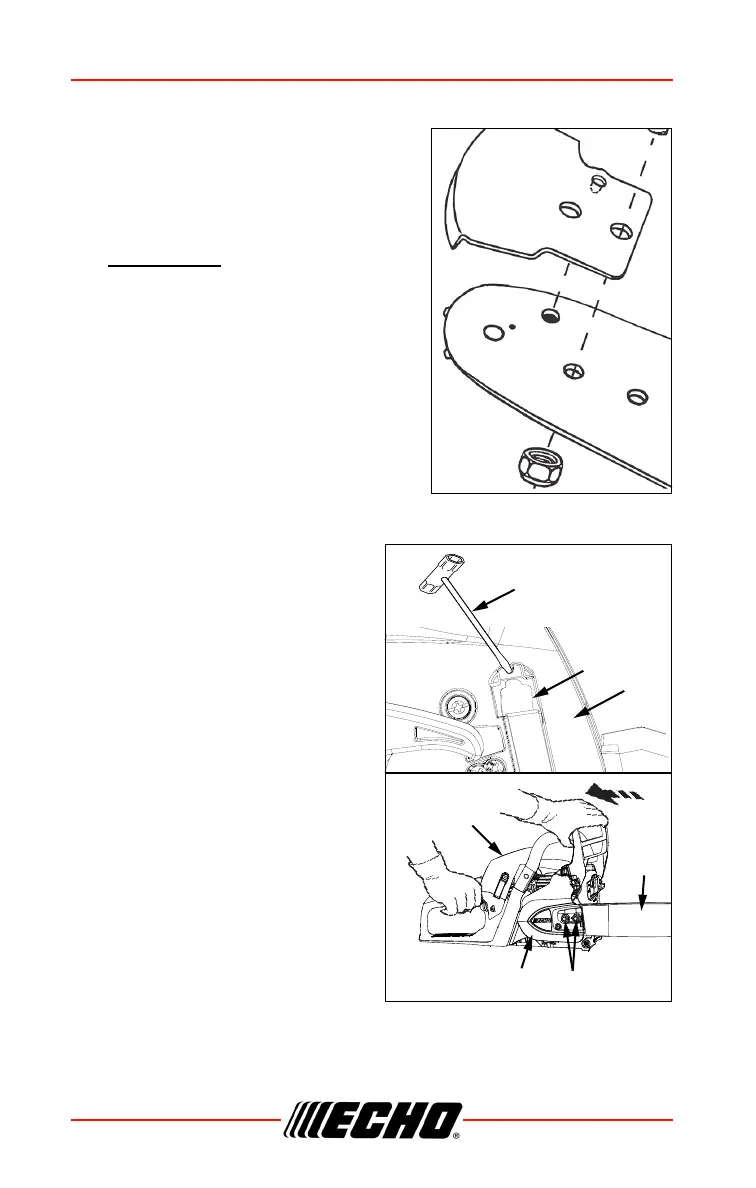

Instructions to Install Optional Kick Guard
TM
to Bar
Tools Needed: Two 11 mm (7/16 in.)
Wrenches.
1. Install bolt (A) in rear hole (B) of tip
guard and through front hole (C) in
guide bar.
2. IMPORTANT:
Dimple (D) in tip guard
must engage recess (E) in guide bar.
3. Securely tighten nut (F) and bolt (A).
Guide Bar and Saw Chain Installation/Removal
1. Release cylinder cover latches
(A) by inserting a screw driver (B)
and lifting latch tip as shown.
Remove cylinder cover (C).
2. Remove spark plug lead.
3. Remove sprocket guard nuts (D)
and remove sprocket guard (E).
4. Remove guide bar (F) and saw
chain if necessary.
Note: See “Maintenance and
Care” section for guide bar/
saw chain maintenance
procedures.
5. Unlock the chain brake.
Optional
Kick Guard
TM
A
B
C
C
D
E
F
Unlock Chain Brake
