Echo CS-6703 - 9. Chain Brake Asy, Clutch, Sprocket, Tools(Sr;Nr 36001100 and b

CS-6703(36)

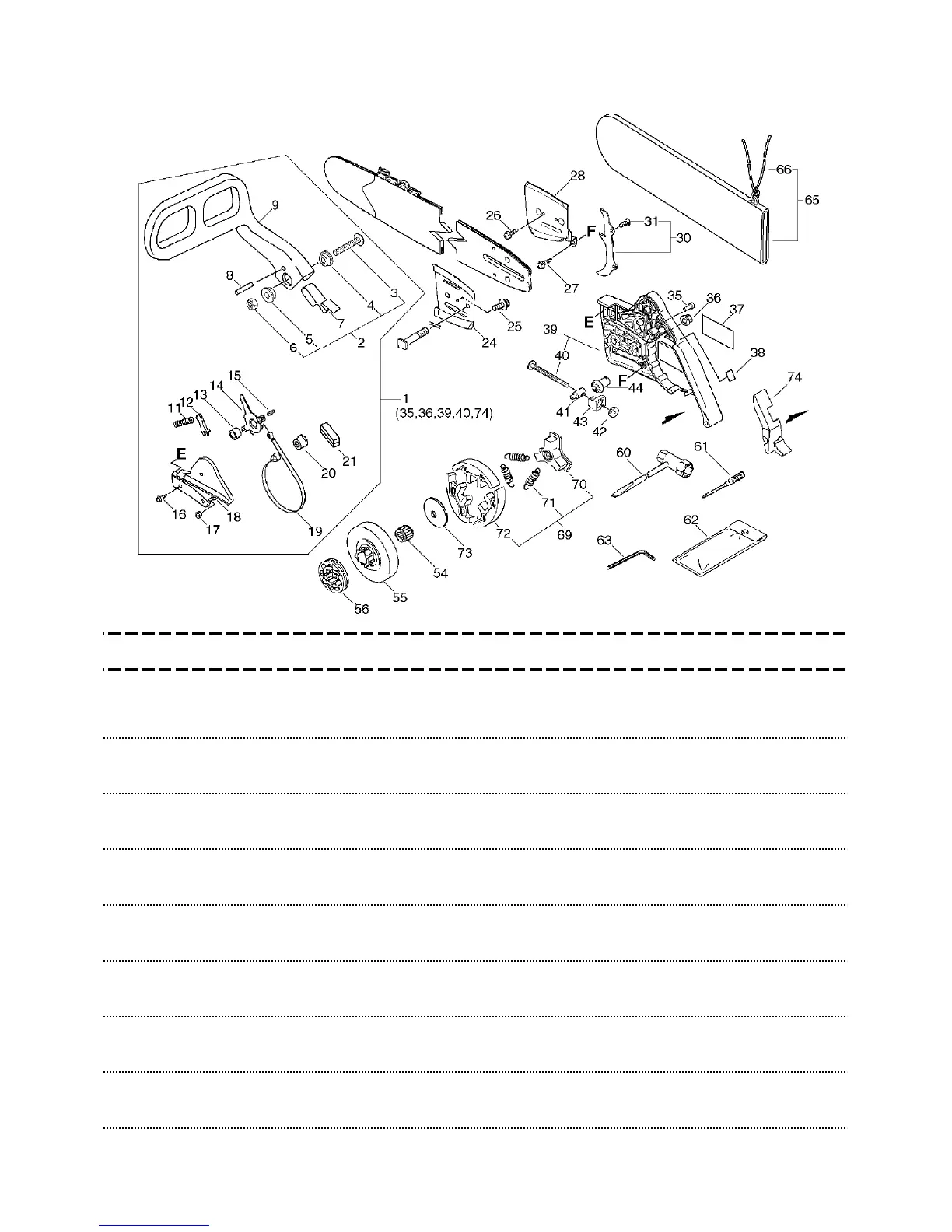

9. Chain Brake Asy, Clutch, Sprocket, Tools(Sr/Nr 36001100 and before)
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 P021-010641 1 BRAKE,ASM CHAIN
2 + 433113-37539 1
SCREW KIT
3 ++ 900209-05035 1
SCREW
5*35
4 ++ 433167-39730 1
COLLAR 5
5 ++ 433167-39130 1
SPACER
6 ++ 900562-50005 1
LOCKNUT 5
5
7 + 433114-38131 1
SPRING
8 + 900330-35260 1
PIN 3.5*26
3.5*26
9 + 433105-38131 1
LEVER, BRAKE
11 + 433122-38130 1
SPRING, BRAKE
12 + 433209-35430 1
STOPPER, BRAKE
13 + 433116-35430 1
SPACER 8
8*12*9
14 + 433208-35431 1
LEVER, BRAKE
15 + 900330-40088 1
ROLLER 4*8.8
4*8.8
16 + 900252-04012 2
SCREW 4*12
4*12
17 + 900500-00003 1
NUT 3
3
18 + 433310-38130 1
COVER, BRAKE
19 + 433123-38131 1
BAND, BRAKE
20 + 433142-35430 1
ADJUSTER, BRAKE
21 + 433312-32630 1
COVER, SEAL
35 + 900220-03018 1
SCREW (+-SR 3*18)
3*18
36 + 433019-12330 2
NUT, FLANGE 8
M-8
39 + P021-002285 1
SPROCKET GUARD
40 ++ V203-000110 1
BOLT,5
24 433013-30830 1
PLATE, GUIDE (INNER)
25 900241-04008 1
SCREW 4*8
4*8
