Echo CS-6703 - Page 24

CS-6703(36)

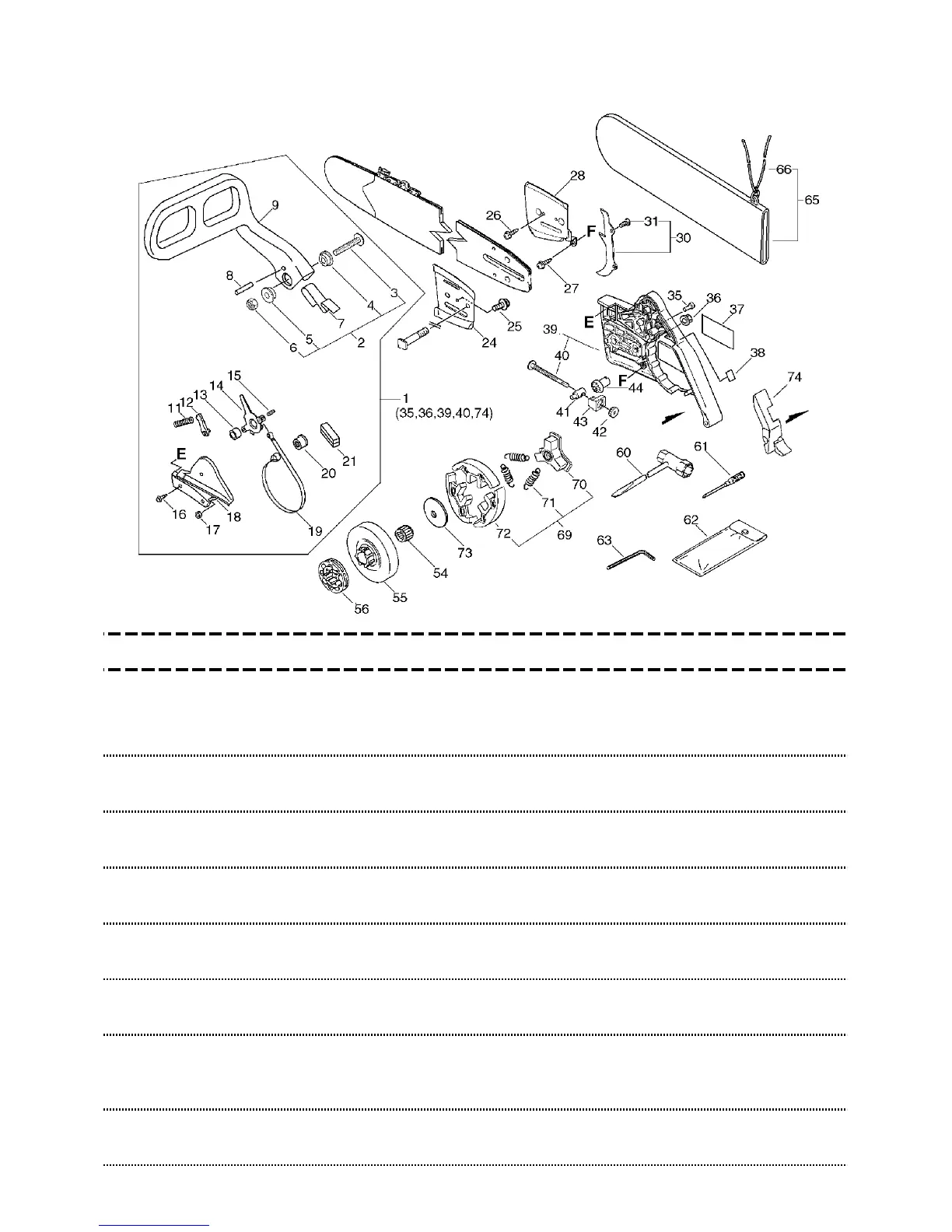

10. Chain Brake Asy, Clutch, Sprocket, Tools(Sr/Nr 36001101 and after)
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
39 + P021-002286 1 SPROCKET GUARD
40 ++ V203-000110 1
BOLT,5
74 + C302-000000 1
PAD, GUARD
Sr/Nr 36001101
and after
24 433013-30830 1
PLATE, GUIDE (INNER)
25 900241-04008 1
SCREW 4*8
4*8
26 900241-03006 2
SCREW 3*6
3*6
27 900253-04010 1
SCREW 4*10
4*10
28 C305-000040 1
PLATE,SPROCKET GUARD
30 P021-002880 1
BUMPER,SPIKED
31 + 900105-05012 2
BOLT, H.S. 5*12
5*12
37 X502-000560 1
LABEL,ECHO
38 890155-30130 1
LABEL, CAUTION
41 C309-000030 1
TENSIONER,CHAIN
42 V651-000011 1
GEAR,BEVEL
43 V355-000270 1
COLLAR,8
44 V651-000001 1
GEAR,BEVEL
54 175012-32430 1
BEARING, NEEDLE
12*18*12
55 175105-32431 1
DRUM, CLUTCH
56 175033-14731 1
SPROCKET, RIM 68210S
60 895410-02830 1
WRENCH, W/S. DRIVER
Sus. by X602-
000080
60 X602-000080 1
TOOL,WRENCH
13*19 L180
61 895812-03930 1
DRIVER, SCREW 50
62 898510-07130 1
BAG, TOOL
63 895610-00130 1
L-WRENCH (4MM)
- 20 -
