Audio connections – Layla24
S/PDIF

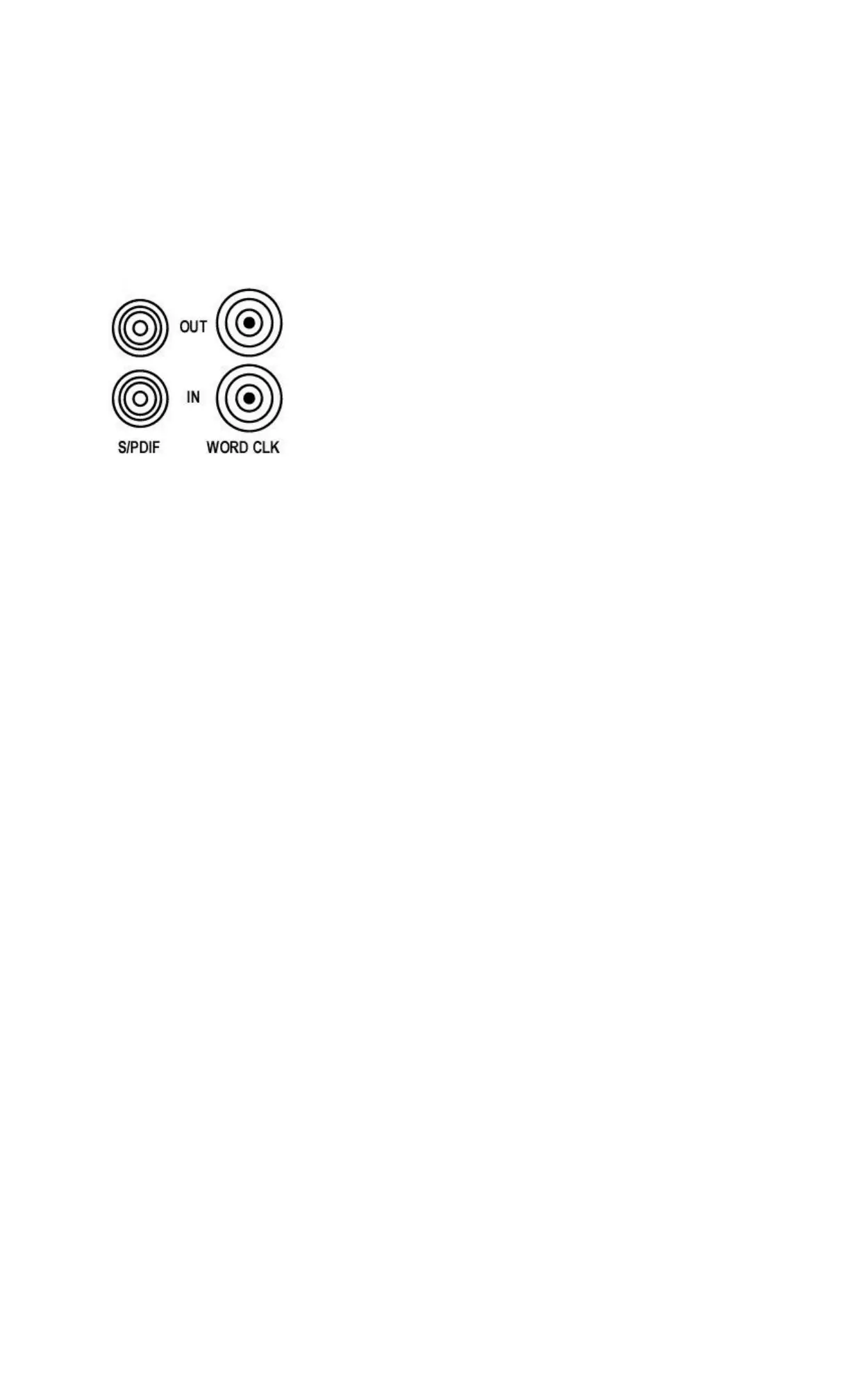

Next to the ADAT connectors is a pair of connectors labeled S/PDIF, IN and
OUT. These S/PDIF connectors are used to transmit digital data among digital
audio devices via an electrical signal. S/PDIF data can use the full 24-bit sample
width used internally on Layla24.
When connecting devices to the S/PDIF jacks on Layla24, the use of standard
analog RCA audio cables is not recommended. For reliable S/PDIF operation, 75-
ohm coaxial (RG59) video cables are recommended.
Word Clock
Next to the S/PDIF ports are the Word Clock connectors. These connectors allow
you to synchronize one Layla24 to another Layla24, Layla, Mona or to other
digital audio devices.
The Word Clock I/O uses a BNC connector. As with the S/PDIF I/O, a shielded
75-ohm (RG-59) coaxial video cable should be used. BNC connectors are widely
used in the electronics industry for both video and computer networking.
However, computer networks use 50-ohm (RG-58) coaxial cables and not the 75-
ohm (RG-59) cable used by video. For reliable word clock operation, use only
video grade cables with Layla24.
