Mona provides 48 volts of phantom power for microphones that require it. To
enable phantom power press the button labeled +48V (the LED next to it will light
up) and phantom power will be provided to all microphone inputs.
Note:
Phantom power will not be applied to any line level equipment or
guitars plugged in using ¼” connectors.

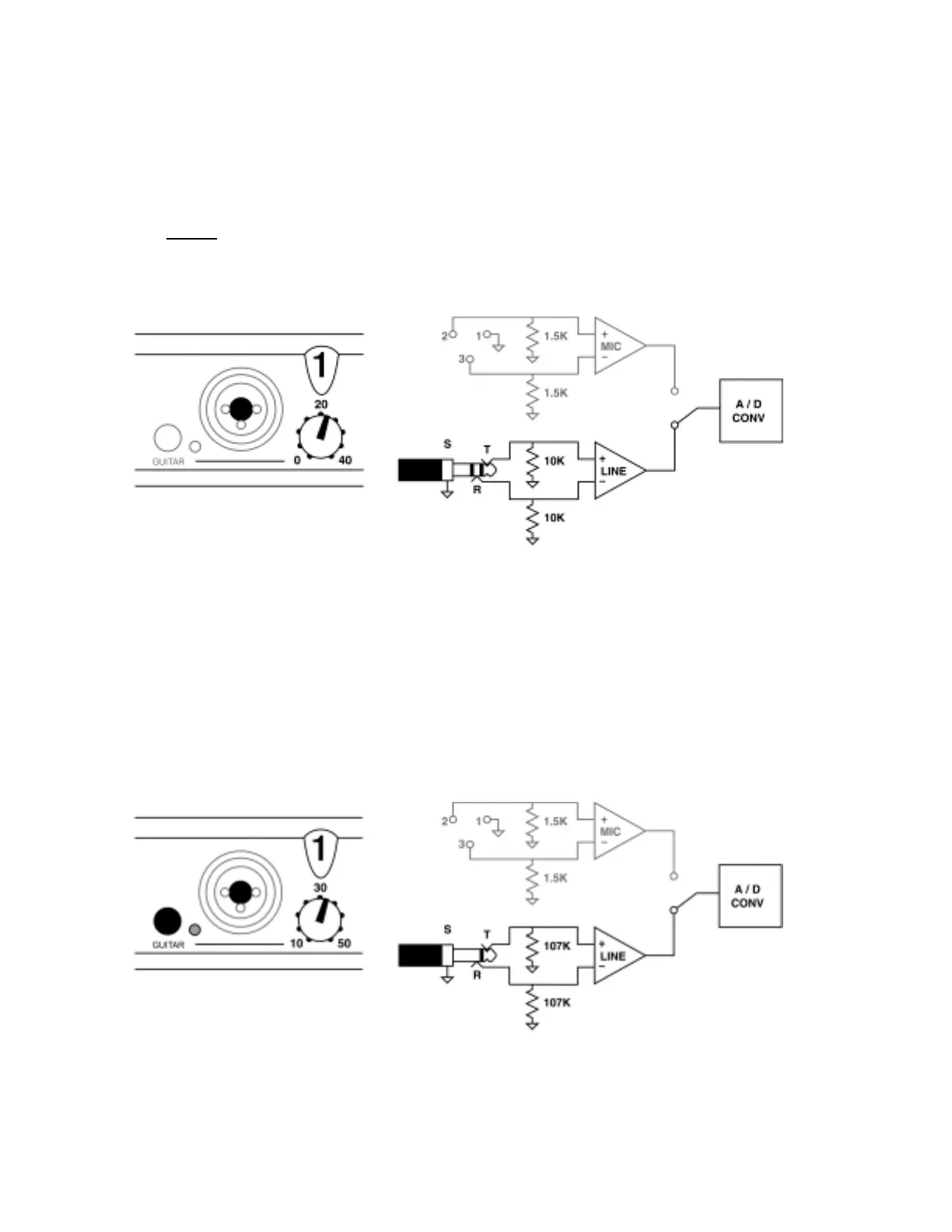

Mona’s Line Input (1/4” TRS, Impedance: 10K, Trim: 0 –
40dB)
When a ¼” connector is plugged into Mona’s universal input jack, the microphone
preamp is disconnected and a line input amplifier is inserted in its place. If the
GUITAR switch is out, the line input provides a balanced connection (for TRS
plugs) and the trim knob has a range of 0 to 40dB. The input impedance for line-
level signals is 10K. Full-scale input is 22dBu with the trim set to zero.
