Audio connections - Mona
S/PDIF

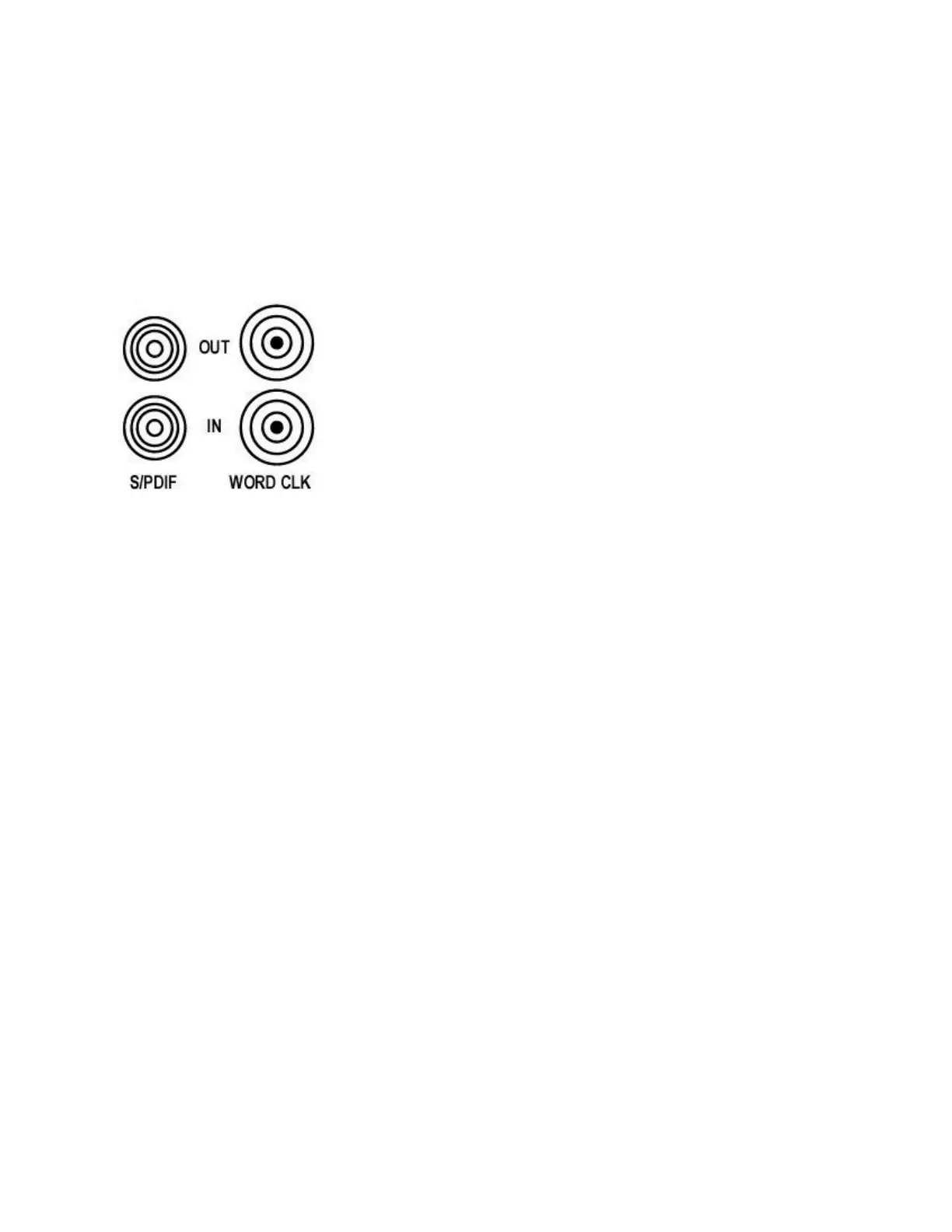

Next to the ADAT connectors is a pair of connectors labeled S/PDIF, IN and
OUT. These S/PDIF connectors are used to transmit digital data among digital
audio devices via an electrical signal. S/PDIF data can use the full 24-bit sample
width used internally on Mona.
When connecting devices to the S/PDIF jacks on Mona, the use of standard analog
RCA audio cables is not recommended. For reliable S/PDIF operation, 75ohm
coaxial (RG59) video cables are recommended.
Word Clock
Next to the S/PDIF ports are the Word Clock connectors. These connectors allow
you to synchronize one Mona to another Mona, Layla or Layla24 or to other digital
audio devices.
The word clock I/O uses a BNC connector. As with the S/PDIF I/O, a shielded 75-
ohm (RG-59) coaxial video cable should be used. BNC connectors are widely used
in the electronics industry for both video and computer networking. However,
computer networks use 50-ohm (RG-58) coaxial cables and not the 75-ohm (RG-
59) cable used by video. For reliable word clock operation, use only video grade
cables with Mona.
