Echo LAYLA 24

Console – Mia
34
Console – Mia

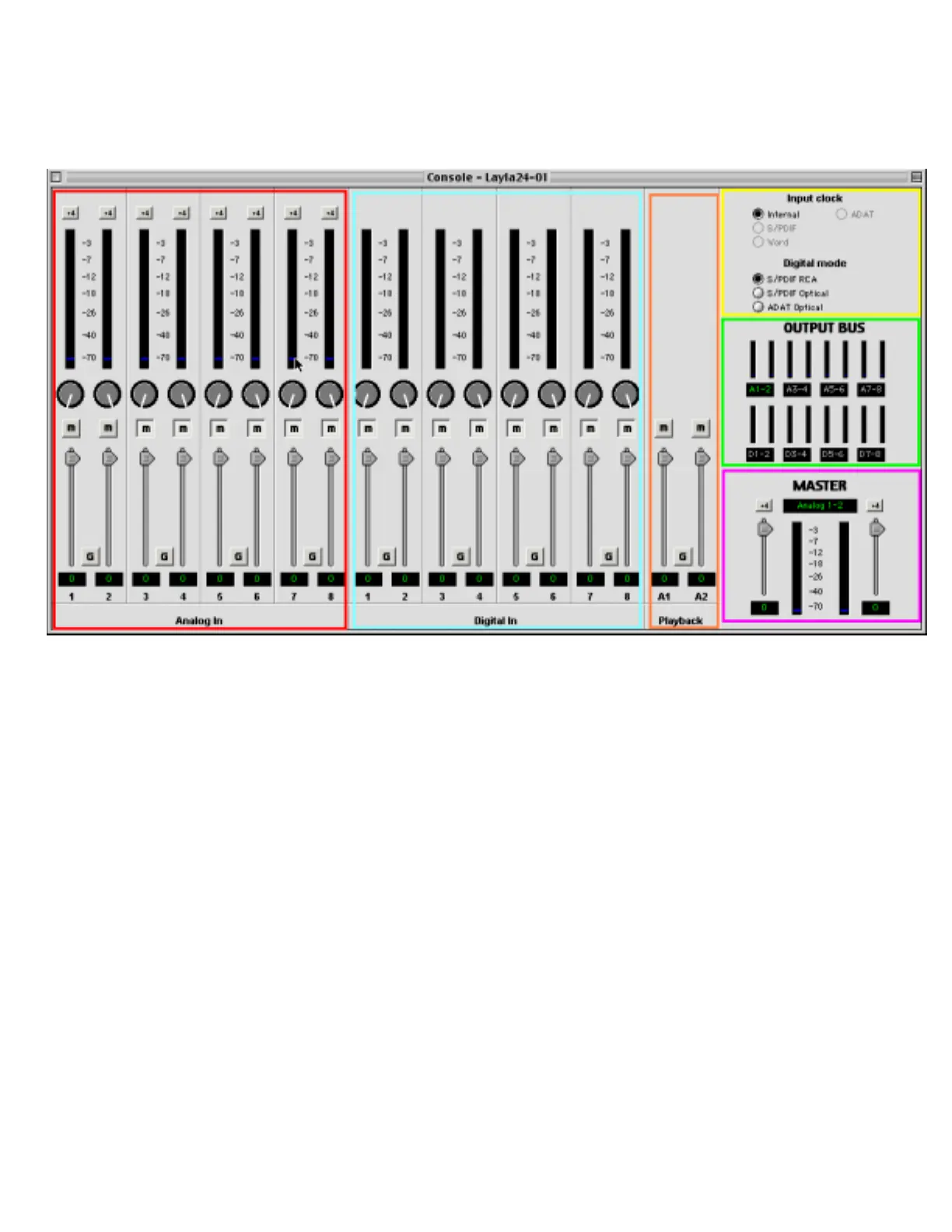

Here’s a picture of the console for Layla24 (Gina24 and Mona are similar)
Bus select: The bus select panel is the area outlined in green. Eight
different output busses are shown here: four analog busses in the top row
and four digital busses on the bottom row. Each bus has its own button
marked with either an A or D (Analog or Digital) and a channel number
pair. The highlighted button is the currently active bus. All monitor
controls remain in effect even when not displayed by maintaining a level
setting for each monitor path it controls. Clicking on an output bus button
simply selects the settings that are displayed. In this case, Analog 1-2 (A 1-
2) is the active bus. This means all input monitor parameters such as
volume, pan, and mute apply to the audio coming out Analog outputs 1 and
2 of Layla24. To select an output bus, click on one of the buttons.
Master output bus control: The master bus control is the area outlined in
purple. At the bottom is the label “Analog out 1-2.” This indicates you are
