Console - Mia
or digital outputs in any combination. You therefore have eight virtual
outputs that are mixed down to the four physical outputs.

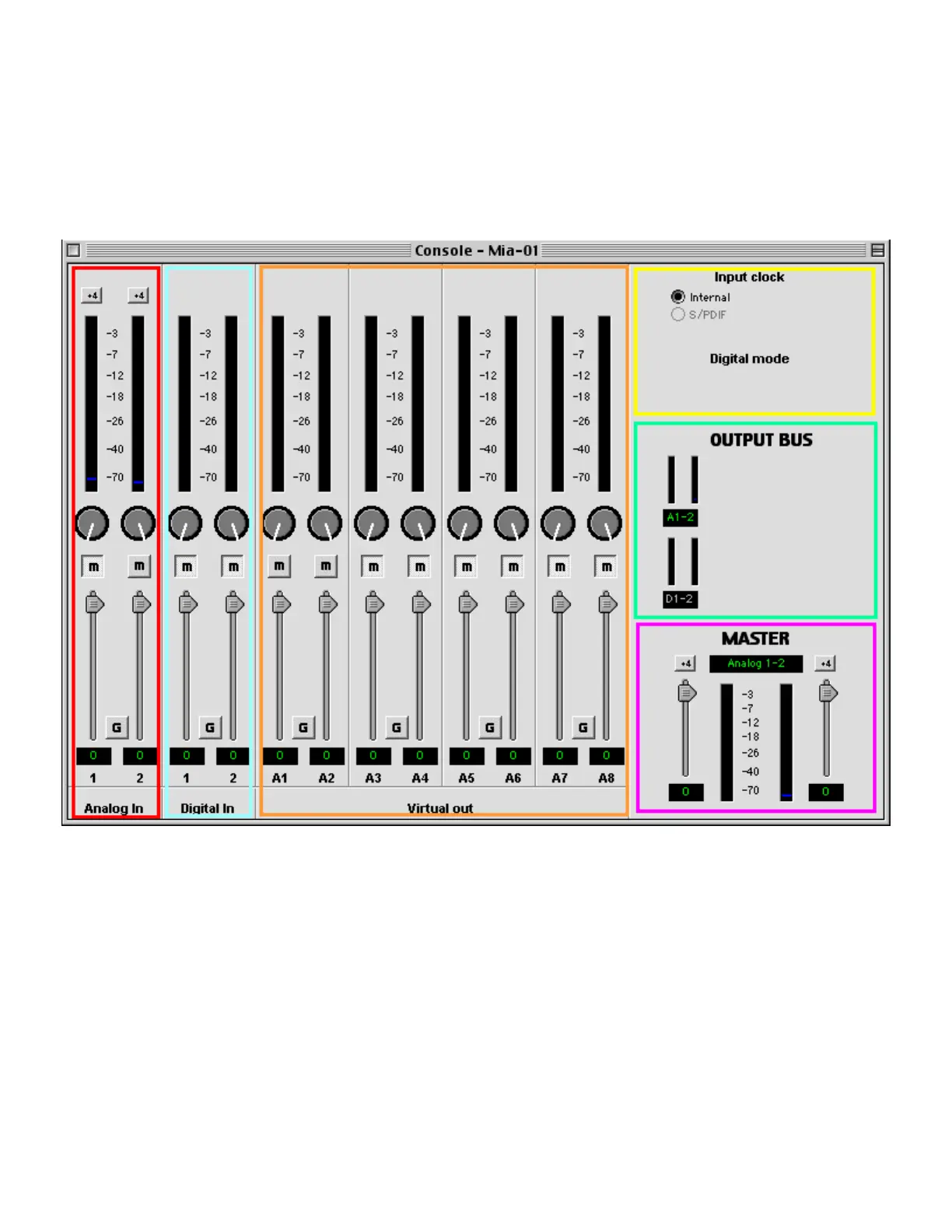

Here’s a picture of the console for Mia:
Bus select: Let’s start with the area within the green outline on the right.
This is the bus select panel. Two different output busses are shown here:
the analog output bus on top, and the digital output bus on the bottom row.
Click on the label below the meters to select the bus.
Master output bus control: Now, let’s consider the area in the purple
outline on the lower right. This is the master bus control.
