Audio connections – Gina24
S/PDIF

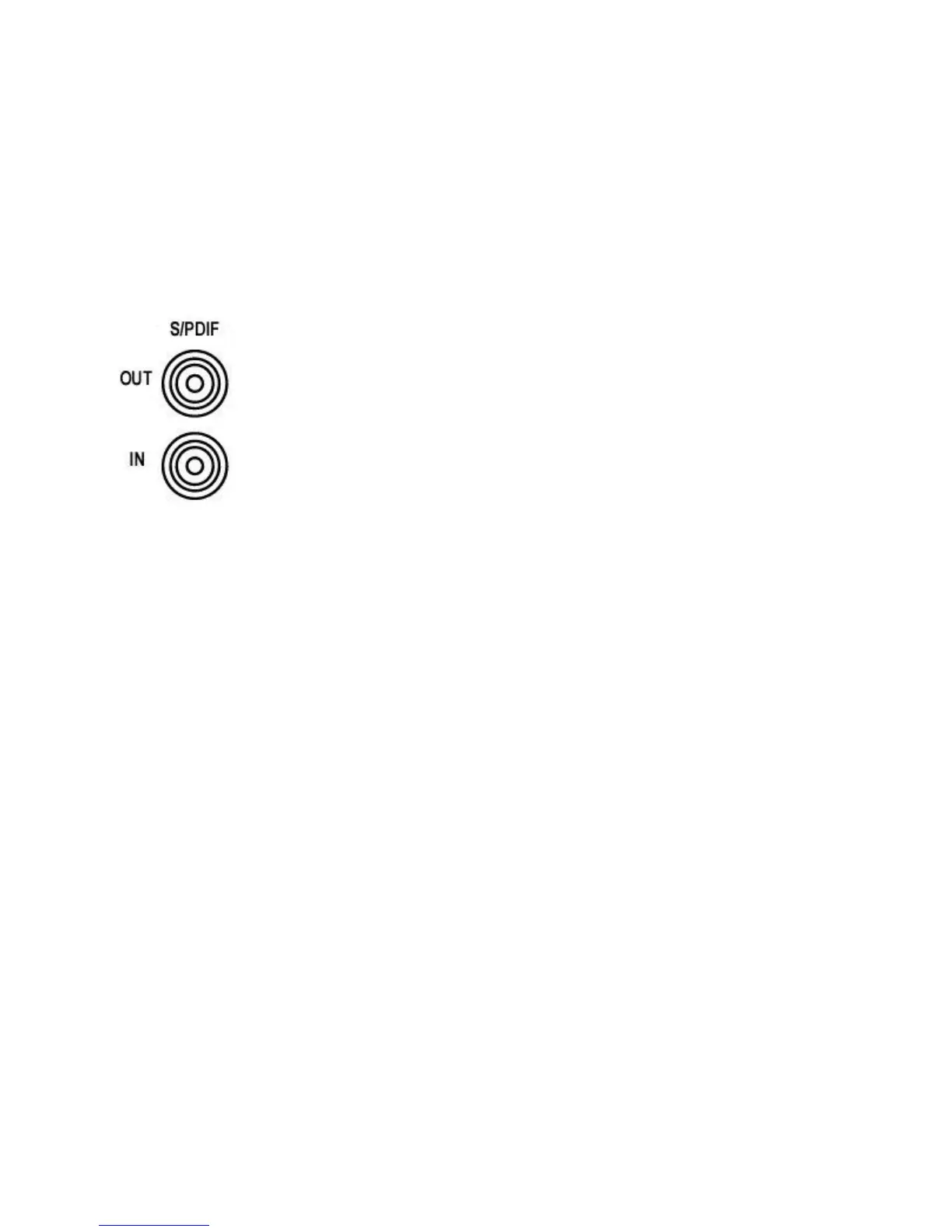

Next to the ADAT connectors is a pair of connectors labeled S/PDIF, IN and
OUT. These S/PDIF connectors are used to transmit digital audio data between
digital audio devices via an electrical signal. S/PDIF data can use the full 24-bit
sample width used internally on Gina24.
When connecting devices to the S/PDIF jacks on Gina24, the use of standard
analog RCA audio cables is not recommended. For reliable S/PDIF operation,
75ohm coaxial (RG59) video cables are recommended.
24
