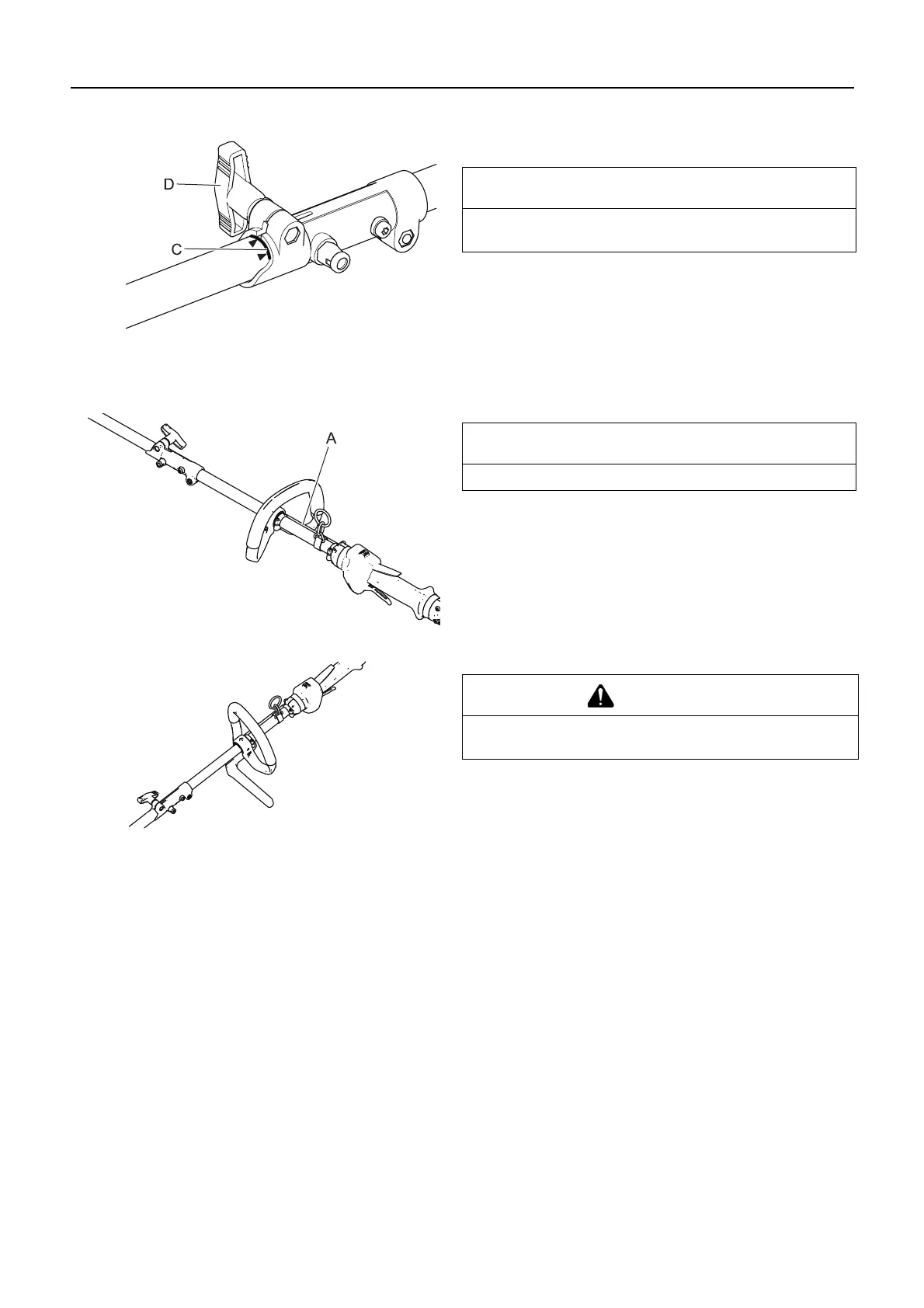

4. Carefully fit attachment drive shaft assembly into coupler (B)
to decal assembly line (C), making sure that the inner lower
drive shaft engages into the square upper drive shaft socket.
5. Rotate locator pin (A) 1/4 turn clockwise to engage lower
shaft hole. Insure locator pin is fully engaged by twisting low-
er drive shaft. Locator pin should snap flush in coupler. Full
engagement will prevent further shaft rotation.
6. Secure lower shaft assembly to coupler by tightening clamp-
ing knob (D).
7. To disassemble, reverse assembly instructions.
Handle adjustment
1. Stand in a comfortable operating position with attachment
assembled, and position front handle for comfortable opera-
tion. Tighten handle screws.
Barrier bar assembly
1. Unscrew bottom bracket of handle, and replace with Barrier
Bar as shown. Adjust handle and secure as described
above.
NOTE
Lower bearing housing and head assembly must be in line with
the motor unit.
NOTE
Collar (A) shows minimum spacing for front handle location.
WARNING
The barrier bar must be used with brush-cutter attach-
ment.
