7

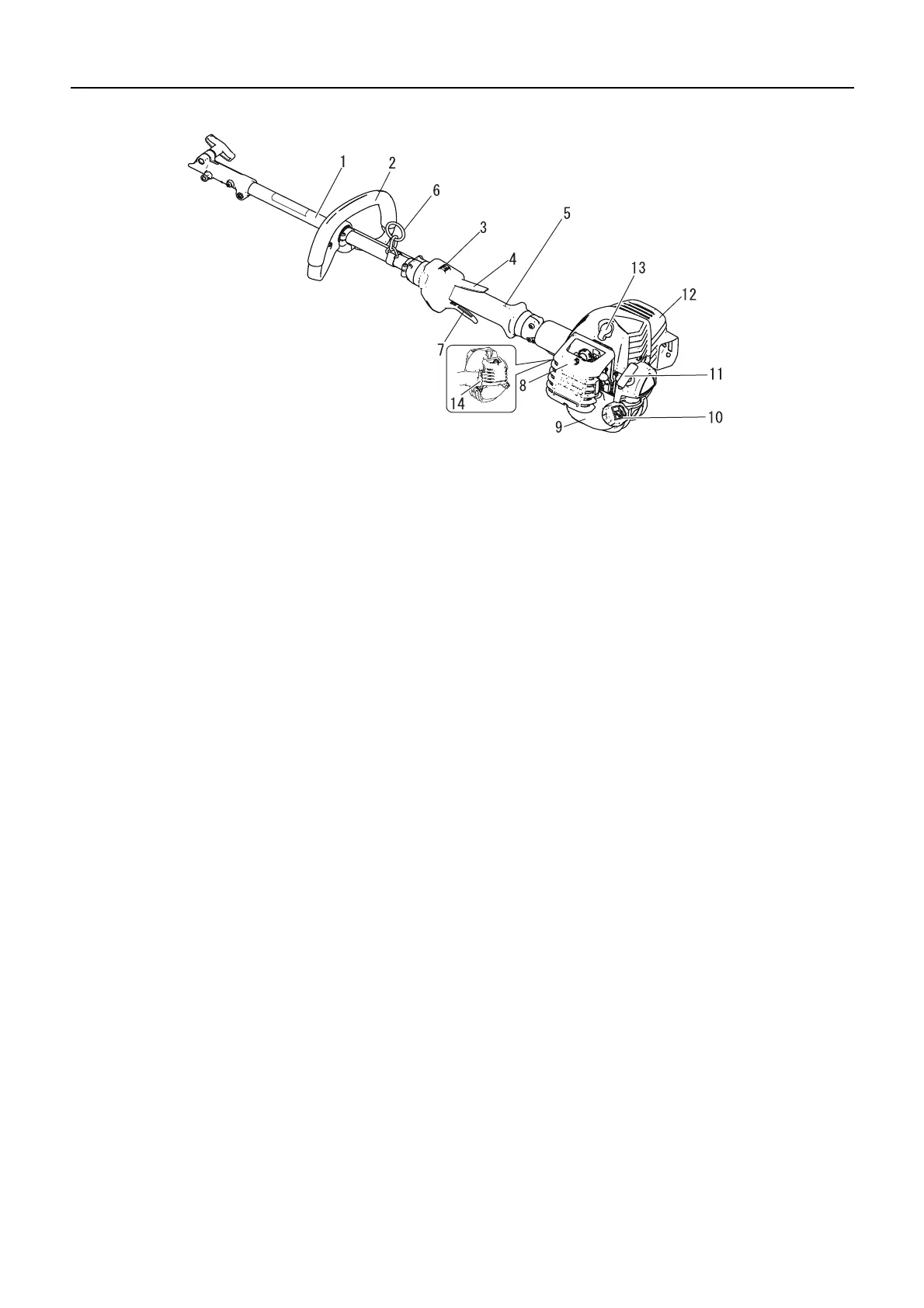

Description
Description
1. UPPER DRIVE SHAFT ASSEMBLY Includes the Rear
(Right Hand) Grip Assembly, Loop (Front, Left Hand)
Handle Assembly, Flexible Drive Cable, Drive Shaft As-
sembly Coupler and Power Head.
2. Loop-handle The Loop (front) handle must be assem-
bled to the Upper Drive Shaft assembly and positioned
for proper cutting attitude and operator comfort.
3. Ignition switch "Slide switch" mounted on top of the
throttle trigger housing, move switch forward to RUN,
backward to STOP position.
4. Throttle trigger lockout Locks throttle trigger in the
idling position until you have a proper grip with your right
hand around the handle.
5. GRIP Rear (right hand) handle.
6. Suspension point Device on which the harness can be
hooked.
7. Throttle trigger Activated by the operator's finger for
controlling the engine speed.
8. Air cleaner cover Covers air filter.
9. Fuel tank Contains fuel and fuel filter.
10. Fuel tank cap For closing the fuel tank.
11. Starter handle Pull handle to start the engine.
12. Silencer cover Cover the silencer not to make operator
touch to hot surface of silencer.
13. Spark plug
14. Type and serial number
