Echo PB-1000 Service Manual

4
SERVICE INFORMATION
PB·1000 PB·1010

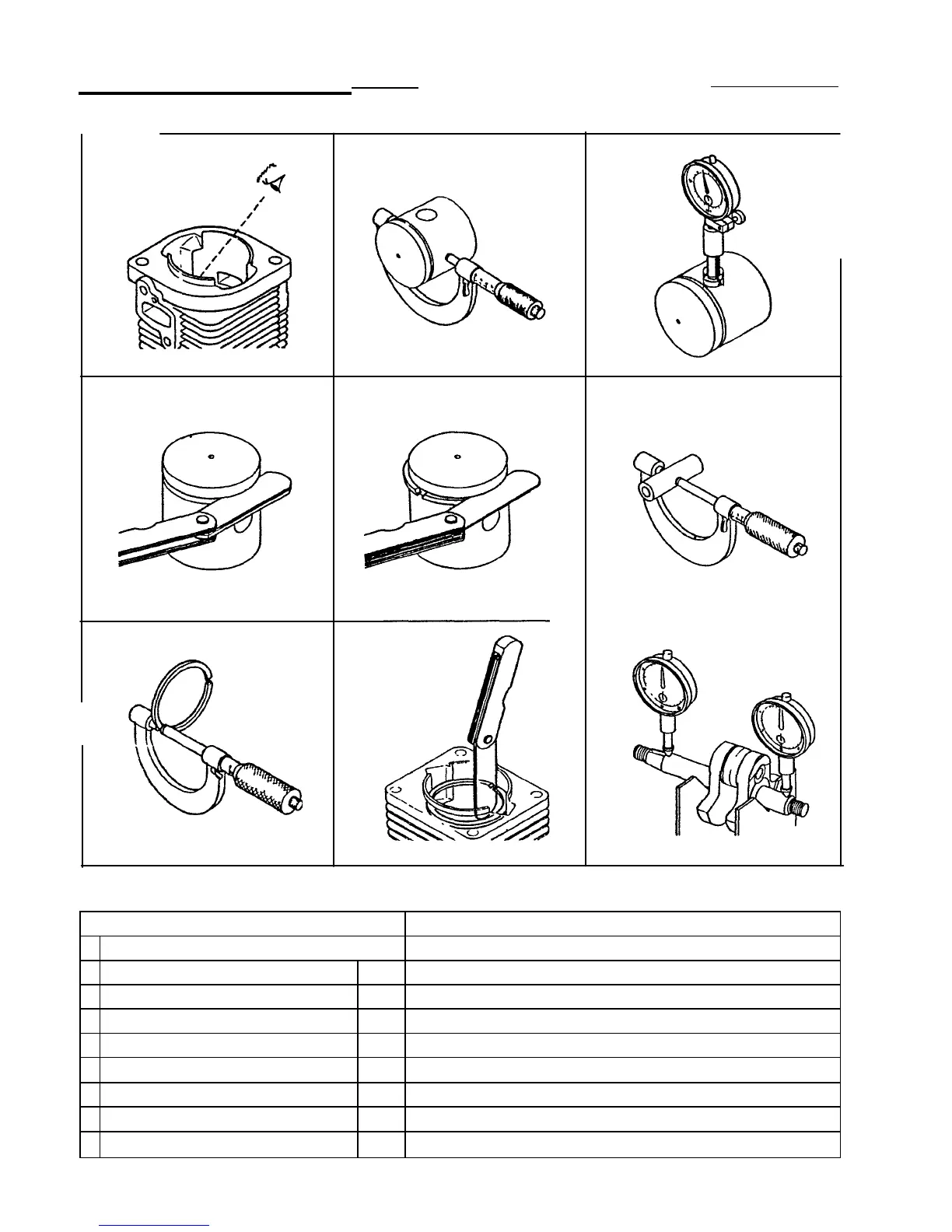

1·4 Service limits
A
15K1<J7
D
5K038A
B
51( ()(() A
E
5K043A
c
15K025A
F
5K016
G
H
K
5K042
15K1.S
5K1<J9
Models
PB-1000 PB-1010
A
Cylinder bore
When platin g is worn and aluminum can be seen
8
Piston outer diameter mm(in)
Min.
32.18 (1.2630)
c
Piston pin bore mm(in)
Max.
8.028 (0.3161)
D
Piston ring groove mm(in)
Max.
1.6 (0.063)
E
Piston ring side clearance mm(in)
Max.
0.1 (0.004)
F
Piston pin outer diameter mm(in)
Min.
7.98 (0.3142)
G
Piston ring width mm(in)
Min.
1.45 (0.057)
H
Piston ring end gap mm(in)
Max.
0.5 (0.02)
K
Crankshaft runout mm(in)
Max.
0.05 (0.002)
