- 4 -

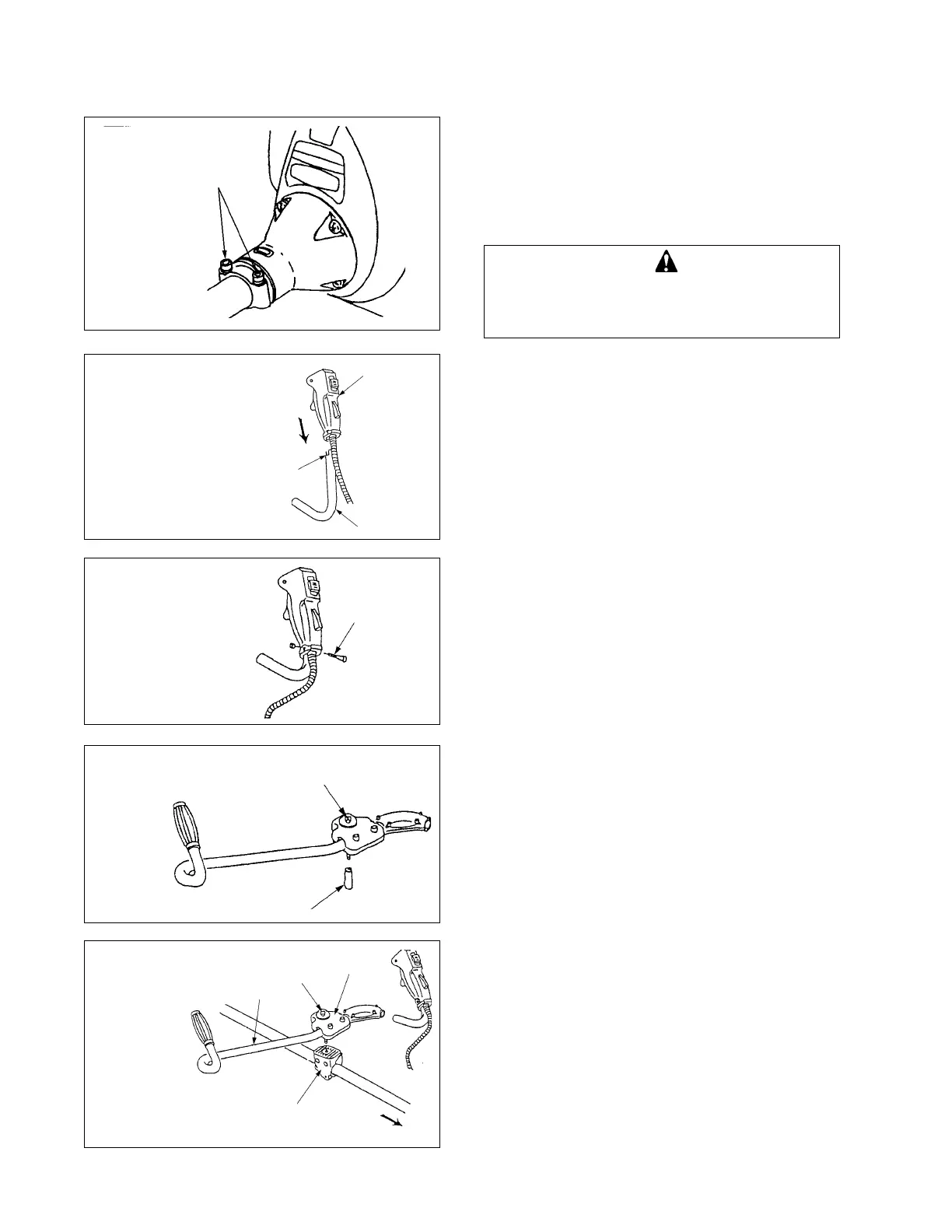

ASSEMBLING
DRIVE SHAFT
• Stand engine uprignt on a level floor.
• Loosen bolts at drive shaft end of the engine.
• Fit drive shaft assembly ensuring that the drive
shaft is correctly engaged.
• Tignten bolts to fasten drive shaft assembly.
WARNING DANGER
NEVER START ENGINE WITHOUT
DRIVESHAFT ASSEMBLY INSTALLED.
THIS COULD RESULT IN SERIOUS INJURY.
Remove bolt retainer tube from end of handle
assembling bolt (8 mm).
1. Handle assembling bolt (8 mm)
2. Bolt retainer tube
1
2
Install handle assembling bracket (upper) in handle
assembling bracket (lower) and fix handle by tightening
handle assembling bolt (8 mm) lightly.
1. Handle assembling
bracket (upper)
2. Handle assembling
bolt (8 mm)
3. Left handle
4. Handle assembling
bracket (lower)
5. To engine
1
2
3
4
5
Insert right hand grip assembly into right hand U-
handle and fit it to the slot for rotation prevention of
right hand U-handle.
Fit grip assembling bolt and secure the grip firmly.
1. Right hand grip assembly
2. Slot
3. Right hand U-handle
1
2
3
1. Grip assembling bolt
1
HANDLE
Bolts
