U-Ha n d l e Ki t in s t a l l a t i o n in s t r U c t i o n s
A
B
A
B
D
C
F
E
E

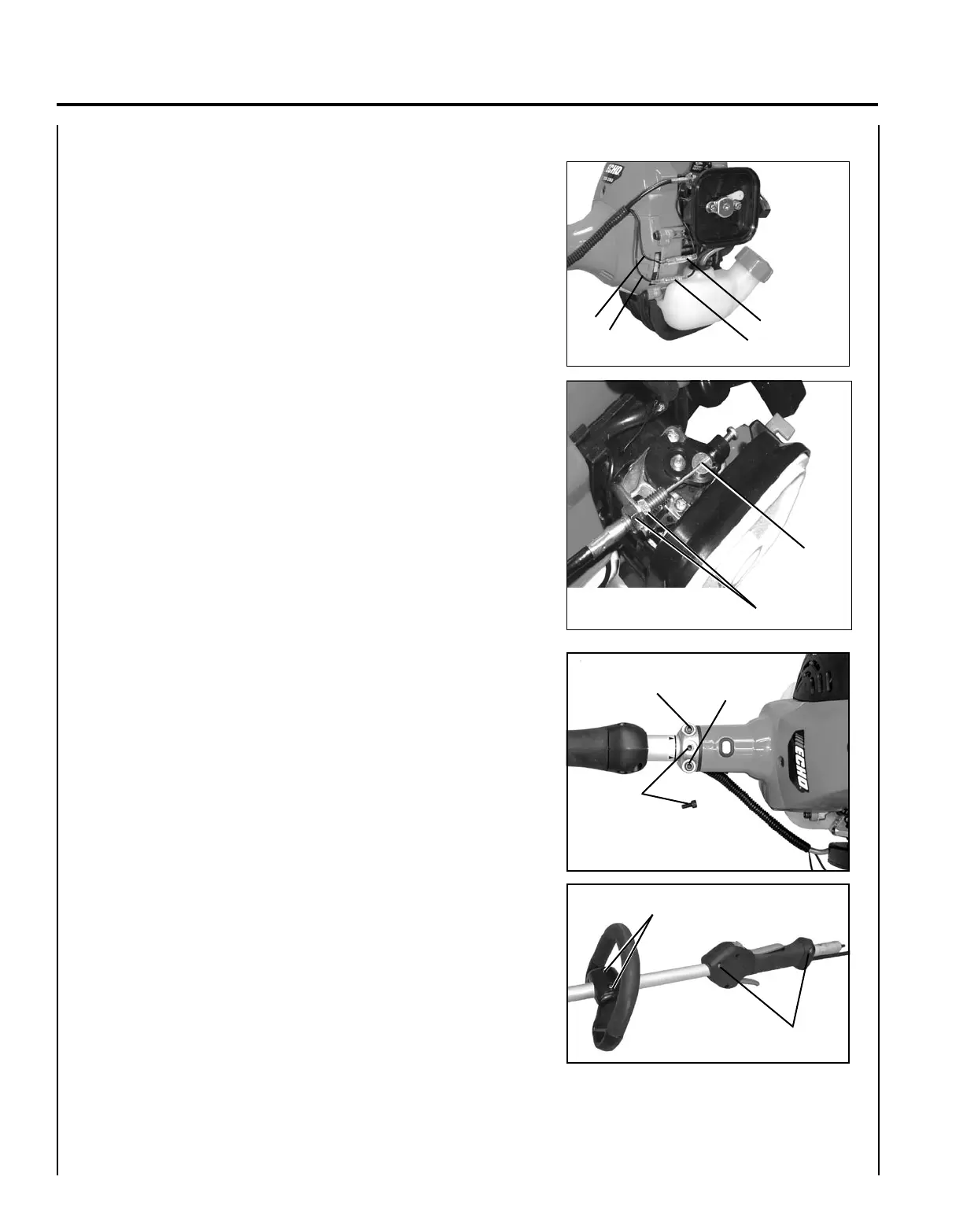

in s t a l l a t i o n
Tools Required: 8mm x 10mm Open End Wrench, 19 mm wrench
4 mm hex wrench, screwdriver
1. Close choke and remove air lter and cover.
2. Disconnect ignition stop leads (A) and (B).
3. Loosen nuts (C) and remove throttle linkage from carburetor
bracket.
4. Remove inner throttle cable from carburetor swivel (D).
5. Loosen the two (2) drive shaft clamp bolts (E) at engine drive
shaft clamp, and remove center drive shaft location bolt (F).
6. Pull drive shaft assembly from clutch case.
7. Loosen two (2) rear handle screws (G) and pull rear handle from
the drive shaft assembly.
8. Loosen two (2) screws (H) and remove front handle.
H
G
To Next Page
