Echogear EGLF1 - Concrete or Block Wall Installation Option

11
1
2

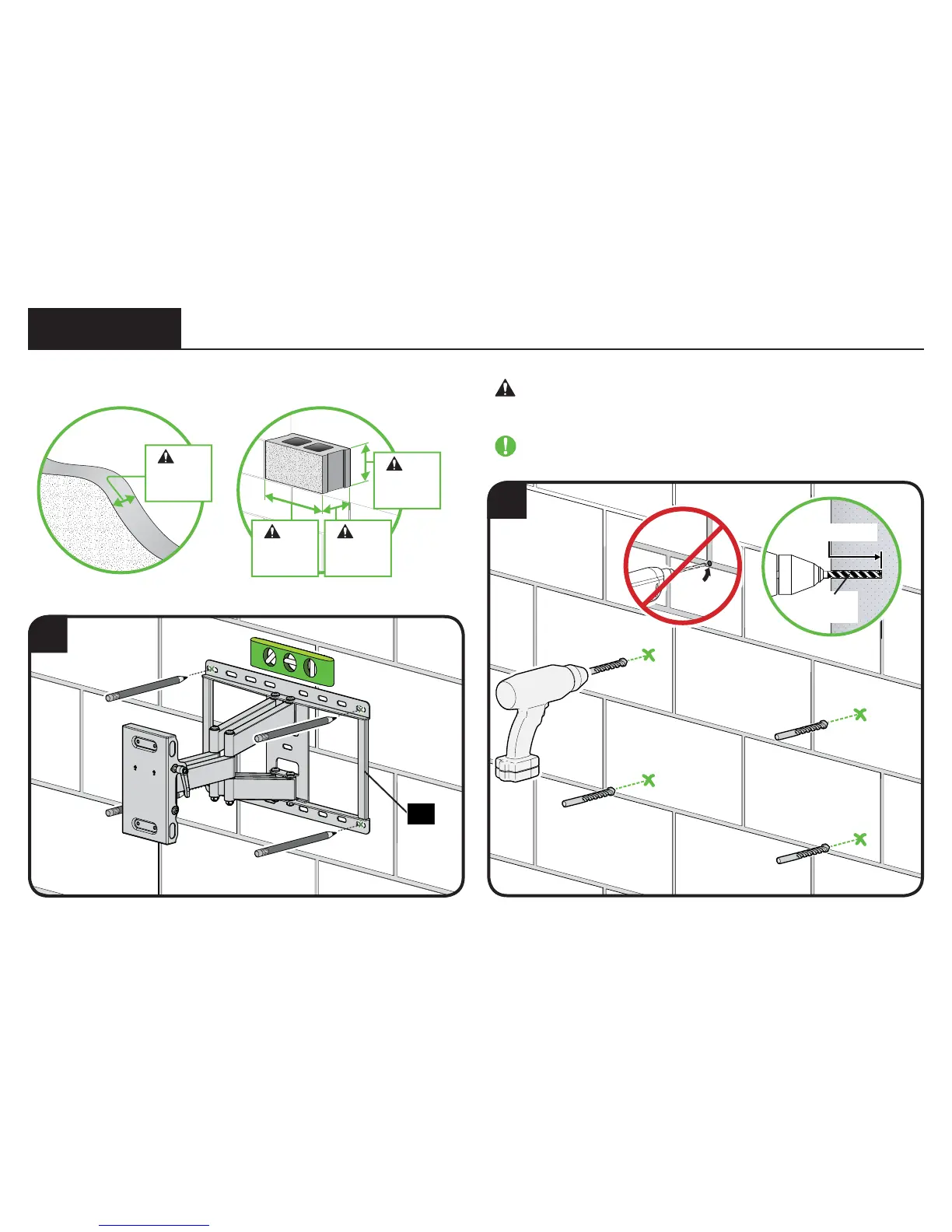

STEP 2B Solid Concrete or Concrete Block Option
Min.
8 in.
(203 mm)
Min.
16 in.
(406 mm)
Min.
8 in.
(203 mm)
Min.
8 in.
(203 mm)
3/8 in.
(10 mm)
3 in. (75 mm)
CAUTION: Avoid potential personal injuries and property damage!
Mount the wall plate assembly directly onto the concrete surface.
IMPORTANT: Never drill into the mortar between blocks.
