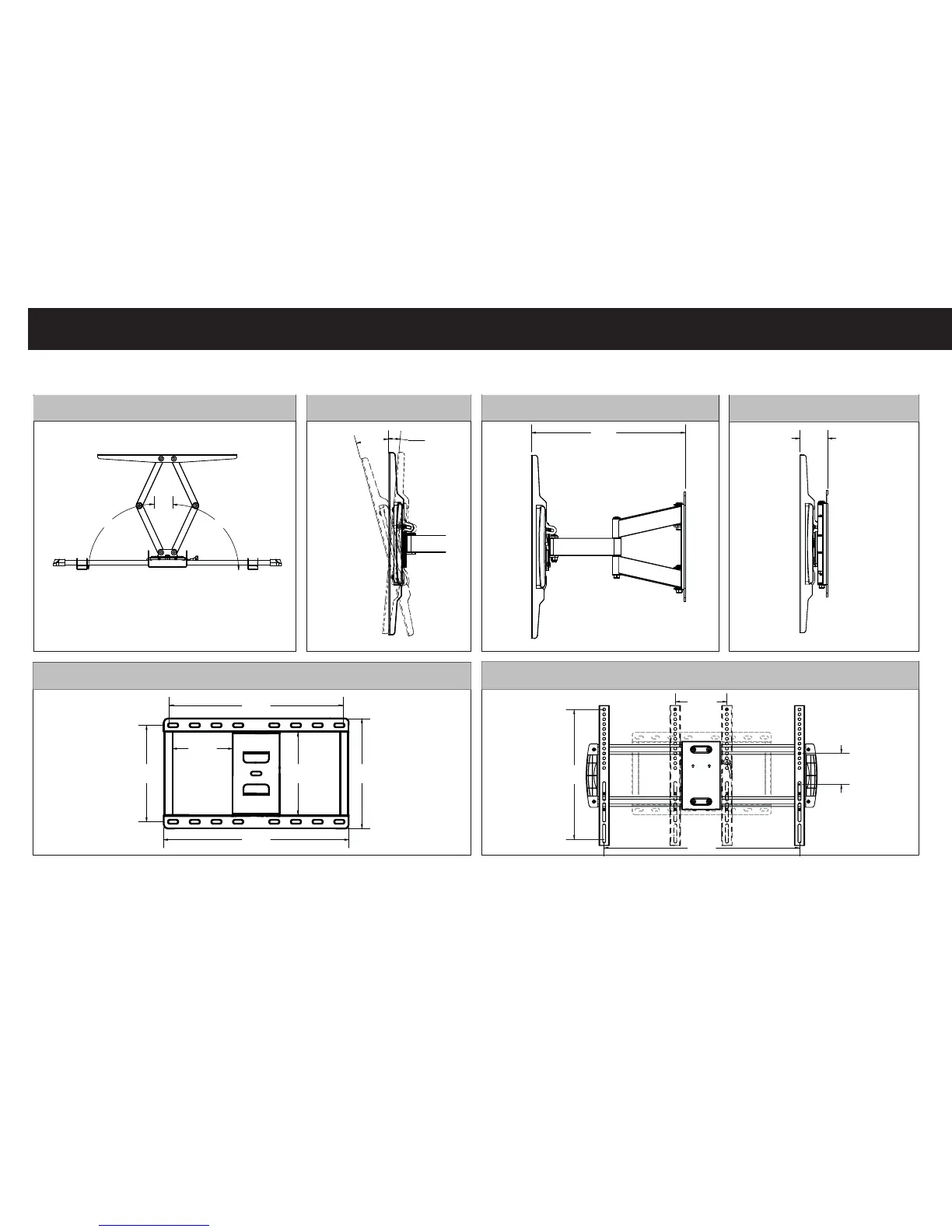

Echogear EGLF1 - Product Dimensions; Mounting Dimensions Overview

3
15.4 in.
[390.0 mm]
SIDE VIEW - EXTENDED
2.6 in.
[66mm]
SIDE VIEW - RETRACTED
15°
TILT
DOWN
5°
TILT UP
65°
65°
TOP VIEW - EXTENDED
15.7 in.
[400 mm]
23.6 in.
[600 mm]
5.9 in.
[150 mm]
3.9 in.
[100 mm]
TV INTERFACE
8.9 in.
[226 mm]
10.2 in.
[258 mm]
17.1 in.
[435 mm]
7.6 in.
[194 mm]
5.6 in.
[152 mm]
16.0 in.
[407 mm]
WALL PLATE
SIDE VIEW
Dimensions
