5
Installation Guide
email - support@aampglobal.com
tel - 866-931-8021
PMON-7022-AHD
7” Dash Mount 2 Input AHD Monitor
1. POWER Button
2. CH1/CH2 Video Select
3. Menu Selection (+)
4. MENU Button
5. Menu Selection (-)
6. MODE Select

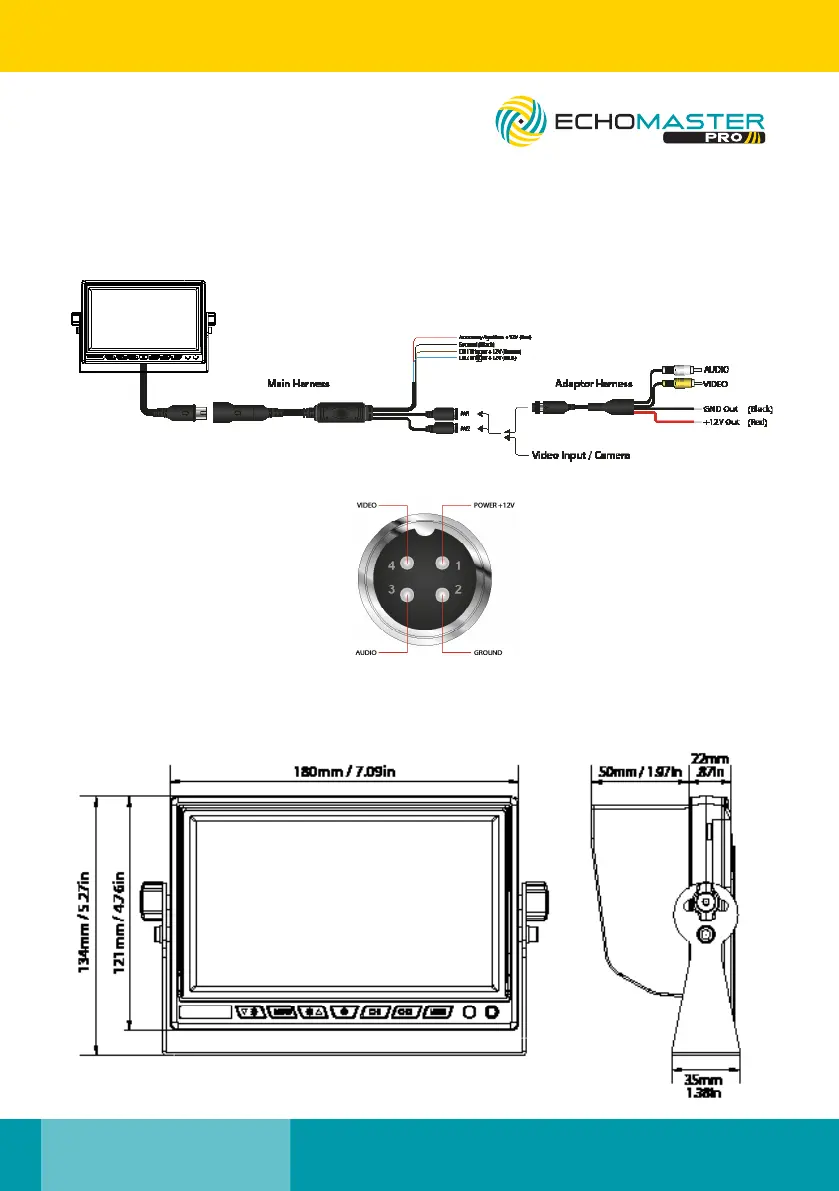

Wiring Diagram & Pin Out
Dimensions (mm/in)
