Attach shaft to the groove then mount plastic seat to tighten.

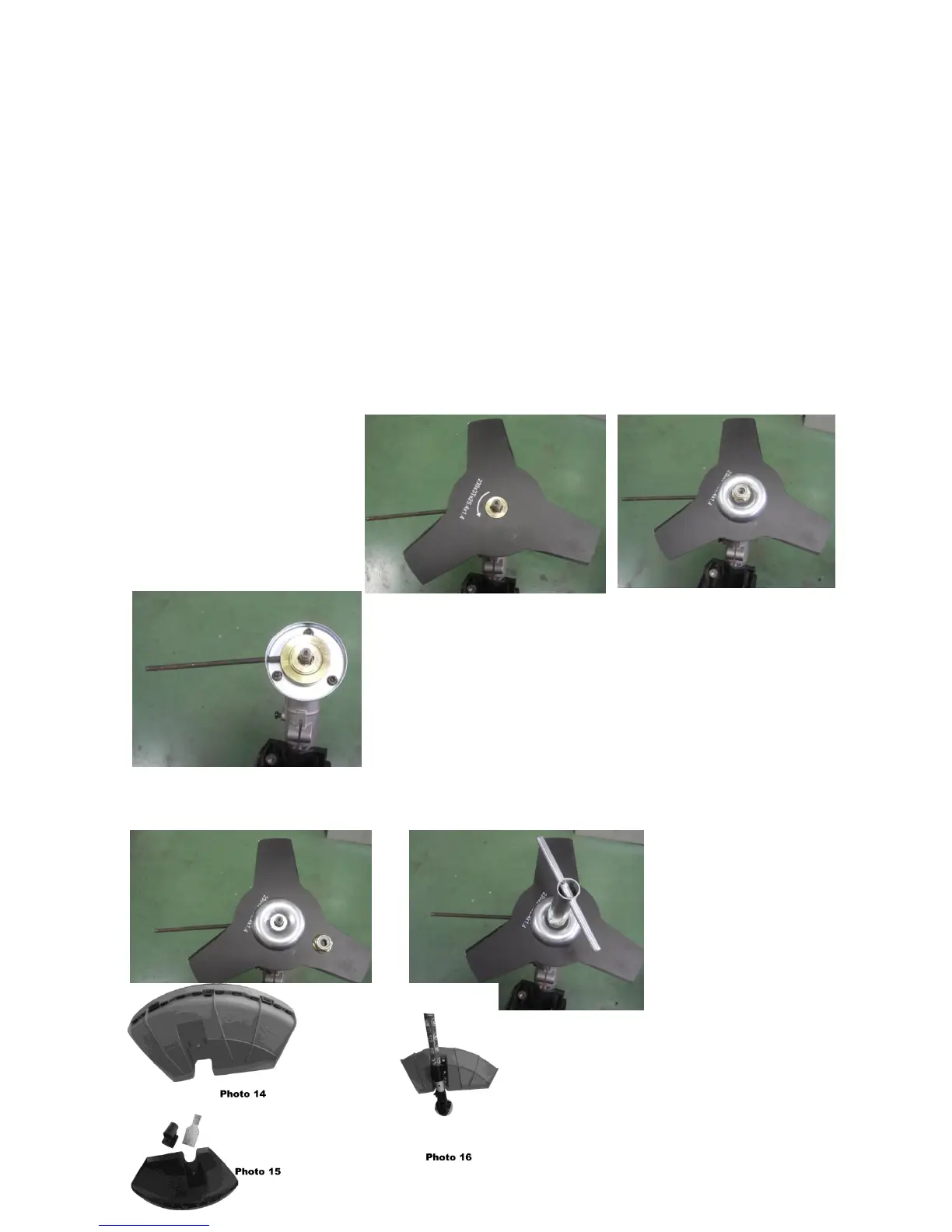

(See photo14-16)
2) Fitting the safety guard to the brush cutter
Mount two inner flanges to the safety guard then put on blade and blade retainer fixed by blade
retainer nut using hexagon socket wrench, You’ll need to line up the two holes in the side of the
cutting head assembly and insert the hex key in them to keep the blade still.(see photo 17-21)
Tighten Clockwise.
