Eclipse EC-EWWQR User Manual

www.spearandjackson.com.au 5
EC-EWWQR
Maintenance
Maintaining your Vice
1. Apply dry graphite or silicon based lubricant to the main screw to keep it operating smoothly and prevents any
sawdust from building up in the threads.
2. If saw dust does build up on the vice threads, use a blade or bit cleaner to remove the built up dust.
1. Flat Coil Spring
2. Nut
3. Back Jaw
4. Front Jaw
5. Guide Rod (2)
6. Main Screw
7. Torsion Bar
8. Back Stop
9. Main Handle
10. Balled End (2)
11. Retaining Rod
12. Pin
13. Finger Bolt
14. Vice Dog
15. Lever
16. Washer
17. Cotter Pin
18. Washer -Wavy
19. Hex Bolt (2)
20. Washer (2)
21. Half Nut
22. Nut Housing

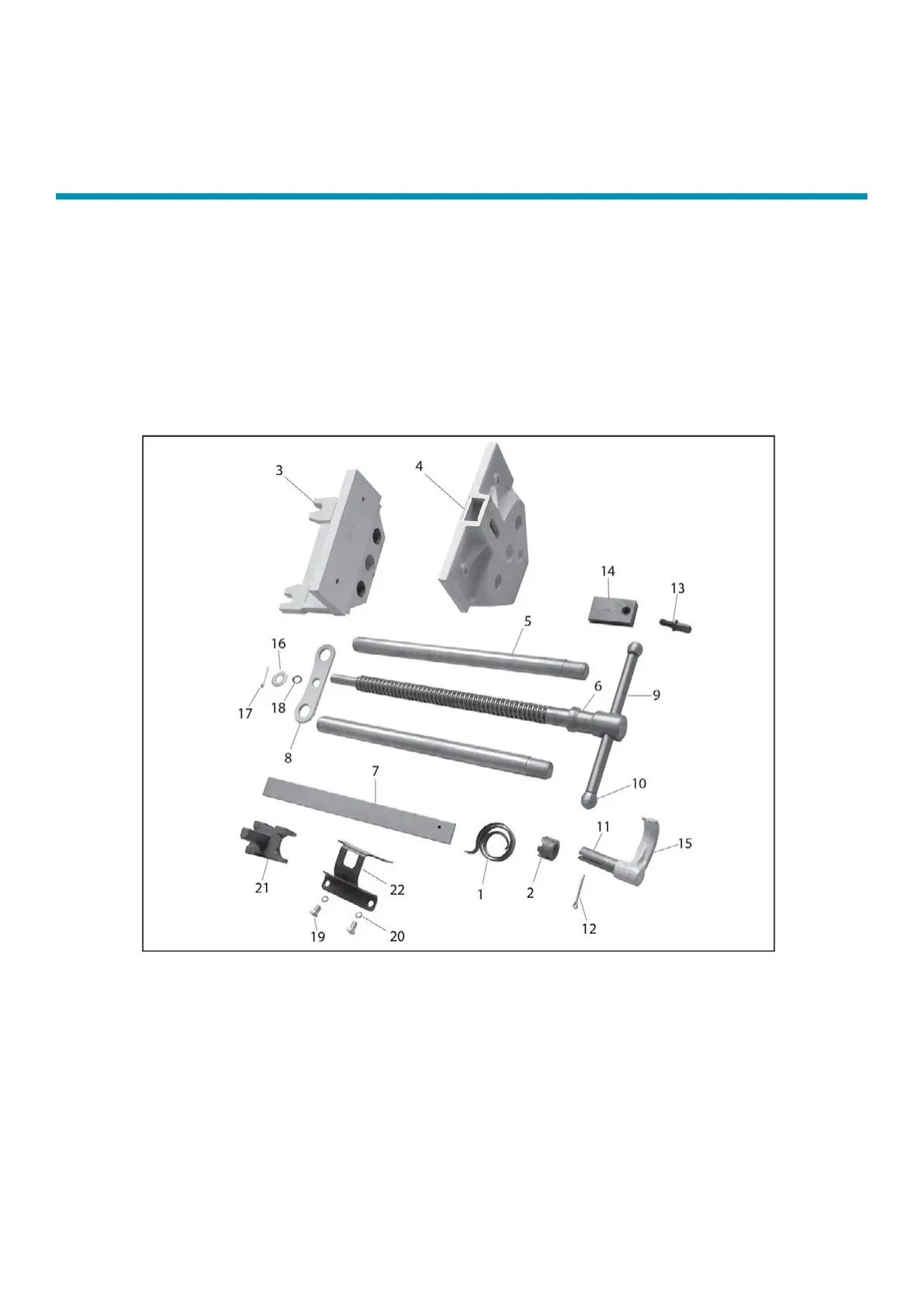

Parts List
