4
EC-EWWQR
Mounting Cont...

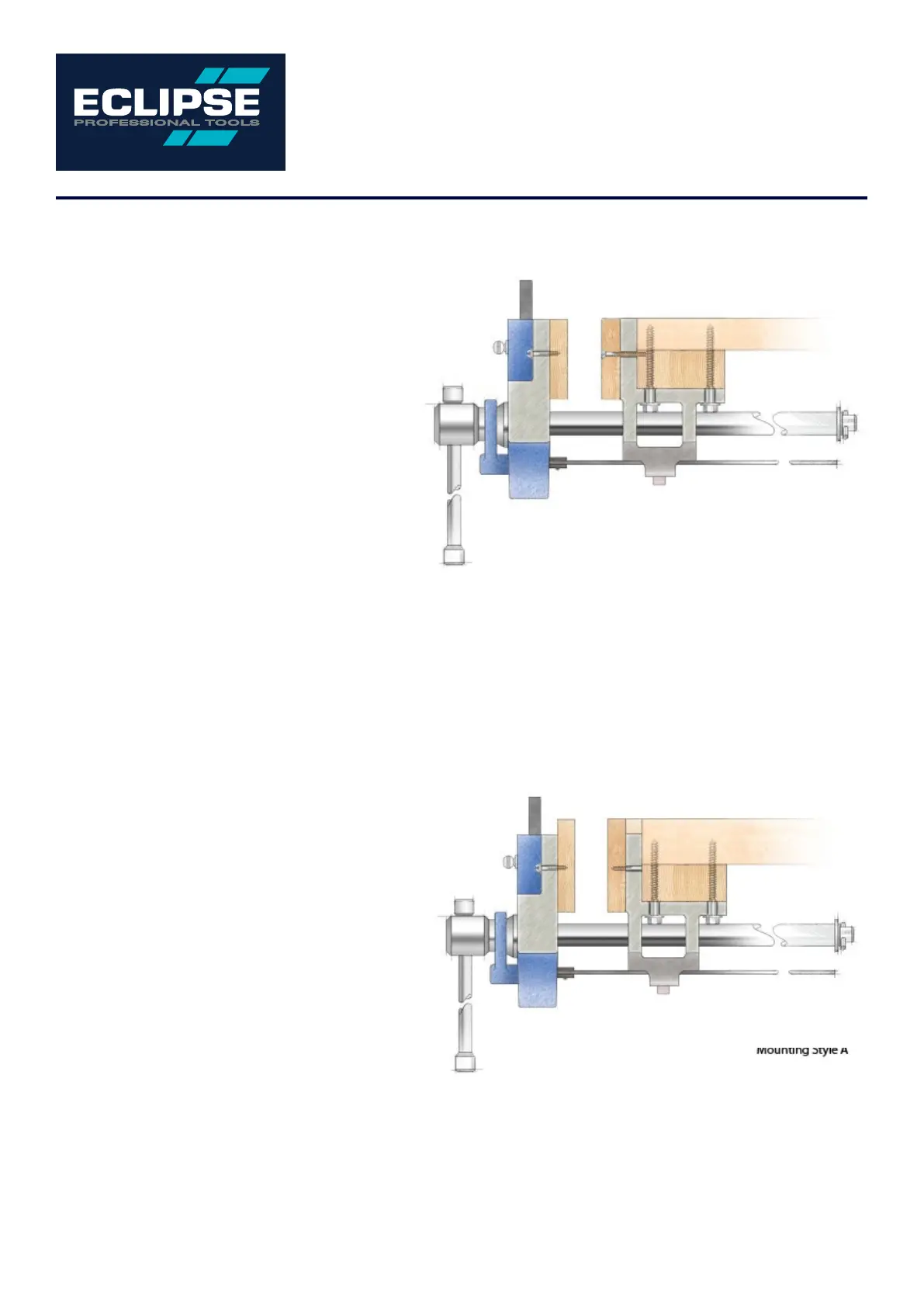

Mounting Style B
1. With the help of another person, hold the vice up
against the workbench in the desired location.
Mark the mountings holes with a pencil.
2. If the workbench is less than 2-3/8” thick,
use a shim, as shown in figure 2, to adjust the
workbench to 2-3/8” thick
3. Use a ¼” drill bit for drilling pilot holes in the
work bench for the Lag Screws
4. Mount the vice to the workbench with the 4 lag
screws (5/16” x 1-3/4” Lag screw and 5/16”
Washer)
5. If you are using a shim make sure that the lag screws go completely through the shim and into the workbench.
6. Attach wood jaw facings. For the stationary jaw, wooded jaw facings should be pre-drilled using a 1/8” drill bit.
Counter-sink the drilled hole to allow the woodscrews to fit into the jaw. You want to make sure that the screws
do not stick out past the wooden jaw facing, as this will damage your work piece when clamping with the vice.
Mounting Style C
1. With the help of another person, hold the vice up
against the workbench in the desired location.
Mark the mountings holes with a pencil.
2. If the workbench is less than 2-3/8” thick,
use a shim, as shown in figure 2, to adjust the
workbench to 2-3/8” thick
3. Use a ¼” drill bit for drilling pilot holes in the
work bench for the Lag Screws
4. Mount the wooden jaw to the stationary jaw of
the vice. Shown in the figure to the, the wooden
jaws for this purpose are taller than the vice.
This is for extra clamping capacity.
5. Reinforce the vice to the workbench with the 4 lag screws (5/16” x 1-3/4” Lag screw and 5/16” Washer)
6. If you are using a shim make sure that the lag screws go completely through the shim and into the workbench.
