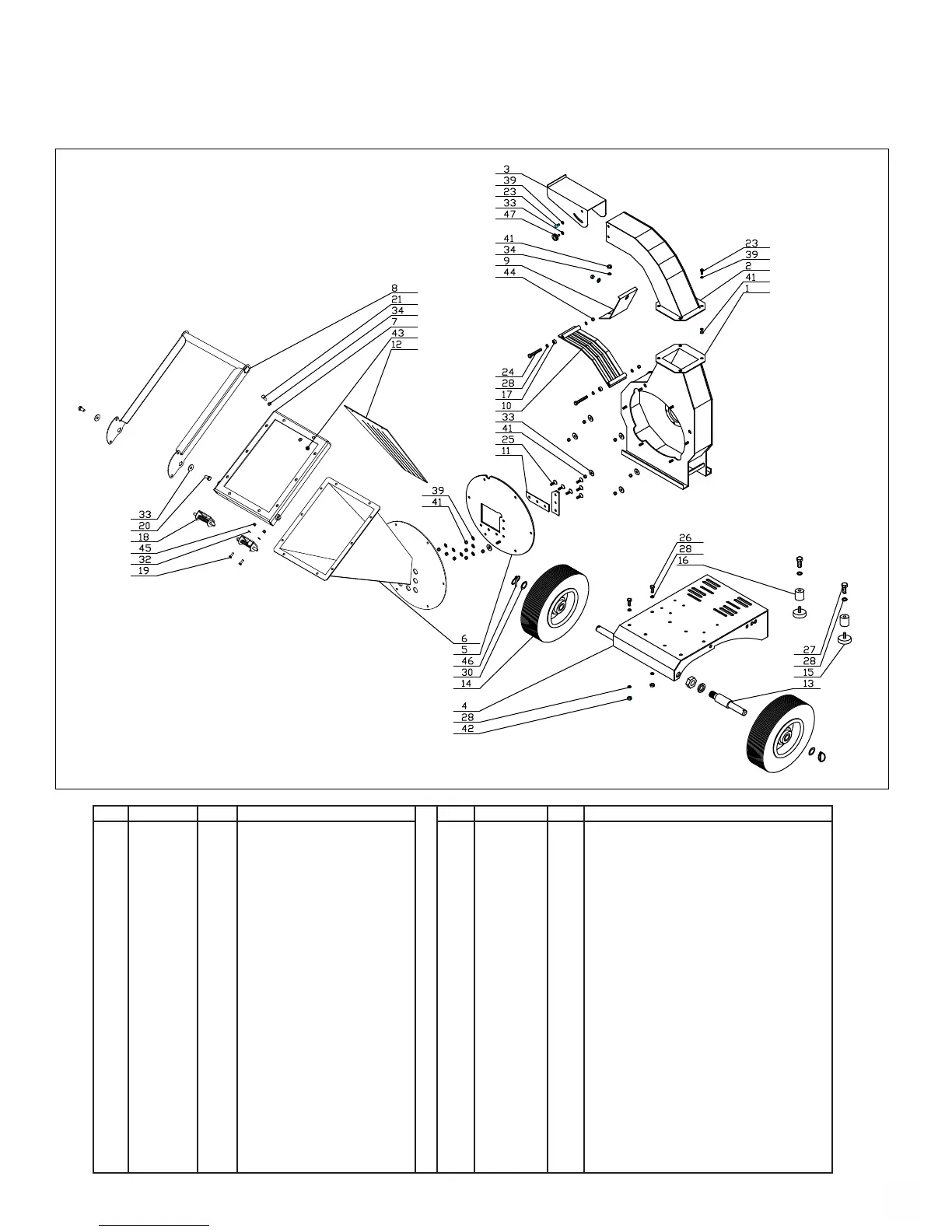

EC 120 - Chassis Components
18
ID CODE QTY DESCRIPTION ID CODE QTY DESCRIPTION
1 BIO101VD 1 MACHINE BODY 21 40100043 10 SCREW UNI 5739 M10X25
2 BIO102VD 1 DISCHARGE TUBE 23 40100077 6 SCREW UNI 5739 M8X20
3 BIO104VD 1 DISCHARGE DEFLECTOR 24 40100024 2 SCREW UNI 5737 M10X140
4 BIO098VD 1 FRAME 25 40100139 6 SCREW UNI 5933 M8X25 HARDTEMPERED
5 BIO601VD 1 FRONT FLANGE 26 40100298 8 SCREW UNI 5931 M10X25
6 BIO123VD 1 HOPPER 27 40100281 2 SCREW UNI 5739 M10X16
7 BIO125VD 1 HOPPER FLANGE 28 40300003 22 WASHER D10 UNI 6592
8 BIO124VD 1 HANDLE 30 SRM203ZD 2 SPACER 25,5X35X2
9 BIO537VD 1 SIDE COVER 32 40300014 4 WASHER D6X24
10 BIO103VD 1 SCREEN 33 40300013 10 WASHER D10X30
11 BIO557D 2 FIXED KNIFE 34 40300031 21 WASHER D8X24
12 BIO404D 1 PVC SHEILD 39 40300002 18 WASHER D8 UNI 6592
13 BIO580ZD 2 WHEEL AXLE 41 40200040 20 SELFLOCKING NUT M8 DIN 982
14 42900002 2 TIRE WHEEL 42 40200003 8 NUT M10 DIN 980
15 42500018 2 SILENT BLOCH 43 40200002 10 NUT M8 DIN 980
16 BIO555ZD 2 SILENT BLOCK SUPPORT 44 40200038 2 SELFLOCKING NUT M10 DIN 982
17 BIO563ZD 2 BUSH 45 40200051 4 SELFLOCKING NUT M6 DIN 982
18 BIO126D 2 SPRING PIN 46 41300002 2 SPRING PIN D6
19 40100032 4 SCREW UNI 5739 M6X20 47 42200005 1 KNOB M10
20 40100030 2 SCREW UNI 5739 M10X20
