Fusing and Setting
-Fusing position
The requirement to protect photovoltaic systems from overcurrent
conditions is defined in Article 690.9(A) of the NEC. Fuses are required
to protect cables and PV modules from line-line, line-ground and
mismatch faults. The sole purpose is to prevent fire and safely open a
faulted circuit if an overcurrent event were to occur. However, there are
some situations where fusing is not required and is defined by the
following:
Two Strings in Parallel (fusing not required)
So no need to fuse the PV array you built, or the connection between it
and controller.
LCD display screen info：battery present voltage
(Note: the inverter only works when 24V battery bank connected)
-Inverter to appliances
Before booting the inverter, the AC OUT ports should be wired with the
home socket or appliances first.

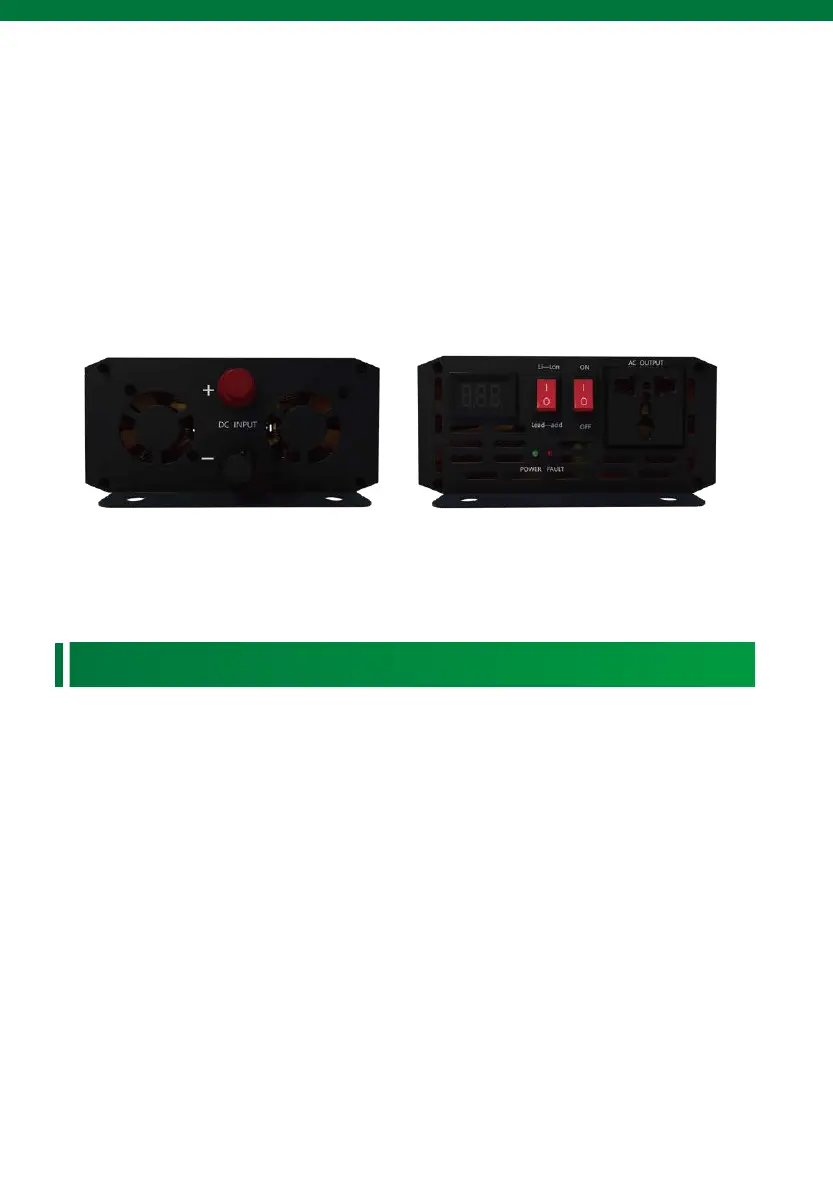

-Turn on the inverter
When all wirings are done, check if the battery type switcher is at Li-ion,
since it’s connected with lithium battery bank. The final step is to boot
the hybrid inverter by pressing the switch on its bottom.
-14-
