Seat
Handlebar
The handlebar should be adjusted for the user’s comfort and
the headset correctly tightened. To remove rotational play in an
aheadstem, loosen the clamping Allen bolts on the side of the stem.
Adjust the steering, and then tighten the ahead cap bolt at the top
of the stem. Finally, clamp the Allen bolts back.
Seat post safety
marking
Headset
adjustment bolt
Stem bolt
Allen screw
Allen screw

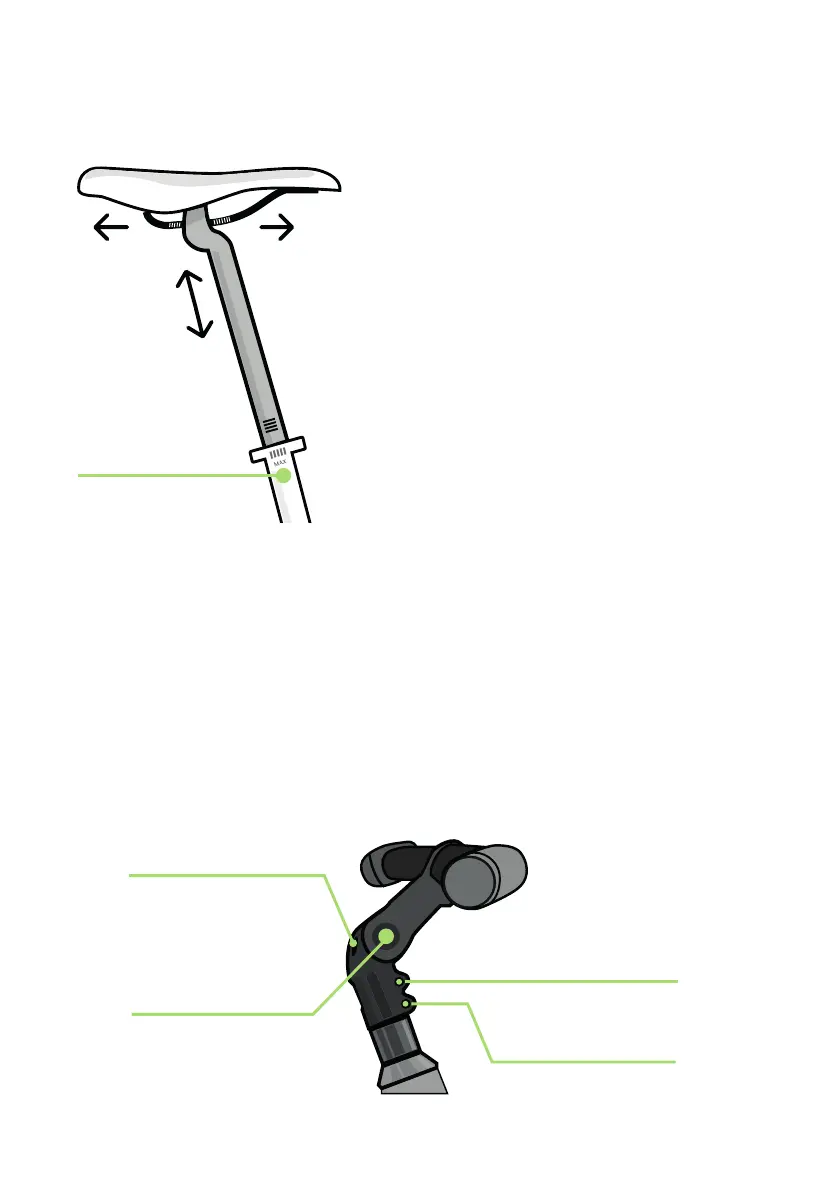

Adjust the seat post to the
desired height and clamp it
tightly. The seat pin should be
inserted into the frame so that
the safety marking on the pin
is hidden. If you can see the
marking, there is a risk of the
seat pin breaking during the ride.
Such an accident may also break
the frame under the seat.
Additional alignment of the
saddle may be achieved by
shifting it back and forth on its
rails underneath. Do not adjust
the saddle beyond the markings
on the rails.
