Ecoflam MAX GAS 40 P Operating Instructions

7
www.ecoflam-burners.com
EN
420010372800
A1 E-BCU Gas control unit
F6 Air pressure switch
M1 Electric motor
T1 Ignition transformer
Y Graduated rod for head adjustment
3 Air regulation in the burner head
5 Housing
8 Blast tube
10 Wieland socket
14 Burner hood
15 Burner flange
16 Reset key
17 Measuring point for gas pressure
103B Air regulation
113 Air intake
15
14
MAX GAS 40 LN P TC - 230V/50-60Hz
MAX GAS Gas
RANGE NAME BY FUEL TYPE
MAX 40 40 kW
MODEL SIZE (Gas: kW; Oil: kg/h)
LN Low NOx Class 3 GAS EN676 (<80 mg/kWh)
- Standard Class 2-GAS EN676 (<120 mg/kWh)
EMISSION COMBUSTION TYPE
P 1 stage
OPERATION TYPE
TC Short head
TL Long head
HEAD TYPE
MET Natural gas
LPG LPG
FUEL
230V/50-60Hz 230 Volt, 50-60 Hz
ELECTRICAL SUPPLY TO THE SYSTEM
Scope of delivery
The burner is delivered in a modular system of
packagings i.e. separate set/box:
BBCH: Burner Body with Combustion Head
with flange.
- 1 bag including :- multilanguage technical manual.
- wieland plug.
- spanner.
- screws, nuts and washer.
GT: separate Gas Train
KIT & ACS are managed and delivered separately

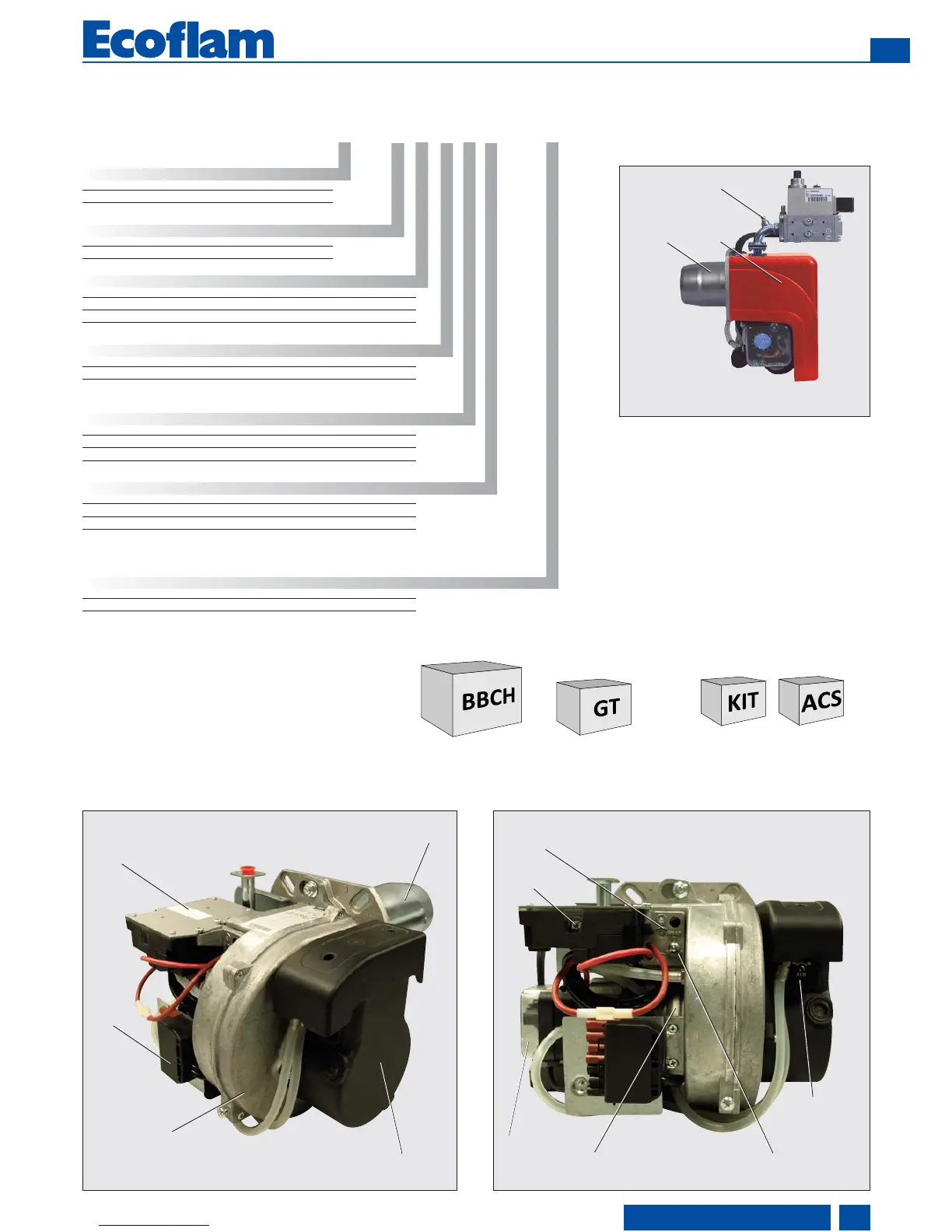

Contents - Burner description
A1
8
113
10
5
3
103B
Y
M1
F6
16
KIT & ACS delivered separately
17
