EcoFlow PowerOcean - Electrical Connection

8|
• Please purchase cables that meet local certification standards.

- EcoFlow PowerOcean
LFP Battery
• One junction box supports
a maximum of three
battery modules.
- Smart meter
• Supports power sampling
PV Input cable
Conductor cross-sectional area: 4 mm² to
6 mm² with a rated voltage greater than or
equal to 1000V DC
Battery power cable
Conductor cross-sectional area: 4mm² with
a rated voltage greater than or equal to
1000V DC
Battery communication cable with shield
CAT 5E 8*0.2mm²
Smart meter communication cable
CAT 5E 8*0.2mm²
COM terminal communication cable-EPO
Shielded Twisted Pair 2*0.5mm²
Grid cable
4 mm² to 6 mm²
Backup cable
4 mm² to 6 mm²
Ground cable
6mm²
Network cable

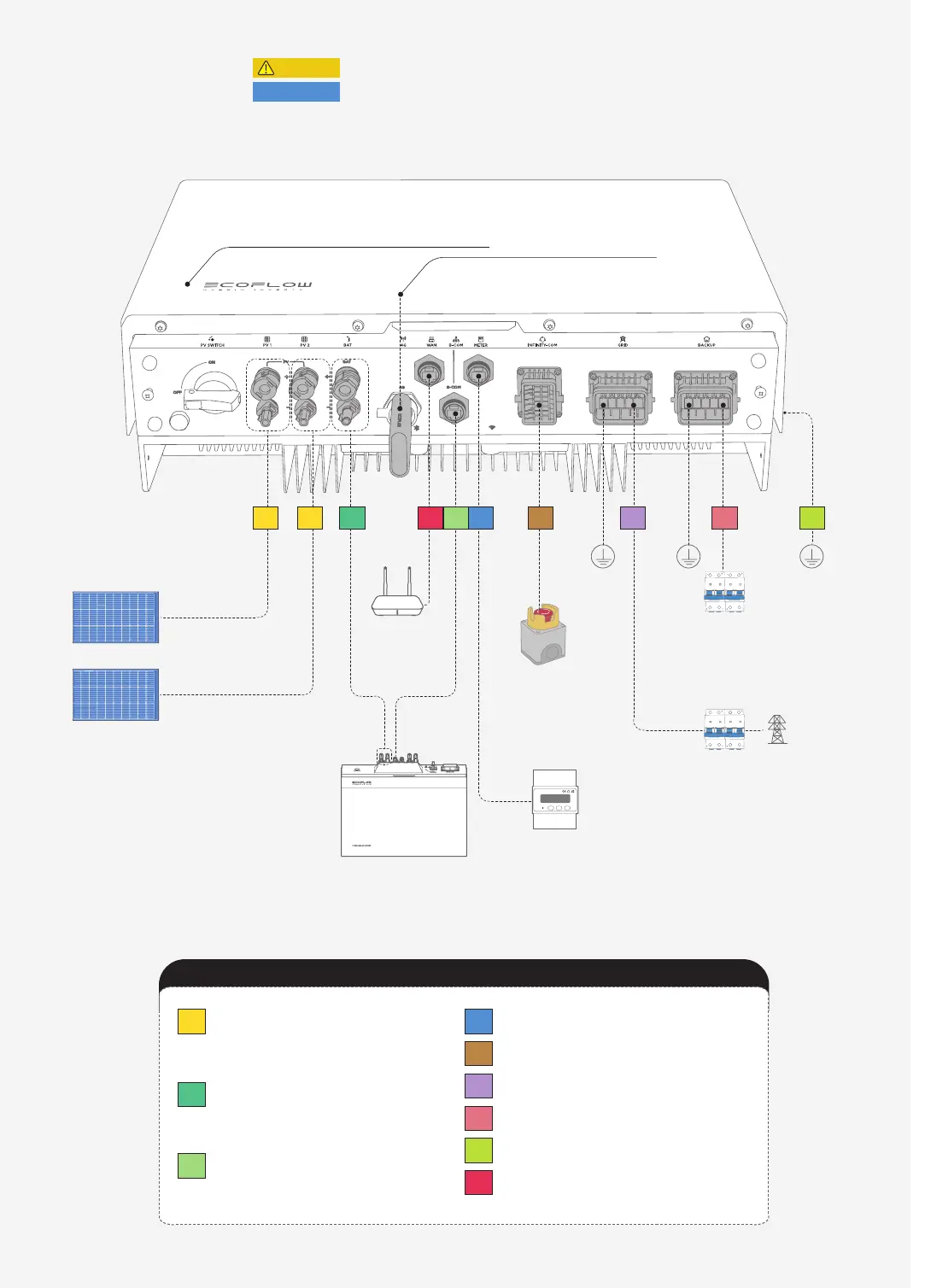

LEGEND









• All electrical connections must be carried out by a professionally trained and certified electrician.

- PV string
• EcoFlow PowerOcean Hybrid Inverter
supports the input from two PV strings.
• Sold separately
- (Optional) 4G module
• For network
• Sold separately
- AC switch
• Recommended: an AC
circuit breaker with a
rated current of 32 A
• Not included
- AC switch
• Use only appropriately
specied, compatible AC
switch according to the
type of load.
 
 


- EcoFlow PowerOcean Hybrid Inverter
- Router
• For network
• Not included
- Emergency
Stop(EPO)
• Sold separately
 
8|
Electrical
Connection
