Network Inclusion: Key Points to Remember
Controller inclusion mode must be activated BEFORE starting sensor inclusion mode.
The sensor can only be included in one network at a time. The sensor must be excluded from one network before inclusion in another.
The sensor automatically enters inclusion mode at power-up.
Exclusion mode on the senor is initiated following the same exact procedure as inclusion.
Installation
No tools required. Drill, screwdriver, pencil optional.

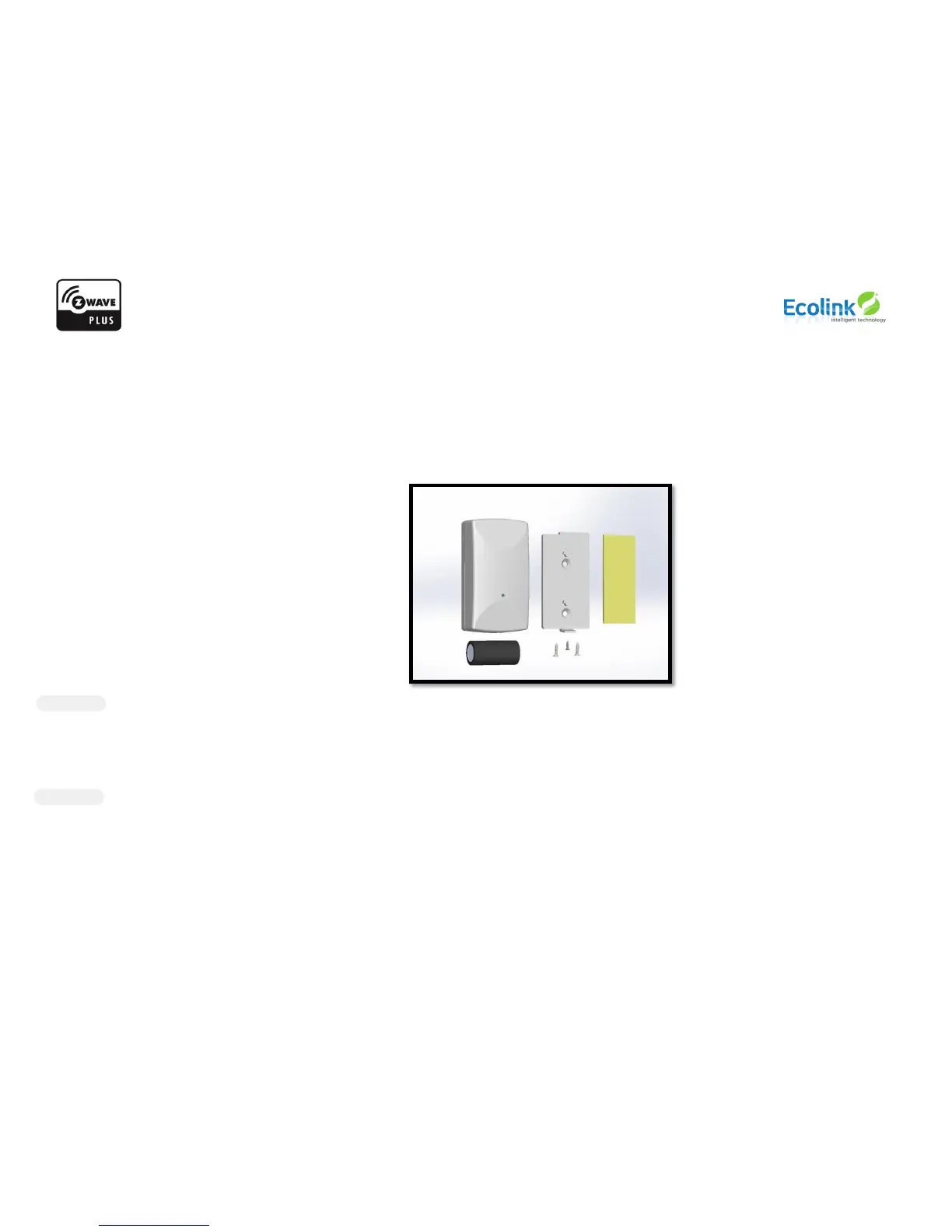

The package contains the following:
1- Sensor
1- Sensor mounting bracket
2- mounting bracket screws
1- sensor to bracket screw
1- battery
1- piece of adhesive tape
STEP ONE Identify Location for Tilt Sensor:
Choose a mounting method that is appropriate for your garage door. It is very important that the Tilt sensor be located on the top
section of a multi-panel garage door. This will be the first section to tilt when the door is opened and the last to move to the vertical
position when closing.
STEP TWO Mount the Tilt sensor to a clean dry surface WITH THE ARROW ON THE SIDE OF THE SENSOR POINTING UP
Before you mount the sensor, make certain that the arrow on the side of the Tilt sensor is pointing UP when assembled in the
mounting bracket.
The sensor can be mounted using adhesive tape and/or screws. Caution: Use of the screws is only recommended for garage doors
that are thicker than the screws are long. Use the adhesive tape for any garage door that is thinner than the length of the provided
screws (including many modern metal garage doors).
