Ecolink Z-Wave User Manual

© 2013 Ecolink Intelligent Technology Inc. PN TLT-ZWAVE2 R1.02

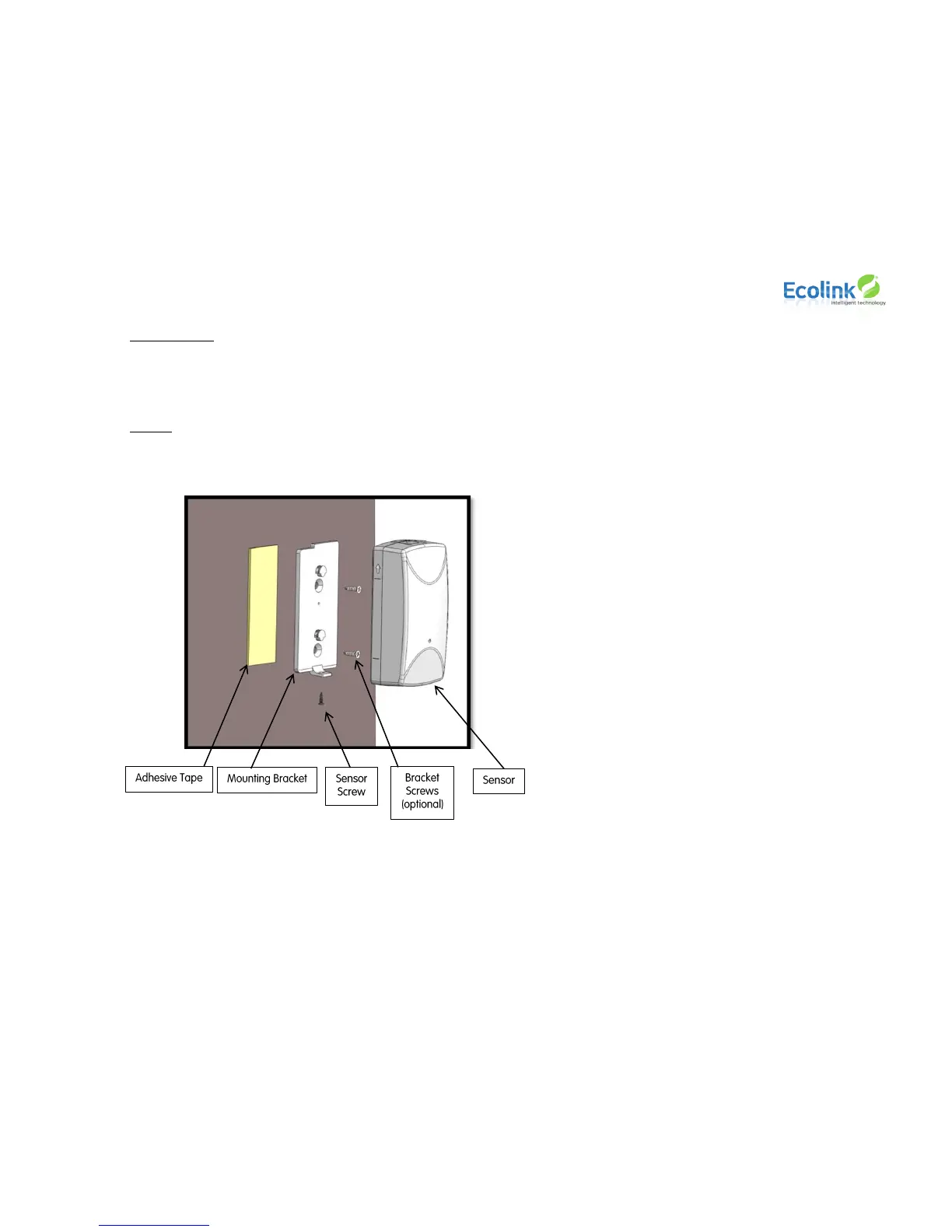

Adhesive Tape:
Make sure that the desired mounting location on the door is clean and dry. The adhesive tape can withstand the temperature and humidity conditions of a typical garage.
However, it is recommended that the sensor be mounted when air or surface temperatures are not extreme. Installing the adhesive tape when the conditions are right
promotes a good long-lasting adhesive bond between the bracket and the surface of the door. Peel back the outer layer of one side of the adhesive tape, stick the tape to the
garage door and press firmly. Peel back the outer layer on the other side of the tape and press the mounting bracket firmly onto the adhesive tape.
Screws:
Place the mounting bracket in the desired position on the garage door. Use the mounting bracket as a template to mark the location of the screw holes with a pencil. Drill a small hole through each
of the marked locations. Use a screwdriver to fasten the mounting bracket to the door.

Ecolink Z-Wave Specifications

General

Brand	Ecolink
Model	Z-Wave
Category	Accessories
Language	English

Summary

Product Overview

Product Specifications

Network Inclusion

Start Inclusion Mode

Place the Z-Wave controller into inclusion mode first.

Activate Sensor Inclusion

Insert the battery to activate the sensor's inclusion mode.

Test Sensor Functionality

Flip the sensor to verify it transmits open/closed status.

Network Inclusion Key Points

Installation

Identify Location for Tilt Sensor

Choose a mounting location on the top section of a multi-panel garage door.

Mount the Tilt Sensor

Mount the sensor with the arrow pointing UP using adhesive tape or screws.

Mounting Methods

Adhesive Tape Mounting

Apply adhesive tape to a clean, dry surface for mounting the bracket.

Screw Mounting

Use screws for thicker garage doors, marking holes with a pencil and drilling.

Important Orientation
