Electrode Chamber Installation

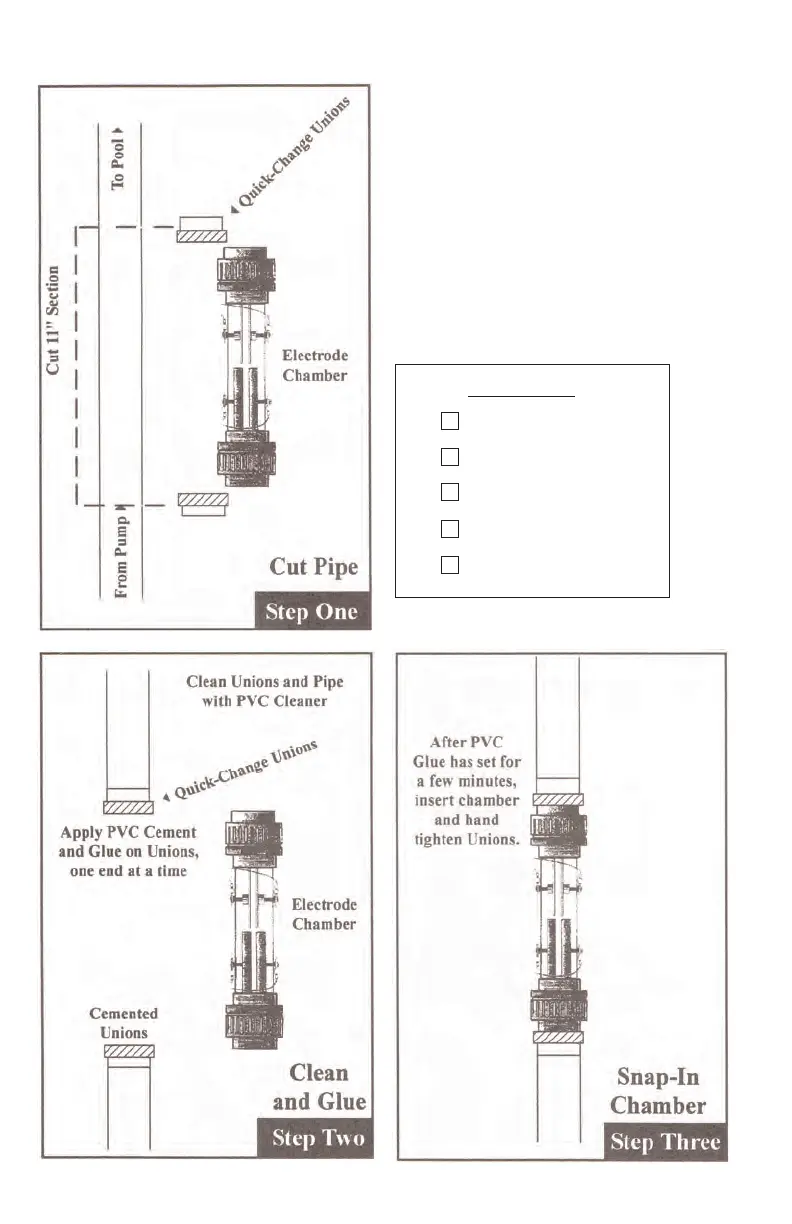

The ECOsmarte Electrode Chamber
may be installed either between the
pump and filter or, preferably, after
the filter. The titanium electrodes
should be aligned nearest the pool
(see diagram). If you have a spa in
line with your pool filter system,
ensure the Electrode Chamber is
located bef
ore the valves that divide
return water to the pool and spa.
Tool List:
Hack Saw
PVC Cleaner
Felt-Tip Marker
Tape Measure
PVC Cement
16
