A58F2P-M4 USER MANUAL
3

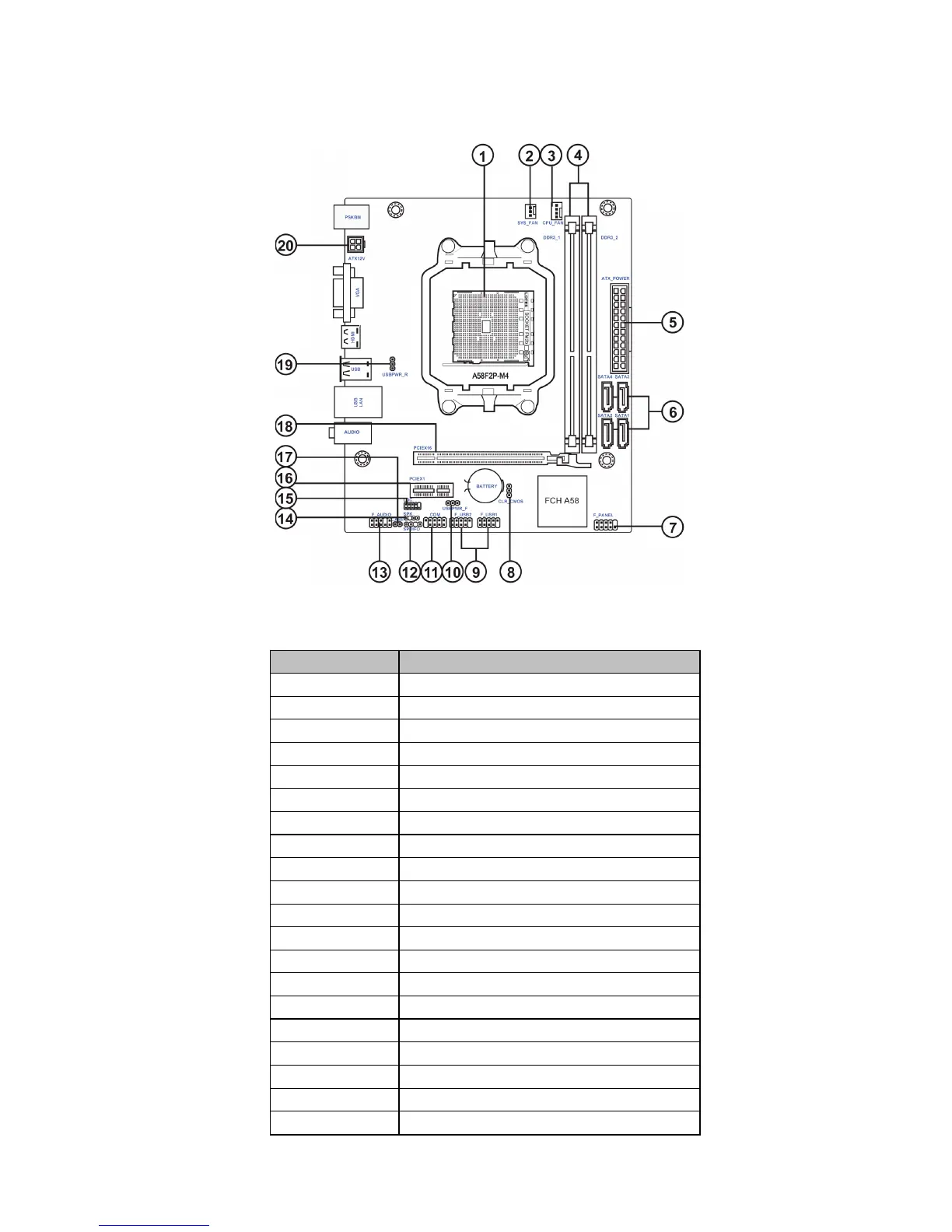

Motherboard Components
Table of Motherboard Components
LABEL COMPONENTS
1. CPU Socket Socket FM2 for AMD A series processors
2. SYS_FAN System cooling fan connector
3. CPU_FAN CPU cooling fan connector
4. DDR3_1~2 240-pin DDR3 SDRAM slots
5. ATX_POWER Standard 24-pin ATX power connector
6. SATA1~4 Serial ATA 3Gb/s connectors
7. F_PANEL Front panel switch/LED header
8. CLR_CMOS Clear CMOS jumper
9. F_USB1~2 Front panel USB 2.0 headers
10. USBPWR_F Front panel USB power select jumper
11. COM Serial port header
12. SPDIFO SPDIF out header
13. F_AUDIO Front panel audio header
14. SPK Speaker header
15. LDC Debug Card header
16. PCIE1 PCI Express x1 slots
17. CASE Case open header
18. PCIEX16 PCI Express slot for graphics interface
19. USBPWR_R Rear USB/PS2 power select jumper
20. ATX12V 4-pin +12V power connector
