Installing the Motherboard
Connecting I/O Devices

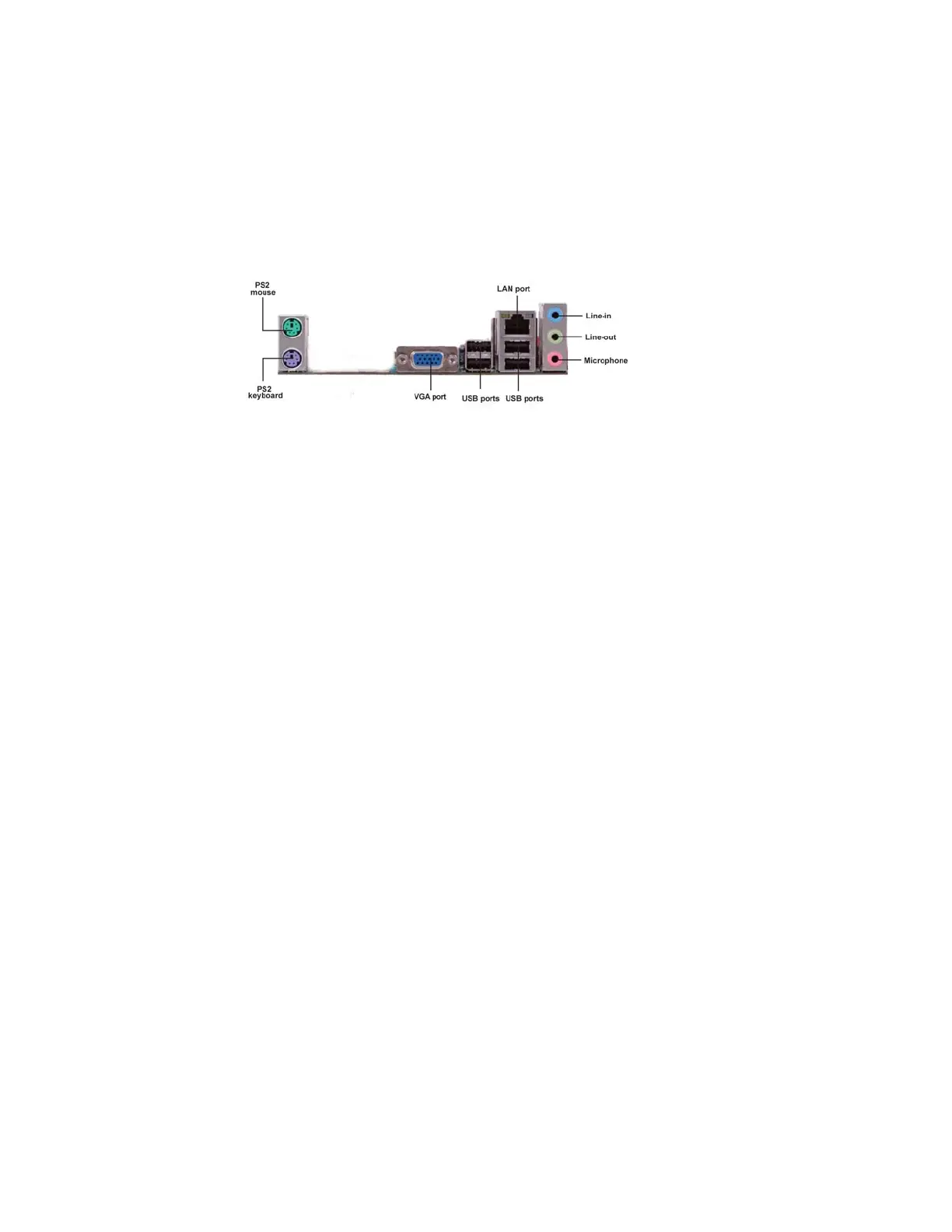

The backplane of the motherboard has the following I/O ports:
PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device.
PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.
VGA Port Connect your monitor to the VGA port.
LAN Port Connect an RJ-45 jack to the LAN port to connect your
computer to the network.
USB Ports Use the USB ports to connect USB devices.
Audio Ports
Use the three audio jacks to connect audio devices. The first
jack is for stereo line-in signal. The second jack is for
stereo line-out signal. The third jack is for microphone.
