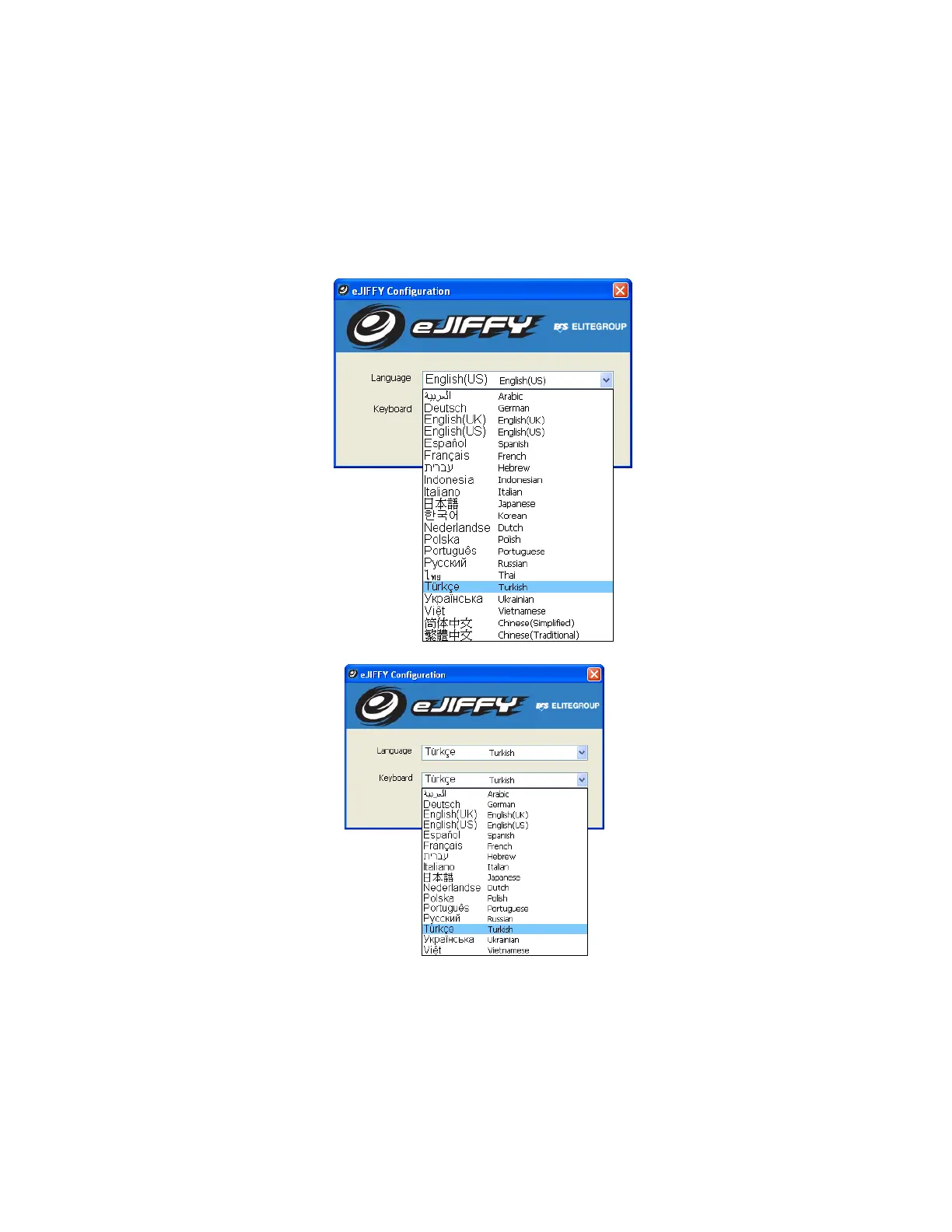

Setting Up eJIFFY
55
3.
After setting up eJIFFY
under W
indows, you can switch eJIFFY display/keyboard
language from English to your local language. The changes will be applied after
rebooting.
Note:
The keyboard language selection list offers several more regional keyboard
setups to switch with the default English typing. Please refer to the usage F
AQ for
more tips.
58
60
Table of Contents
Default Chapter
2
About the Manual
2
Canadian Department of Communications
2
Declaration of Conformity
2
Table of Contents
3
Chapter 1 Introducing the Motherboard
5
Introduction
5
Features
6
BIOS Firmware
7
Specifications
8
Motherboard Components
9
Chapter 2 Installing the Motherboard
11
Choosing a Computer Case
11
Installing the Motherboard in a Case
11
Checking Jumper Settings
12
Setting Jumpers
12
Checking Jumper Settings
13
Jumper Settings
13
Installing Hardware
14
Installing the Processor
14
Cpu Installation Procedure
15
Installing Memory Modules
16
Expansion Slots
17
Installing Add-On Cards
17
Connecting Optional Devices
19
Installing a Hard Disk Drive/CD-ROM/SATA Hard Drive
22
Connecting I/O Devices
24
Connecting Case Components
25
Front Panel Header
27
Power/Sleep/Message Waiting LED
27
Reset/Power Switch
27
Chapter 3 Using BIOS
29
About the Setup Utility
29
The Standard Configuration
29
Entering the Setup Utility
29
Resetting the Default CMOS Values
30
Using BIOS
31
Advanced Setup
32
Standard CMOS Setup
32
Advanced Chipset Setup
34
Integrated Peripherals
35
Power Management Setup
36
PC Health Status
38
Pci/Pnp Configurations
38
Frequency/Voltage Control
40
Load Default Settings
41
Supervisor Password
41
Exit Without Saving
42
Save & Exit Setup
42
User Password
42
Updating the BIOS
43
Chapter 4 Using the Motherboard Software
45
About the Software DVD-ROM/CD-ROM
45
Auto-Installing under Windows Vista/7
45
Running Setup
46
Manual Installation
48
Utility Software Reference
48
Chapter 5 Setting up AMD SB700 RAID Configuration
49
Setting up a Bootable RAID Array
49
Chapter 6 Setting up Ejiffy Introduction
57
Installation and BIOS Setup
58
Entering Ejiffy
61
Features Icons
62
Usage FAQ
63
Chapter 7 Trouble Shooting
67
Start up Problems During Assembly
67
Start up Problems after Prolong Use
68
Maintenance and Care Tips
68
Basic Troubleshooting Flowchart
69
4
