ECS A785GM-M5 User Manual

17
Installing the Motherboard

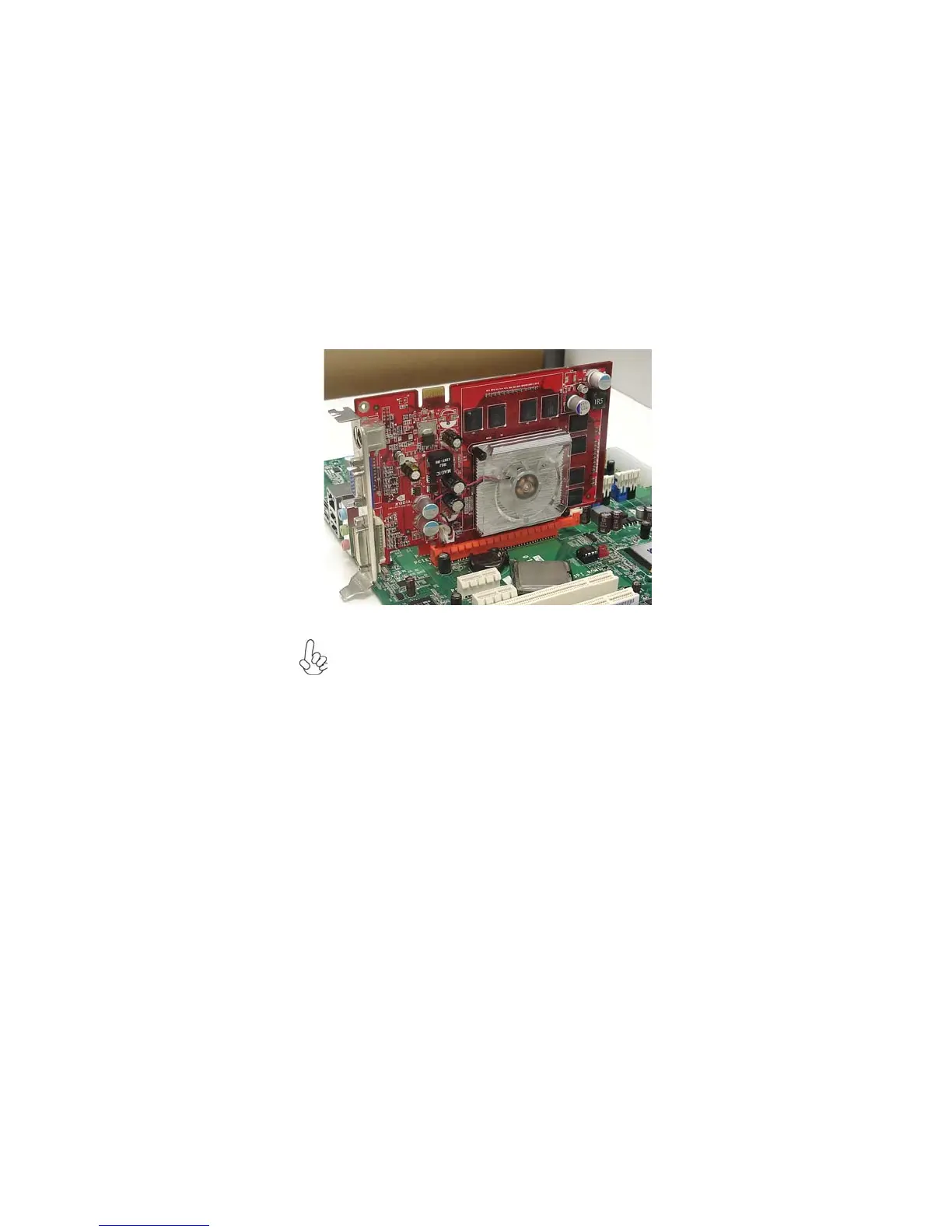

Follow these instructions to install an add-on card:
1 Remove a blanking plate from the system case corresponding to the
slot you are going to use.
2 Install the edge connector of the add-on card into the expansion slot.
Ensure that the edge connector is correctly seated in the slot.
3 Secure the metal bracket of the card to the system case with a screw.
For some add-on cards, for example graphics adapters and network
adapters, you have to install drivers and software before you can
begin using the add-on card.

ECS A785GM-M5 Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
Power fan connector	Yes
Number of SATA connectors	6
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1705
Power source type	ATX
Motherboard chipset	AMD 785G
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
Graphics card	Radeon HD 4200
Maximum graphics card memory	512 MB
RAID levels	0, 1, 10

Weight and Dimensions

Depth	210 mm
Width	244 mm
