ECS A785GM-M5 User Manual

52
Hybrid Graphics
®
Technology Support
Note: SurroundView
TM
provides the power and convenience of multiadapter,
multimonitor support for computers that use a PCI-E based graphics
card in conjunction with ATI integrated graphic processors. And there
are two options: Disabled and PCI-E.
If SurroundView
TM
set to Disabled, and Init Display First set to
OnBoard, SurroundView
TM
will be Enabled by Catalyst Control Center
based on cancel the Enable CrossFire
TM
option.

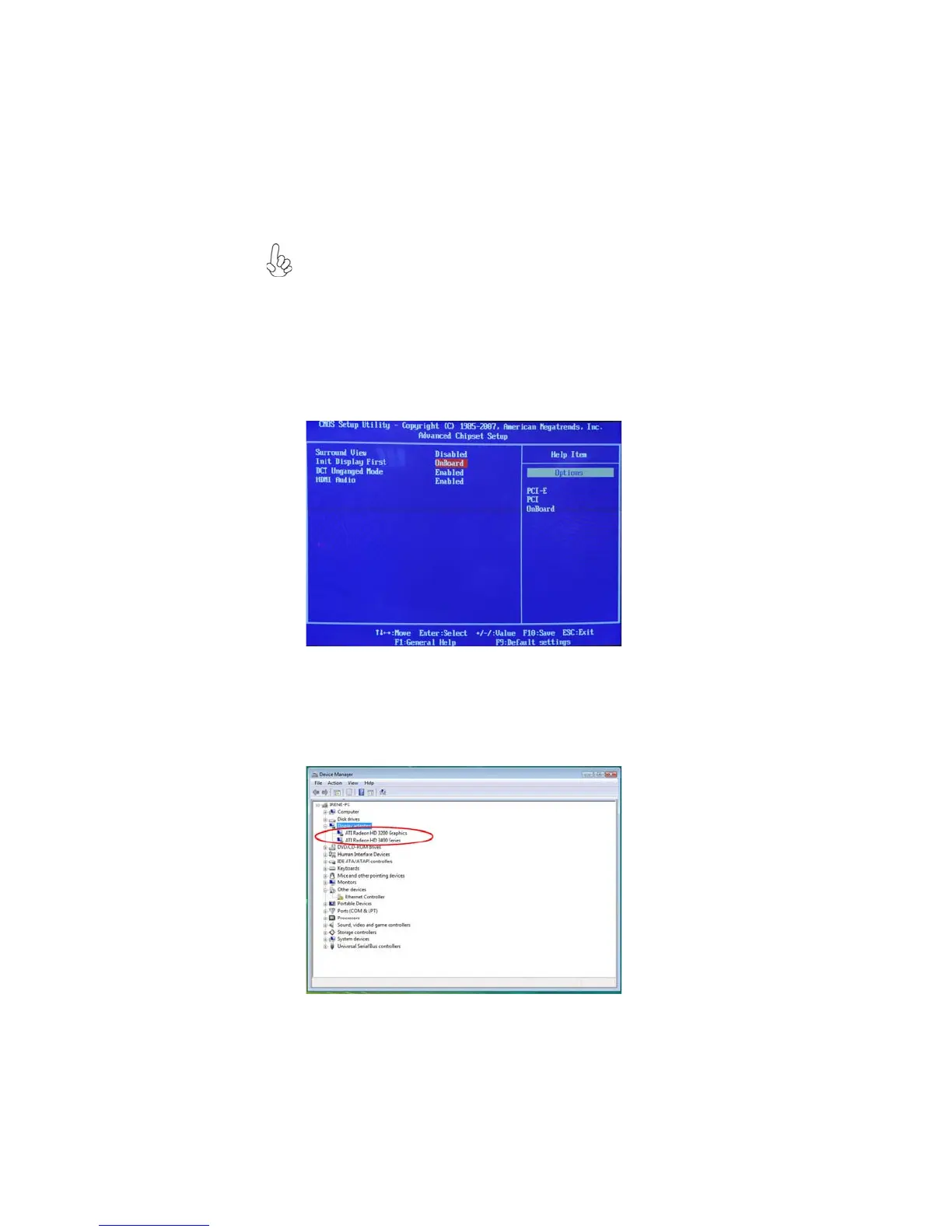

While if display by OnBoard, you must enter the BIOS, set the Init Display First in
Advanced Chipset Setup to OnBoard. Then press F10 to save the configuration and
exit the BIOS. After entering OS, enter Catalyst Control Center to enable CrossFire
TM
.
3. Click with your right mouse button on My Computer, then click the option
Manage and choose the Device Manager, finally, click the Display Adapters. The
following screen appears. Be sure that the external ATI graphics (ATI Radeon HD
3400 Grapics) and Onboard graphics (ATI Radeon HD 3200 Series) are both display-
ing in the Display adapters.

ECS A785GM-M5 Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
Power fan connector	Yes
Number of SATA connectors	6
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1705
Power source type	ATX
Motherboard chipset	AMD 785G
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
Graphics card	Radeon HD 4200
Maximum graphics card memory	512 MB
RAID levels	0, 1, 10

Weight and Dimensions

Depth	210 mm
Width	244 mm
