Setting Up eJIFFY
57

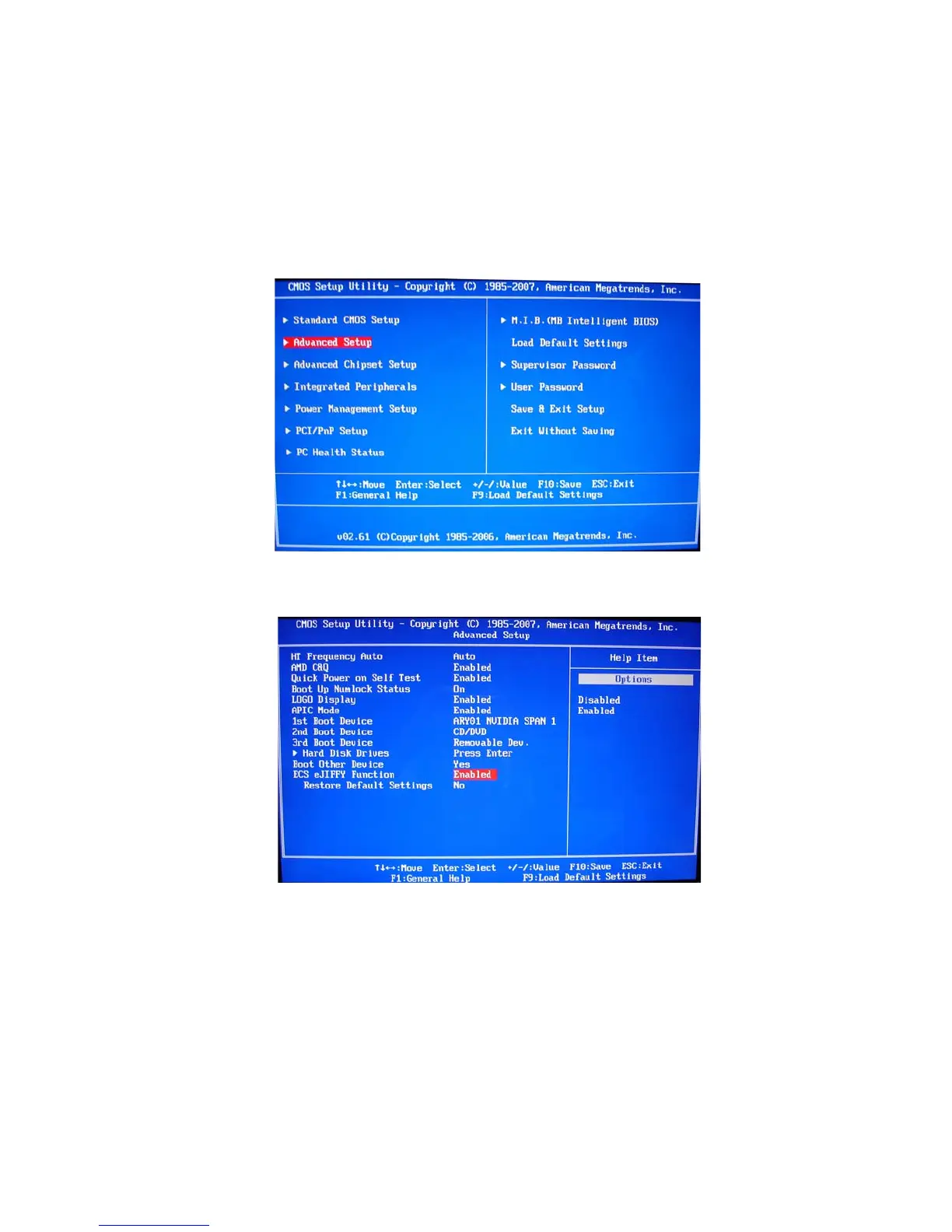

3. Press <DEL> or click the BIOS Setup button on the post screen to enter the BIOS
setup page after boot up.
4. And then enter the Advanced Setup page to enable the item ECS eJIFFY Func-
tion. Press F10 to save the configuration and exit. Restart your computer.
2. Please refer to ECS website for new eJIFFY application updates.
1. eJIFFY is available in SATA/IDE/AHCI mode. It does not support RAID
configuration and the onboard 34-pin floppy drives.
Note:

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ECS A785GM-M5 and is the answer not in the manual?

ECS A785GM-M5 Specifications

General IconGeneral
Number of memory slots2
Maximum internal memory8 GB
Processor socketSocket AM3
Processor manufacturerAMD
Power fan connectorYes
Number of SATA connectors6
USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports1
Firewire (IEEE 1394) ports0
Audio chipVIA VT1705
Power source typeATX
Motherboard chipsetAMD 785G
Audio output channels6.1 channels
Motherboard form factormicro ATX
Graphics cardRadeon HD 4200
Maximum graphics card memory512 MB
RAID levels0, 1, 10
Weight and Dimensions IconWeight and Dimensions
Depth210 mm
Width244 mm
